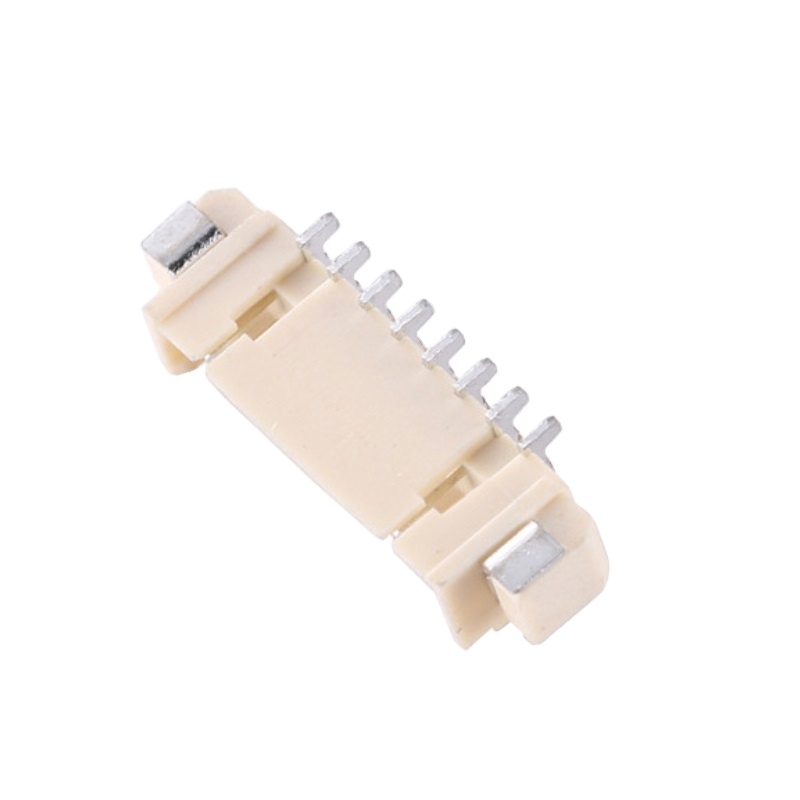

1.25mm Pitch SMT Wafer Connector Wire to Board Connector Custom Postion 2 to 20 Pin

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Model Number:: 1.25T-1-WT-nA

Type:: 1.25mm wafer connector

Place of Origin:: Guangdong, China

Brand:: jinbeili

Packaging:: TAPE AND REEL

Description:: 1.25mm Pitch wafer connector

Current Rating::: 1A

Voltage Rating::: DC/AC 125V

Height::: 2mm

Gender::: Female

Product Description

Product Name :	1.25mm Pitch Wafer Connector
Rating :	125V DC/AC , 1A
Mounting Angle :	Vertical
Position number :	2 to 20 Pins Customizable as buyer's request
Actuation Type:	ZIF
Applicable Cable :	0.3mm flat Proper cable
Termination Style :	SMD / SMT
Housing:	LCP
Contact Material :	Phosphor Bronze with Gold Plating
Insulation Resistance:	1000MΩ（MIN）
Contact Resistance :	0.02Ω（MAX）
Dielectric Withstanding Voltage:	500V AC for 1 min
Operation Temperature Range :	-25°C ~ +85°C

FEATURES :

1, Position numbers customizable

2, Height Customizable3, Meet ROHS and REACH standards;4, 125V , 1A

5, SMT6 , Vertical

APPLICATIONS :

1 , Notebook computers

2, printers

3, PDAs

4, , digital cameras

5, Computer/peripherals

6, , Testing / instrumentation

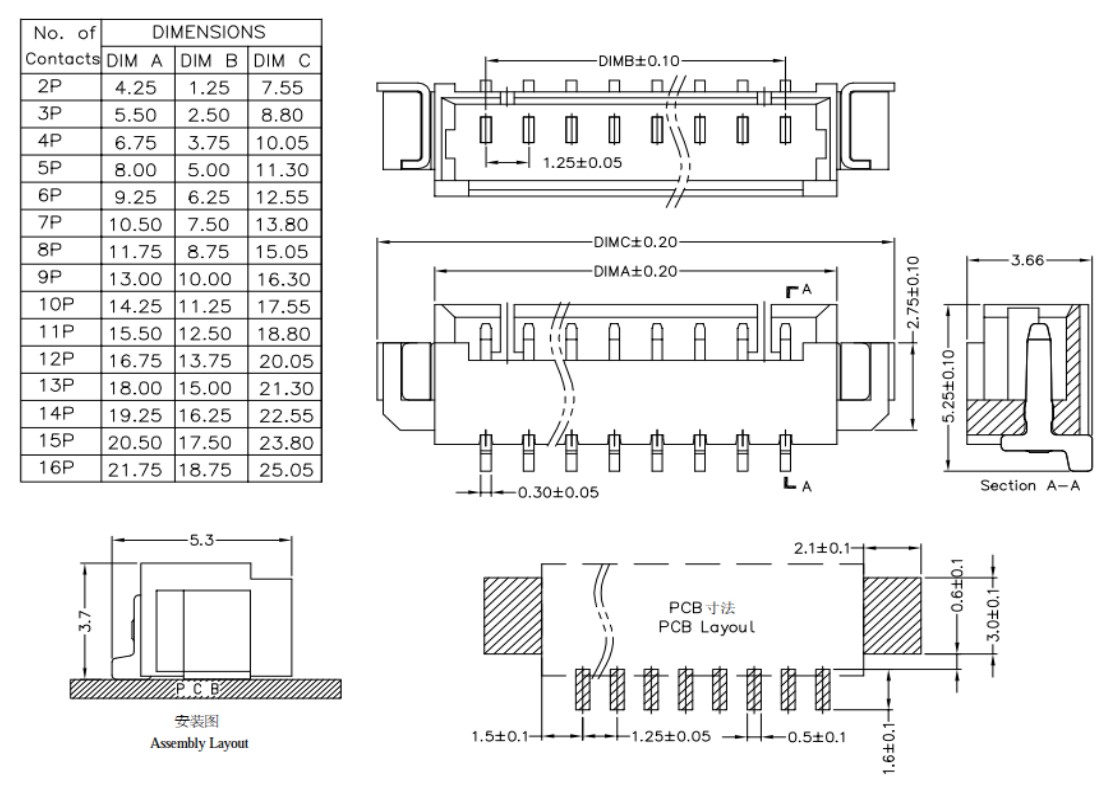

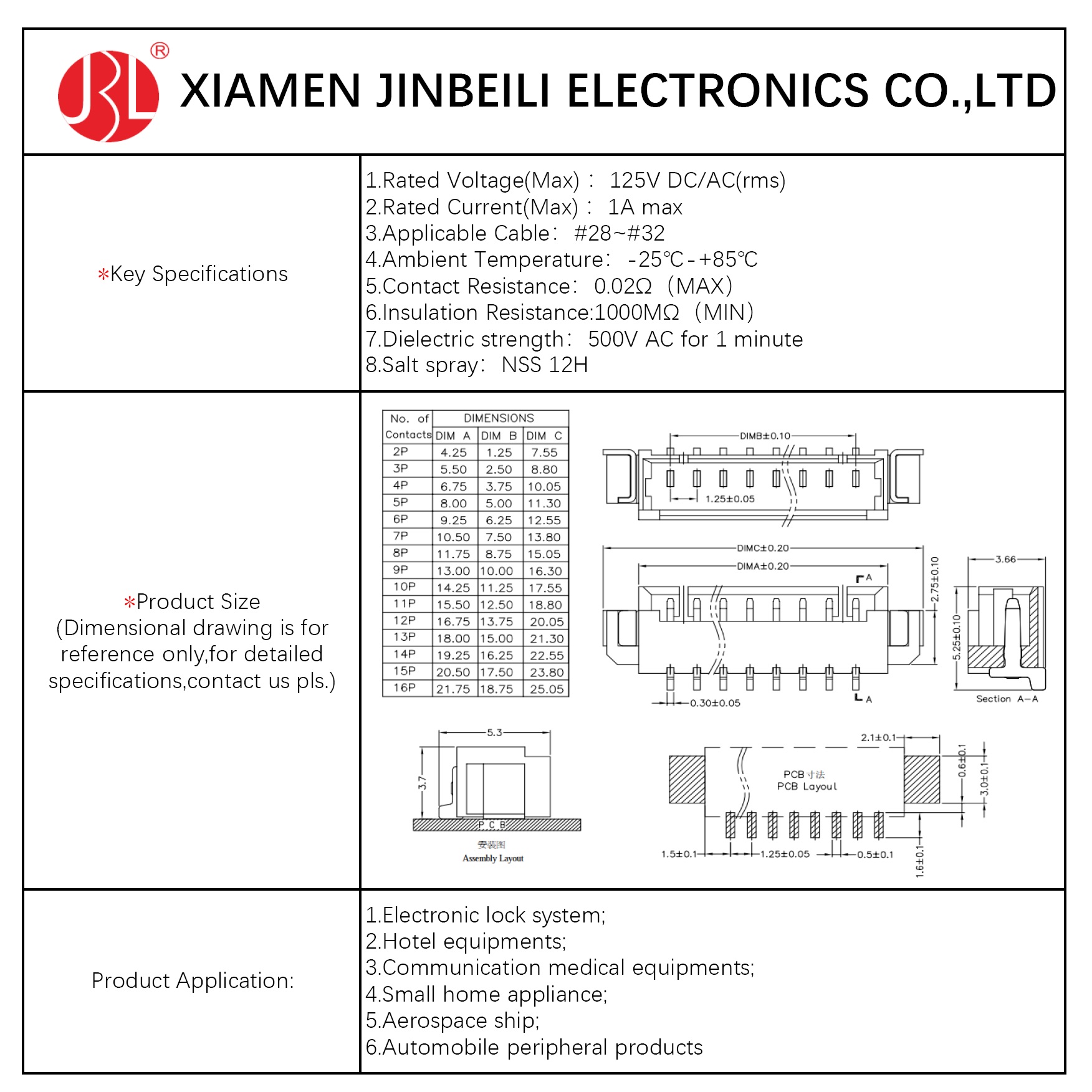

Spec Sheets

If you need original PDF Format data sheet to refer to , please contact us

R&D Development

Our engineer design and develop products by software and 3D printer to provide a precision pattern

Tooling

we design tools for moduling, including metal cutting, surface processing to provide high quality products in a short time

Stampling

It can stample materials such as stainless steel, aluminum, and brass in diameters from 2mm to 30mm

Plastic Molding

All the plastic parts of switches are custom in our factory.Molding process materials includes: thermoplastic, silicone and elastomer

Automate Assembly Line

most of products are assembled by full automated , only a little by manual, for high efficiency. We have advanced facilities to assemble over 100000 pcs products per day

Testing & Inspection

We strictly test each product by this reflow soldering machine to test if the product is stable and high temperature resistance

Xiamen Jinbeili Electronicsl Co.,ltd specializes in the manufacture of connector parts, DC jack connectors and switches. The main products are computer high-speed USB connectors, tact switches, toggle switches, pushbutton switches, headphone sockets, power sockets, etc.

Our company was founded in 1999 and has more than 300 employees with 2 plants in Dongguan, Guangdong Province. Our products are widely used in electrical appliances, industrial equipment, meters, ventilation systems and fitness equipment. Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic products comply with RoHS and REACH environmental protection requirements.

Our company has passed ISO9001 and IATF 16949 quality management system certification. High-quality products, competitive prices and satisfactory after-sales service will win customer satisfaction and market share. Now that our products are welcomed by Europe, America and Southeast Asia, we will continue to develop in the right direction and continue to develop the jinbieli connector brand, and improve the quality of products and services to meet your specific needs.
