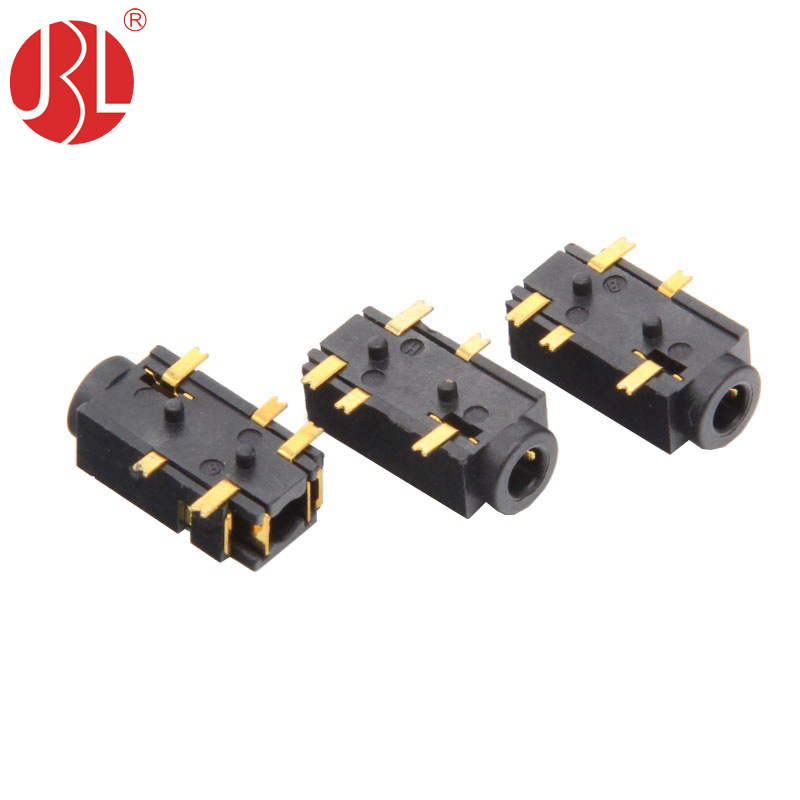

The 2.5mm SMD right-angle audio jack is a compact and versatile connector designed for use in phones and other portable devices. It features a 4-pole TRRS (Tip, Ring, Ring, Sleeve) configuration, which allows for the transmission of both audio signals and additional functions such as microphone input or control signals.

This jack serves as a suitable alternative to the Adam Tech audio socket ASJ-103-J-T/R, providing similar functionality and performance in a slightly different form factor. The right-angle design allows for easier installation in space-constrained environments, while the surface-mount technology (SMD) ensures a secure and reliable connection.

With its 2.5mm diameter, this jack is ideal for use in applications where space is limited, such as smartphones, tablets, and other compact electronic devices. Its TRRS configuration supports a wide range of audio and control functions, making it a versatile and essential component for modern electronic devices.

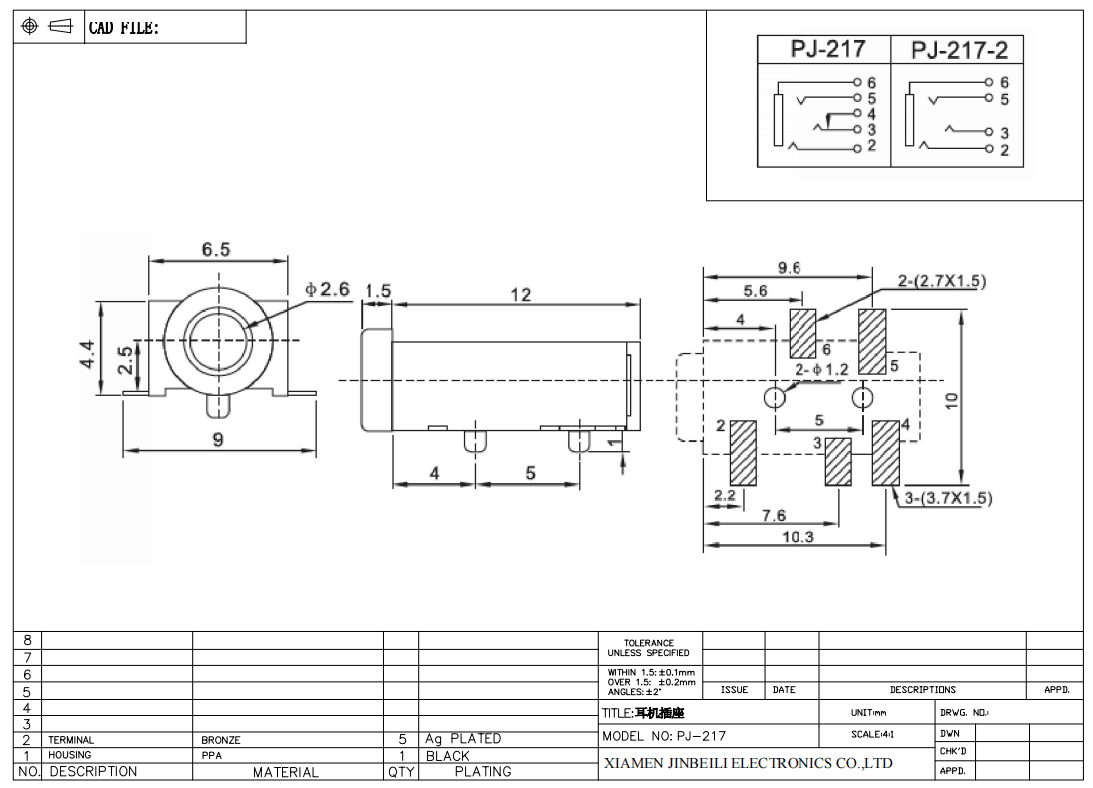

Datasheets :
