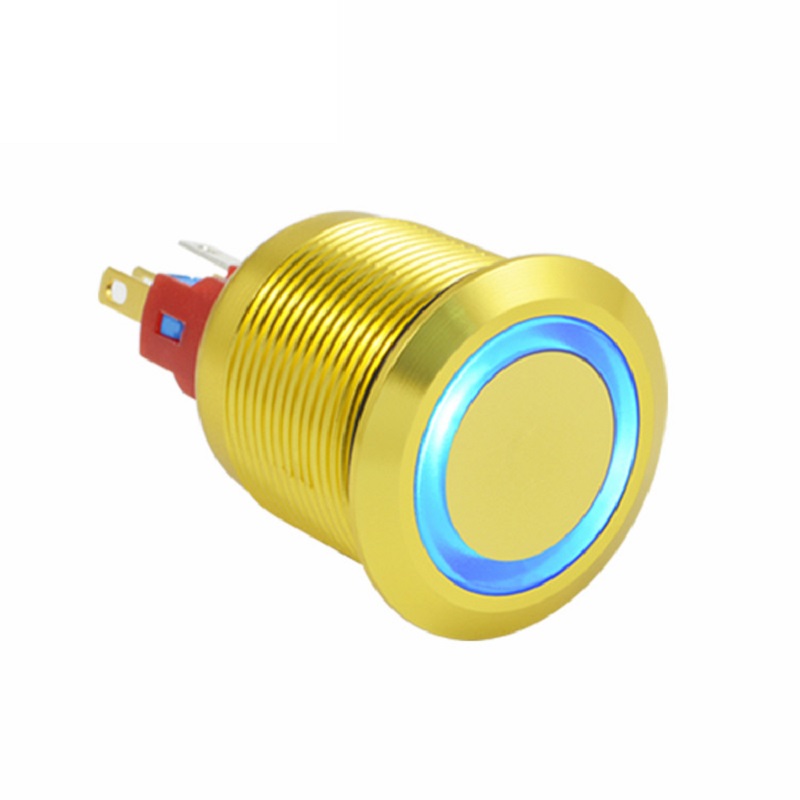

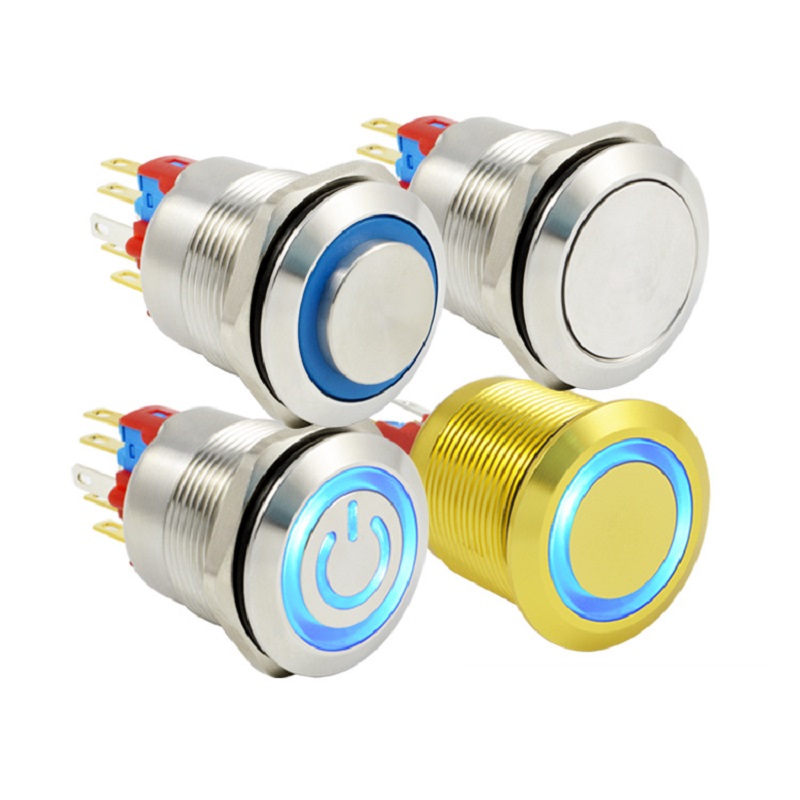

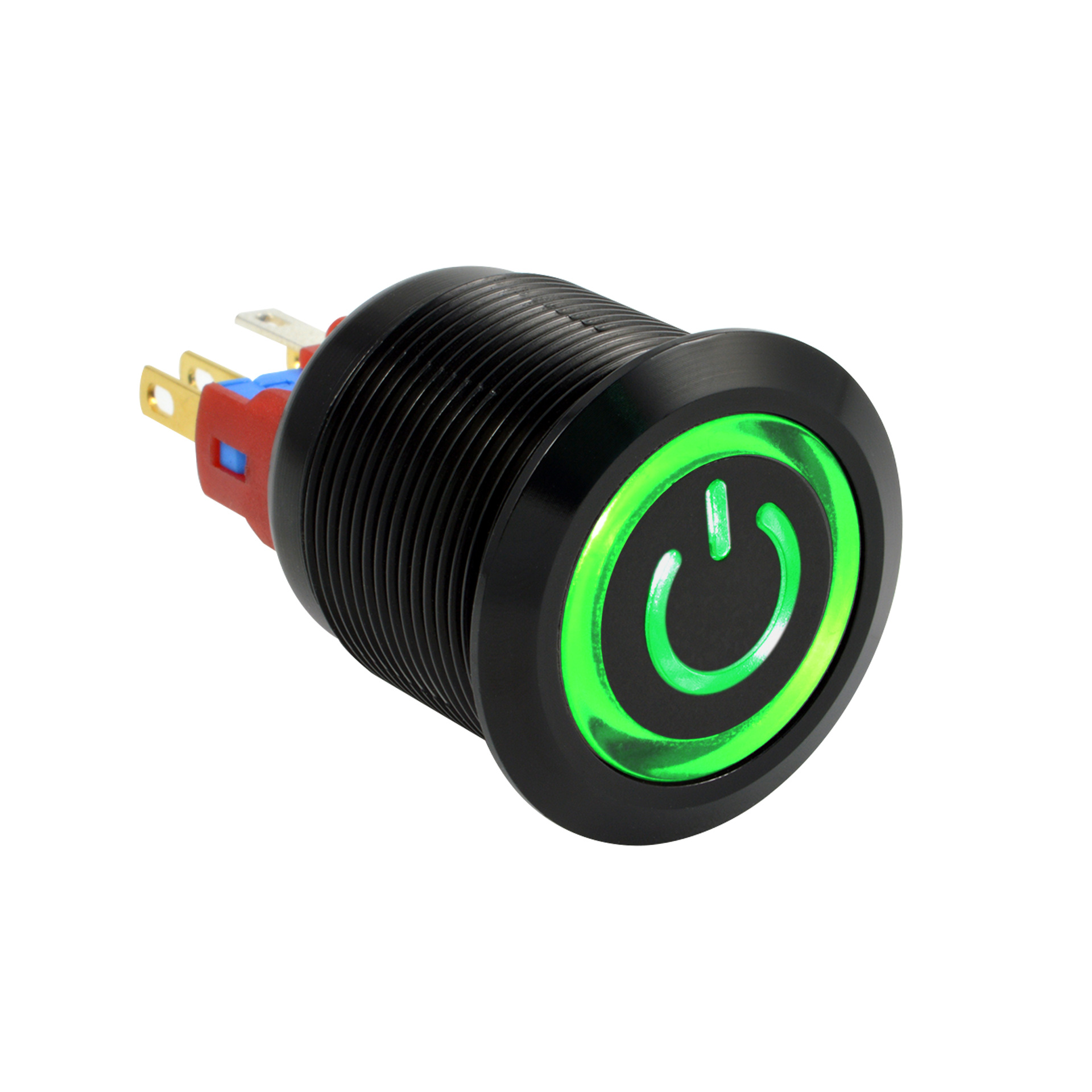

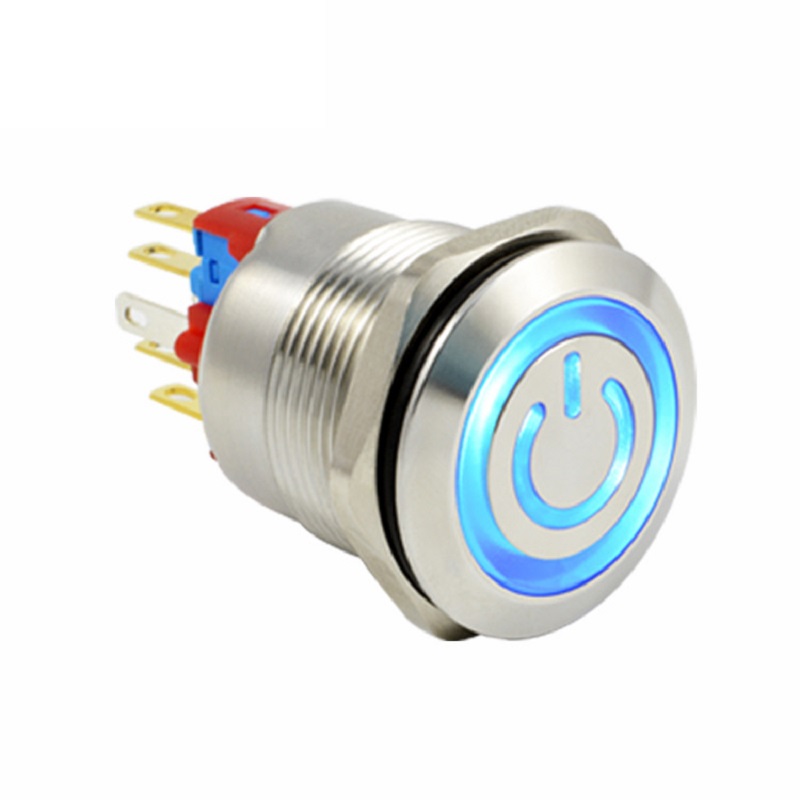

22mm Illuminated Metal Push Button Switch Stainless Steel IP65 Waterproof DC36V 2A 250VAC 5A PLM22-12M-F-NNN-S0

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: jinbeili

Model Number:: PLM22-12M-F-NNN-S0

Type:: switch push button

Application:: PCB

Supplier Type:: Original manufacturer

Media Available:: datasheet

Brand:: Illuminated Push button switch

Features:: stainless steel

Mounting Feature:: Back or Front of Panel

Size / Dimension:: OD 22mm

Color:: Multiple colors

Operating Temperature:: -20 degree to 70 degrees

Mounting Type:: Panel Mount

Switch Function:: Latching or Momentary

Current Rating (Amps):: DC 36V

Voltage Rating – AC:: 250

Voltage Rating – DC:: 36

Voltage:: 36V

Voltage Rating:: 36V

Voltage – Switching AC:: 250

Voltage – Switching DC:: 36

Voltage – Supply:: 8 ~ 32VDC

Display Mode:: Not Applicable

LED Color:: Red – Green – Blue

Rated Voltage:: 36V

D/C:: PLM22-12M-F-NNN-S0

Panel Cut-Out Diameter:: 22 mm

LED Color ::: Mutiple Options

Cap Symbol ::: Customizable

Voltage Rating::: 250V AC/36V DC

Current Rating::: 5A/2A

Custom Fuction ::: Momentary Switch or Latching Switch

Product Description

Product Name :	Metal Push Button Switch
Switch Rating :	250V AC/36V DC , 5A/2A
Panel Cut out Diameter :	22 mm
Fuction :	Latching or momentary
Travel :	1.5mm±0.5mm
Contact Resistance :	50m ohm max
Insulation Resistance:	100M ohm min
Dielectric Strength :	1000VAC for 1 min
Operating Force :	400gf±150gf
Operating Life :	200,000 cycles / Customizable
Operation Temperature Range :	-20°C ~ +85°C

FEATURES :

1, 200000 cycle life or customizable2, Multi LED Options3, Symbol customizable4, Self locking or Non locking Options5 , Terminal & Travel customizable

6,Latching or momentary

APPLICATIONS :

1 , Electronic lock system

2, Hotel equipment

3, Medical equipment

4, Smart Home Appliance

5, Aerospace ship

6, , Automobile peripheral products

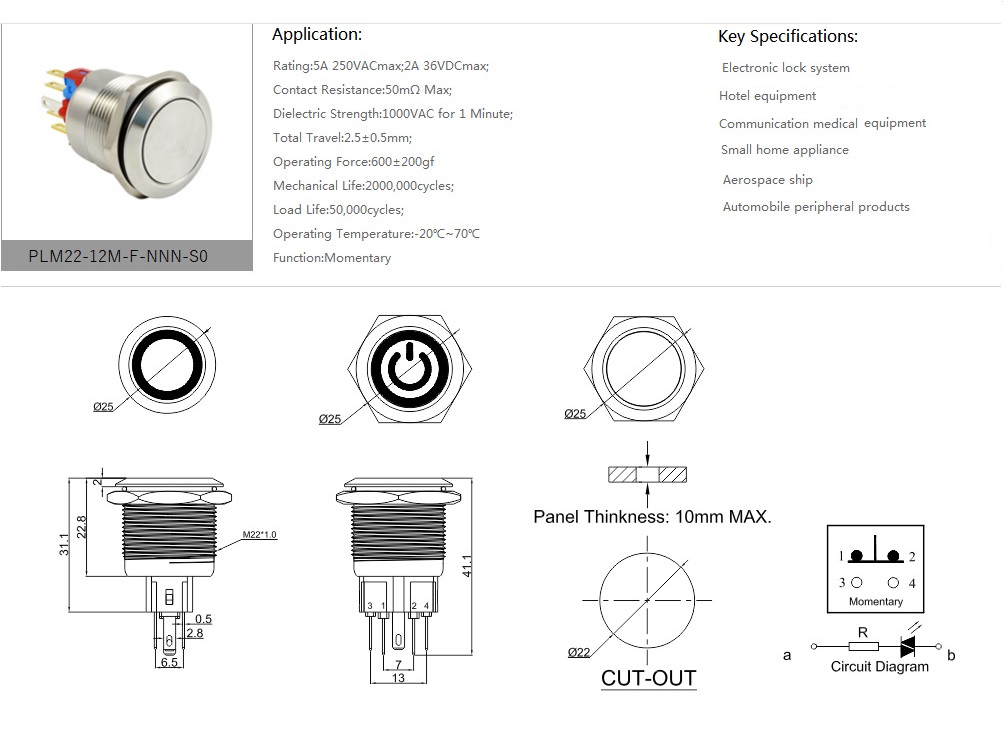

Spec Sheets

If you need original PDF Format data sheet to refer to , please contact us

Customization

PRODUCT CUSTOMIZATION

With more than 20 years of expriences and complete facilites , we are committed to providing a wide range of switches to the
worldwide marketplace , and capable of customizing products in different colors , materials , marking , finishes and shapes to meet customers specific needs.

R&D Development

Our engineer design and develop products by software and 3D printer to provide a precision pattern

Tooling

we design tools for moduling, including metal cutting, surface processing to provide high quality products in a short time

Stampling

It can stample materials such as stainless steel, aluminum, and brass in diameters from 2mm to 30mm

Plastic Molding

All the plastic parts of switches are custom in our factory.Molding process materials includes: thermoplastic, silicone and elastomer

Automate Assembly Line

most of products are assembled by full automated , only a little by manual, for high efficiency. We have advanced facilities to assemble over 100000 pcs products per day

Testing & Inspection

We strictly test each product by this reflow soldering machine to test if the product is stable and high temperature resistance

Xiamen Jinbeili Electronicsl Co.,ltd specializes in the manufacture of connector parts, DC jack connectors and switches. The main products are computer high-speed USB connectors, tact switches, toggle switches, pushbutton switches, headphone sockets, power sockets, etc.

Our company was founded in 1999 and has more than 300 employees with 2 plants in Dongguan, Guangdong Province. Our products are widely used in electrical appliances, industrial equipment, meters, ventilation systems and fitness equipment. Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic products comply with RoHS and REACH environmental protection requirements.
