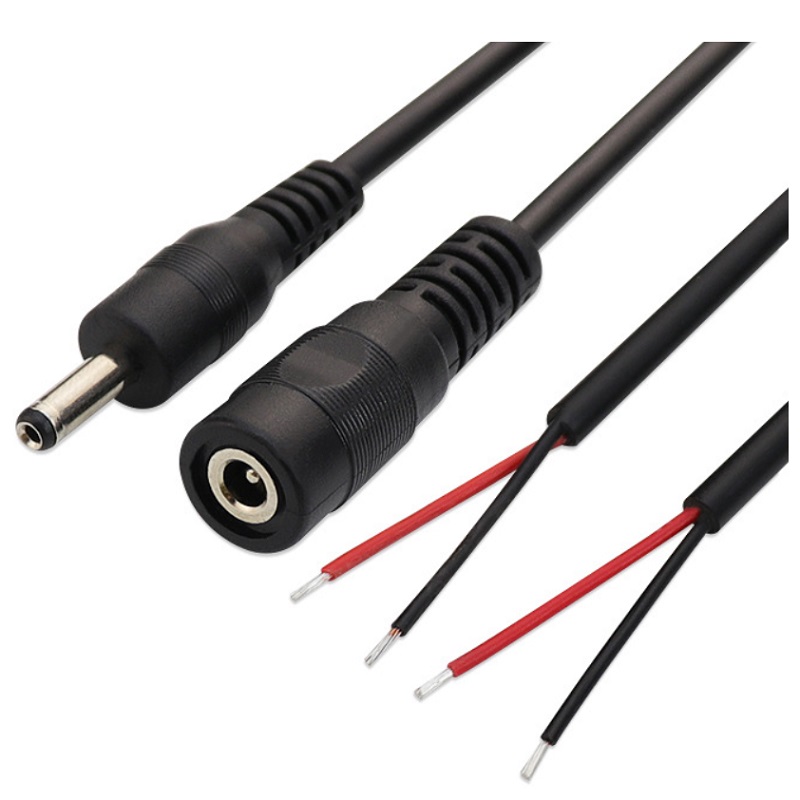

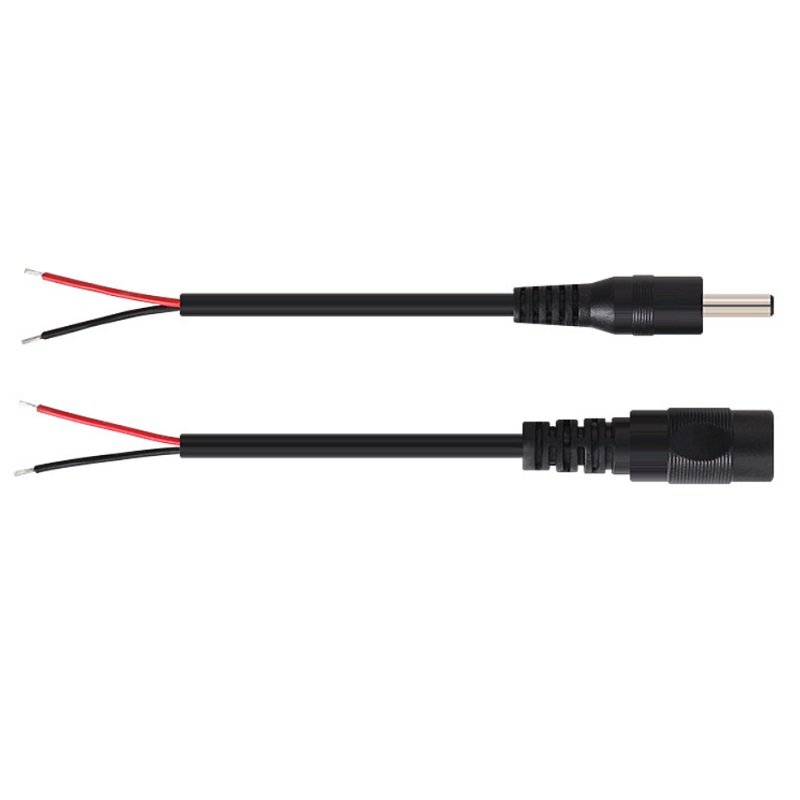

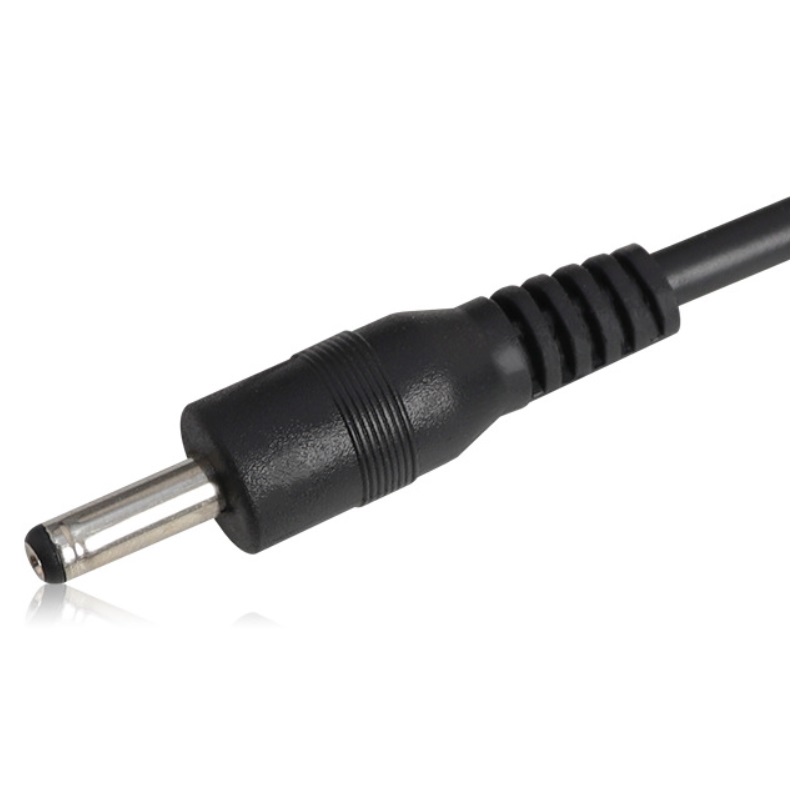

3.5×1.35mm male barrel connectors with a 10cm DC plug male connector wire with two leads stripped and tinned
Overview
Quick Details
- Model Number:
-
DC-35135-TV200
- Type:
-
dc jack
- Place of Origin:
-
China
- Brand:
-
JINBEILI
- Application:
-
LED concentrated lighting
- Interface Type:
-
sokiet
- Packaging:
-
PE Bag
- Color:
-
Black
- Material:
-
PVC
- Media Available:
-
JINBEILI DC jack
- Description:
-
JINBEILI
- Specifications:
-
3.5×1.35
- Termination:
-
2PIN
- Contact Termination:
-
2
- Number of Positions:
-
2
- Pitch:
-
/
- Number of Rows:
-
/
- Mounting Type:
-
socket
- Connector Usage:
-
:LED concentrated lighting
- Number of Columns:
-
/
- Gender:
-
:LED concentrated lighting
- Plug/Mating Plug Diameter:
-
3.5×1.35mm
- Number of Positions/Contacts:
-
2
- Current Rating (Amps):
-
2A 5A
- Voltage Rating:
-
5V/24V
- Diameter – Outside:
-
3.5×1.35mm
- Contact Size:
-
3.5×1.35mm
- Center Contact Plating:
-
SLIVER
- Maximum Working Height:
-
/
- Recommended Working Height:
-
/
- Minimum Working Height:
-
/
- Size / Dimension:
-
3.5×1.35mm
- Housing Finish:
-
sliver
- Voltage:
-
5V/24V
- Terminal Block Type:
-
/
- Number of Circuits:
-
/
- Current:
-
2A-5A
- Board Size:
-
/
- Approved Countries:
-
China
- Head Style:
-
socket
- D/C:
-
DC-35135-TV200 with cable
- size:
-
18awg/20awg/22awg/24awg
- Supplier Type:
-
Original manufacturer
- Pin or Socket:
-
Pin
Give you a better reason to choose us
1.The height of the switch handle can be customized according to customer needs
2.Meet ROHS and REACH standards And Small orders accepted
3.We have a professional design, development and production team of more than 200 people
Our advantages are more than these, please check below……………
Product Description
Details Images

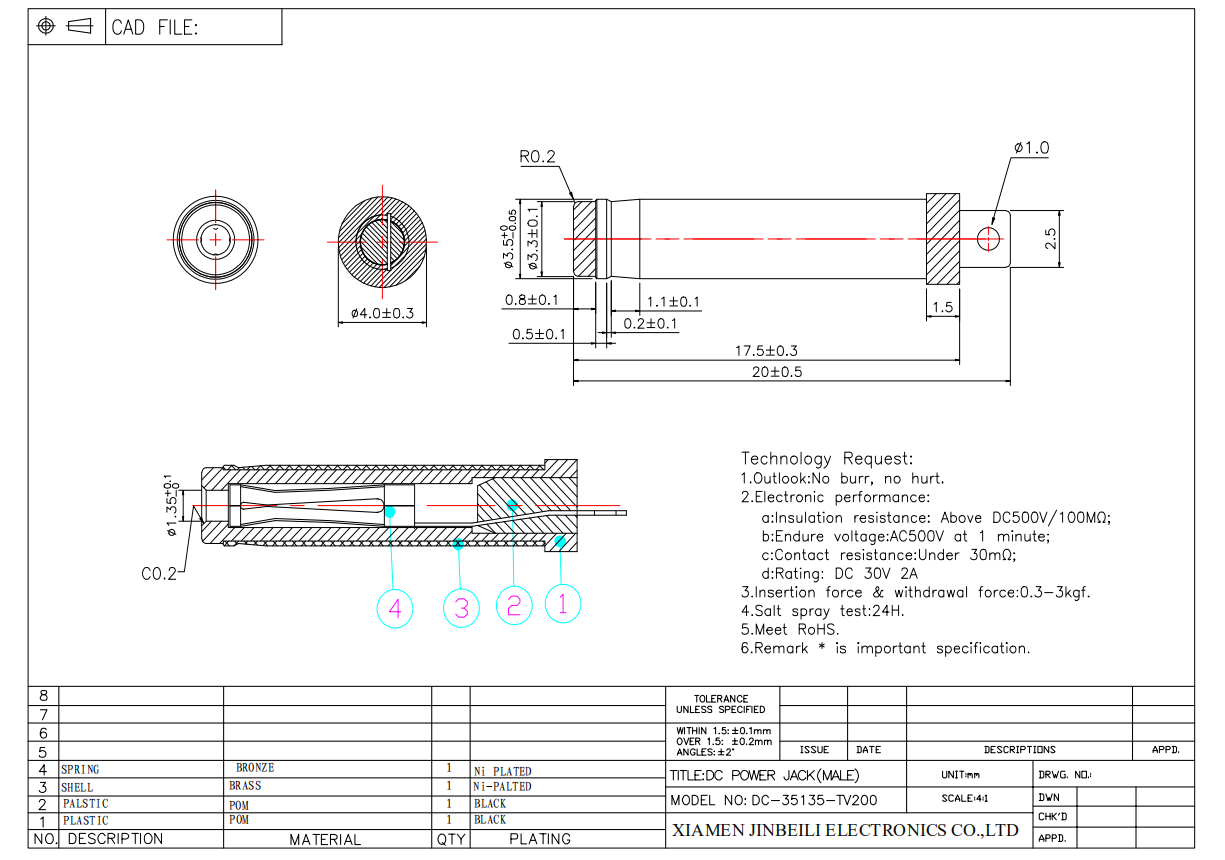

Product parameter
Name:DC-35135-TV200 with cable
Material:PVC Pin:2pin Voltage:5V/24V
sample:free
Usage:LED concentrated lighting, LED wall lighting, outdoor lights
current:2A-5A power:10-50w
color:Black/White wire size:18awg/20awg/22awg/24awg
Type:DC
Application:Automotive
Gender:Male Pins:1P Pins:2P
If you need customized products, please contact me
If you need original PDF format date or other product details,pls contact us
Email:sales06@jblec.com
TEL:+86-592-7390769
Web:www.jblec.com
The way our products are used
Manual welding:
Temperature:360°c max
Time：25 MAX
Number of rewelding：25 time
wave soldering
Preheating temperature：130°c
Preheating time：1.3min
Welding temperature：250°c max
Welding time：2-3s
Chain speed(transfer speed):1300mm/min
Reflow soldering Surface of product temperature
Automatic flow soldering(for the product of SMT,type solder according to the following conditions
