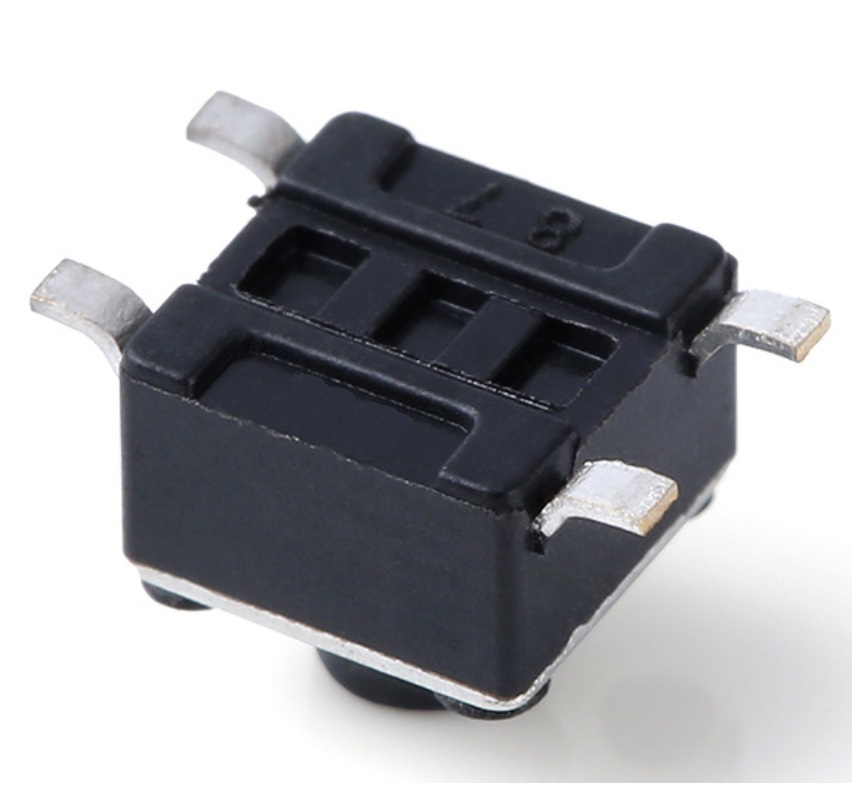

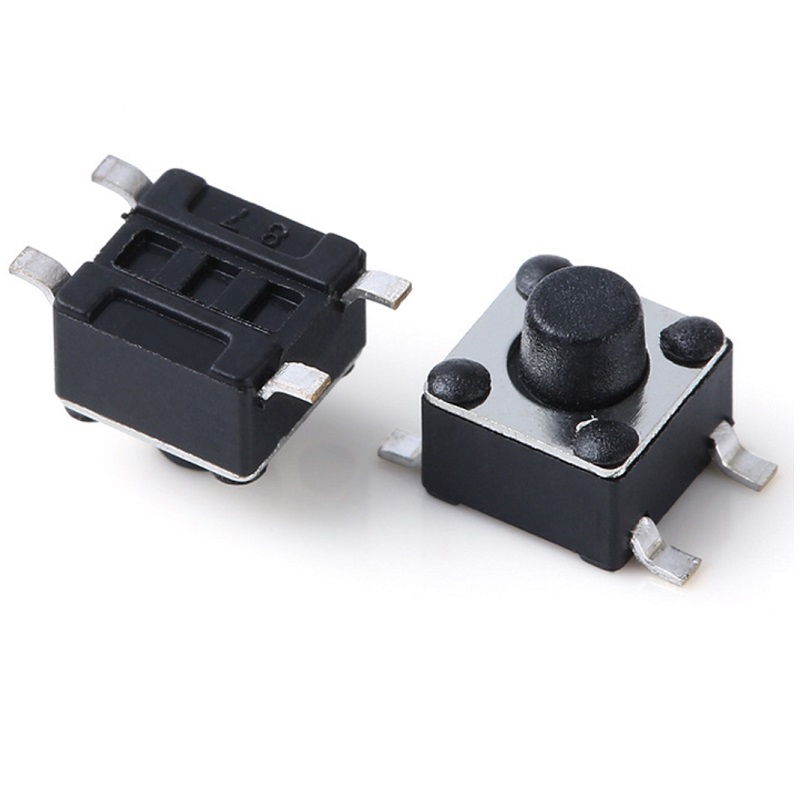

4.5×4.5 interruptor tactil SMD DC 12V 0.05A pulsador tactil PTS 647 SK38 SMTR2 LFS PTS 647 SM38 SMTR2 LFS TL3305AF260QG
Overview
Quick Details
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
jinbeili
- Model Number:
-
TS-06204
- Type:
-
SWITCH TACTILE
- Application:
-
consumer electronics / Computer / audio visual
- Supplier Type:
-
Original manufacturer
- Cross Reference:
-
PTS 647 SK38 SMTR2 LFS, PTS 647 SM38 SMTR2 LFS, TL3305AF260QG, TL3305AF160QG, TL3305BF260QG, TL3305CF260QG, PTS 647 SK70 SMTR2 LFS, PTS 647 SM70 SMTR2 LFS, PTS 647 SN70 SMTR2 LFS, PTS 647 SN50 SMTR2 LFS, PTS 647 SM50 SMTR2 LFS, PTS 647 SK50 SMTR2 LFS, PTS647SN38SMTR2LFS, TL3305BF160QG, TL3305CF160QG
- Media Available:
-
datasheet, Photo, EDA/CAD Models
- Brand:
-
tact switch
- Features:
-
SPST
- Mounting Feature:
-
Back or Front of Panel
- Size / Dimension:
-
customizable
- Color:
-
BLACK
- Material:
-
Nylon
- Operating Temperature:
-
-30°C ~ +85°C
- Mounting Type:
-
Soldering, SMT
- Switch Function:
-
DIP SMT
- Current Rating (Amps):
-
50mA
- Voltage Rating – AC:
-
/
- Voltage Rating – DC:
-
12V
- Voltage:
-
12V
- Packaging:
-
NO
- Voltage Rating:
-
12V
- Illumination Voltage (Nominal):
-
12V
- Voltage – Switching AC:
-
NO
- Voltage – Switching DC:
-
12V
- Power – Rated:
-
0.6W
- Voltage – Supply:
-
8.5 ~ 30VDC
- Display Mode:
-
Full color
- LED Color:
-
/
- Rated Voltage:
-
12V
- Current – Switching:
-
50mA DC
- D/C:
-
TS-06204
- Operating Force::
-
160±40 gf / Customizable
- Operating Life ::
-
100000 cyles / Customizable
- Dielectric Strength::
-
AC 250V for 1min
Product Description
|
Product Name :
|
Pushbutton Switch
|
|
Switch Rating :
|
DC 12V , 50mA
|
|
Fuction :
|
SPST
|
|
Travel :
|
Customizable
|
|
Timing:
|
Non-shorting
|
|
Contact Resistance :
|
100mΩ Max
|
|
Insulation Resistance:
|
100MΩ Min
|
|
Dielectric Strength :
|
AC 250V for 1min
|
|
Operating Force :
|
160±40 gf / Customizable
|
|
Operating Life :
|
100,000 cycles / Customizable
|
|
Operation Temperature Range :
|
-40°C ~ +85°C
|
FEATURES :
1, 100000 cycle life or customizable2, Meet ROHS and REACH standards;3, Self lock or Non lock pushbutton switch4, Terminal & Travel customizable5 , SPST
6, SMT
APPLICATIONS :
1 , Home Appliance
2, Consumer electronics
3, Medical equipment
4, Electronic toys
5, Computer/peripherals
6, , Testing / instrumentation
Spec Sheets
If you need original PDF Format data sheet to refer to , please contact us
Customization
PRODUCT CUSTOMIZATION
R&D Development
Our engineer design and develop products by software and 3D printer to provide a precision pattern
Tooling
jinbeili design tools for moduling, including metal cutting, surface processing to provide high quality products in a short time
Stampling
It can stample materials such as stainless steel, aluminum, and brass in diameters from 2mm to 30mm
Plastic Molding
All the plastic parts of switches are custom in our factory.Molding process materials includes: thermoplastic, silicone and elastomer
Automate Assembly Line
most of products are assembled by full automated , only a little by manual, for high efficiency. We have advanced facilities to assemble over 100000 pcs products per day
Testing & Inspection
We strictly test each product by this reflow soldering machine to test if the product is stable and high temperature resistance
