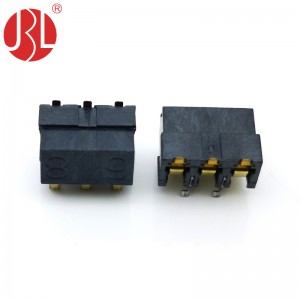

BC-0331-68 Spring Battery Contact Connector 3 Pin SMD SMT Right Angle
Product Descriptions :
Product name : Spring battery contact
Features : surface mount, right angle
Au Plating : 3-5um / customization available
Power : DC50V 0.5A
Contact numbers : 3
Contact Resistance: 30mΩ
Insulation Resistance: 500MΩ
Dielectric Withstanding Voltage: 100VAC
Durability: 10,000 Cycle
Insertion Force: 5N to 20N
Extraction Force: 8N to 20N
Operating temperature range: -20°C~+85°C
Recommended IR Reflow(Wave Soldering) Temperature: 260°C
Packaging : tape and reel

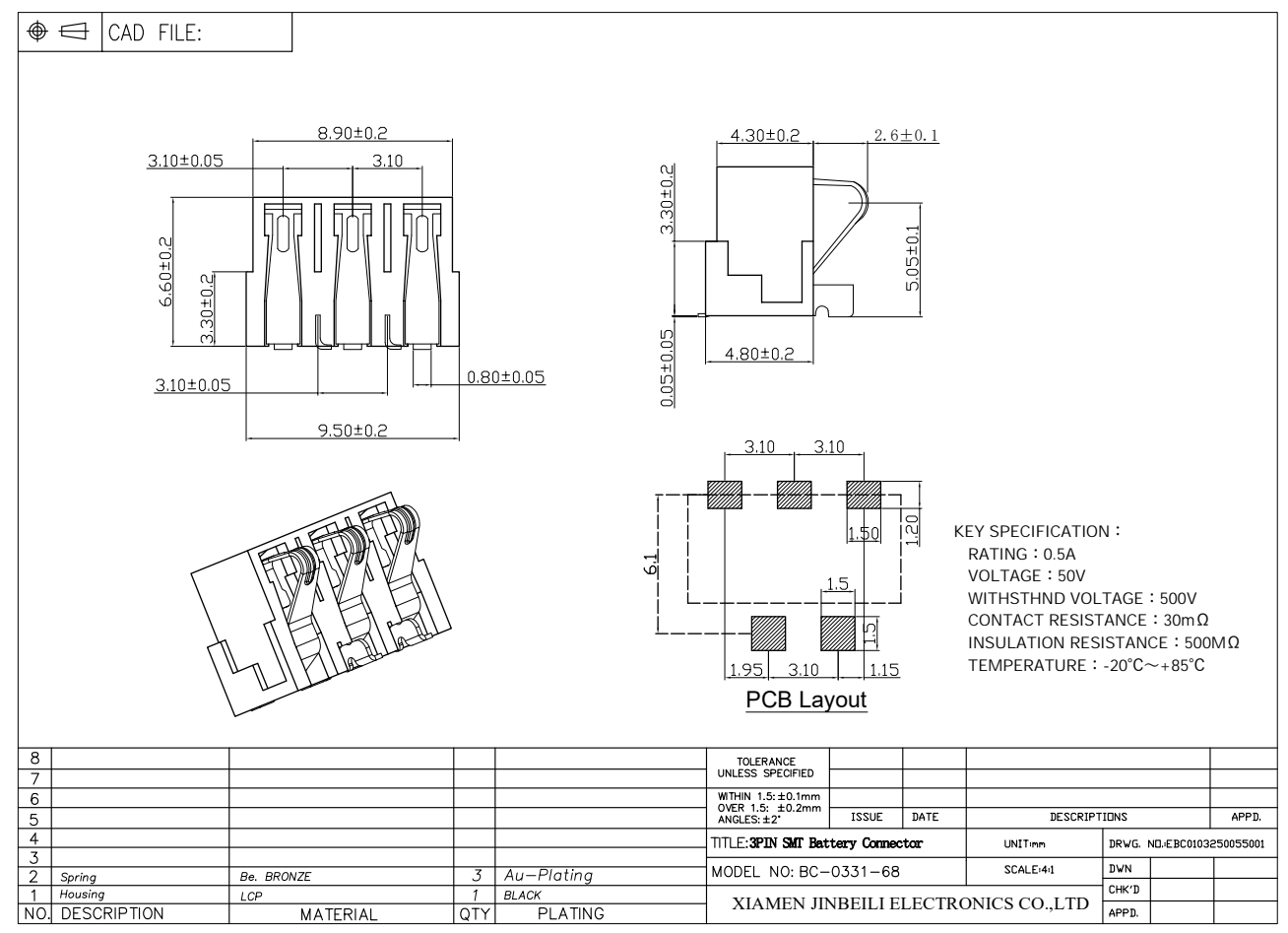

Datasheets :
