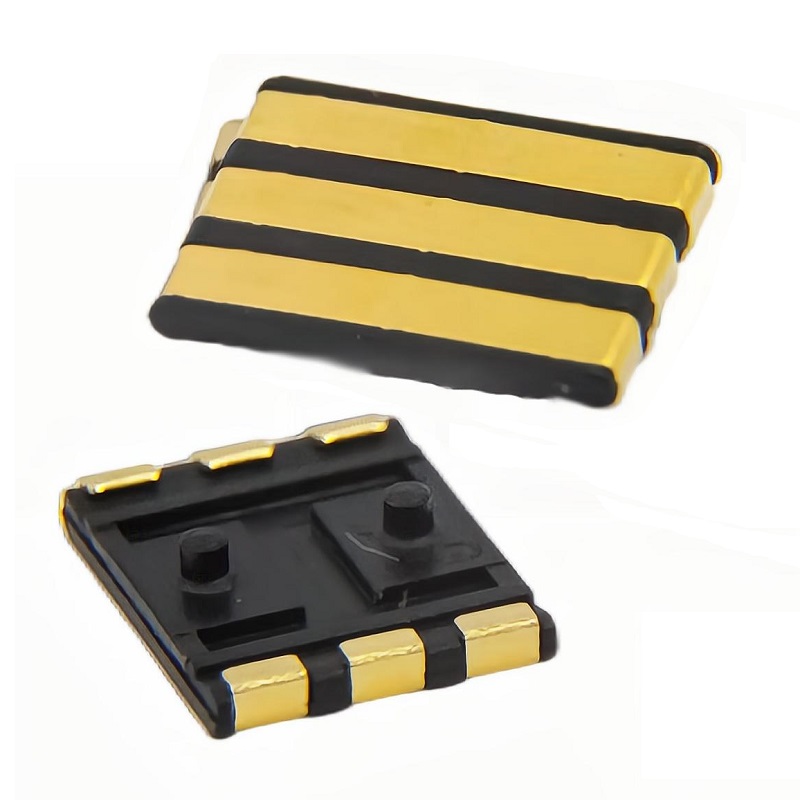

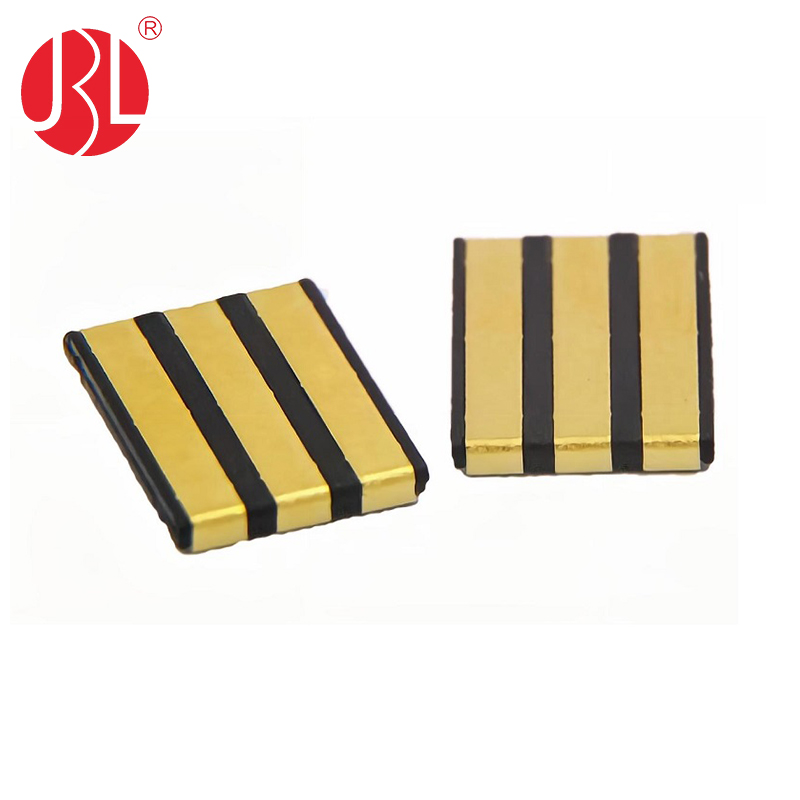

BC-14-3PD127-1 Spring Battery Connector 3 Position SMD

Short Description:

BC-14-3PD127-1 Spring Loaded Battery Contact Connector 3Pos SMD Vertical 2.54mm Pitch


Product Detail

Product Tags

Product Descriptions :

Product name : Spring battery contact

Features : surface mount, vertical

Au Plating : 3-5um / customization available

Power : DC50V 0.5A

Contact numbers : 3

Contact Resistance: 30mΩ

Insulation Resistance: 500MΩ

Dielectric Withstanding Voltage: 100VAC

Durability: 10,000 Cycle

Insertion Force: 5N to 20N

Extraction Force: 8N to 20N

Operating temperature range: -20°C~+85°C

Recommended IR Reflow(Wave Soldering) Temperature: 260°C

Packaging : tape and reel

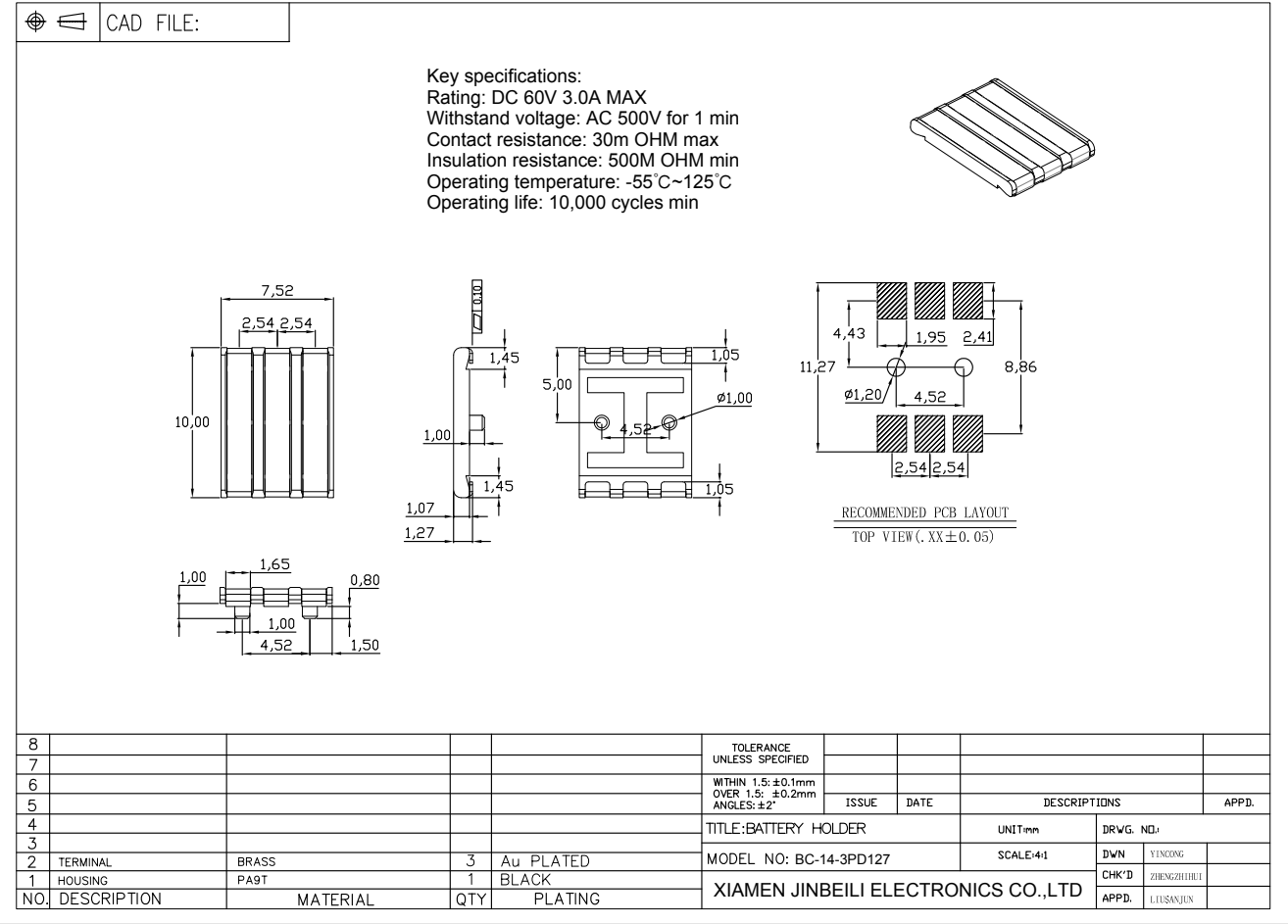

Datasheets :

BC-14-3PD127-1 (1)
