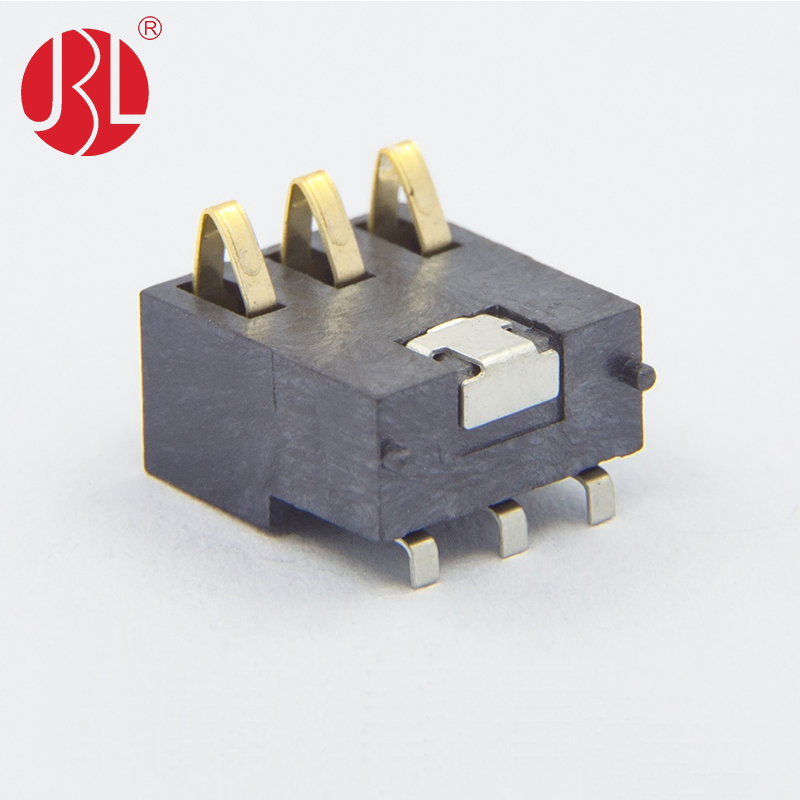

The Spring Battery Contact Connector is a reliable and versatile component designed for surface mount technology (SMT) applications. It features a 2.5mm pitch and 3 positions, making it suitable for a range of battery connection needs. The connector offers a right-angle design, which allows for efficient space utilization and easy installation in compact devices.

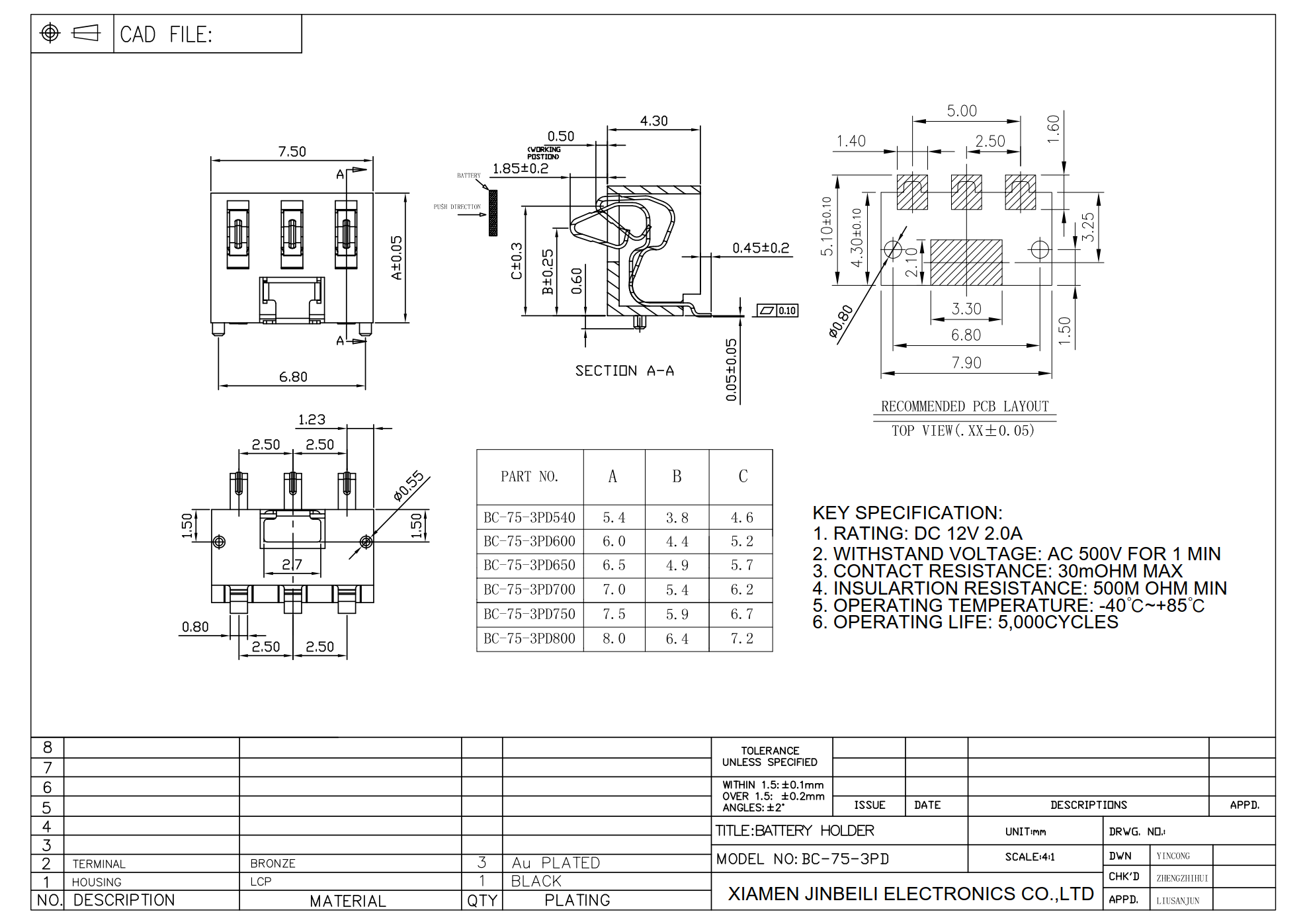

With multiple housing height options ranging from 5.4mm to 8.0mm, and contact height options from 3.8mm to 6.4mm, this connector provides flexibility to fit various design requirements. It is capable of handling DC12V with a current rating of 2A, ensuring robust performance in a wide array of electronic devices. Here are the variants : BC-75-3PD540, BC-75-3PD600, BC-75-3PD650, BC-75-3PD700, BC-75-3PD750, BC-75-3PD800,

The spring contacts ensure a secure and reliable connection, providing excellent electrical conductivity and durability. Overall, this Spring Battery Contact Connector is an ideal choice for engineers seeking a high-quality, customizable solution for their battery connection needs.
