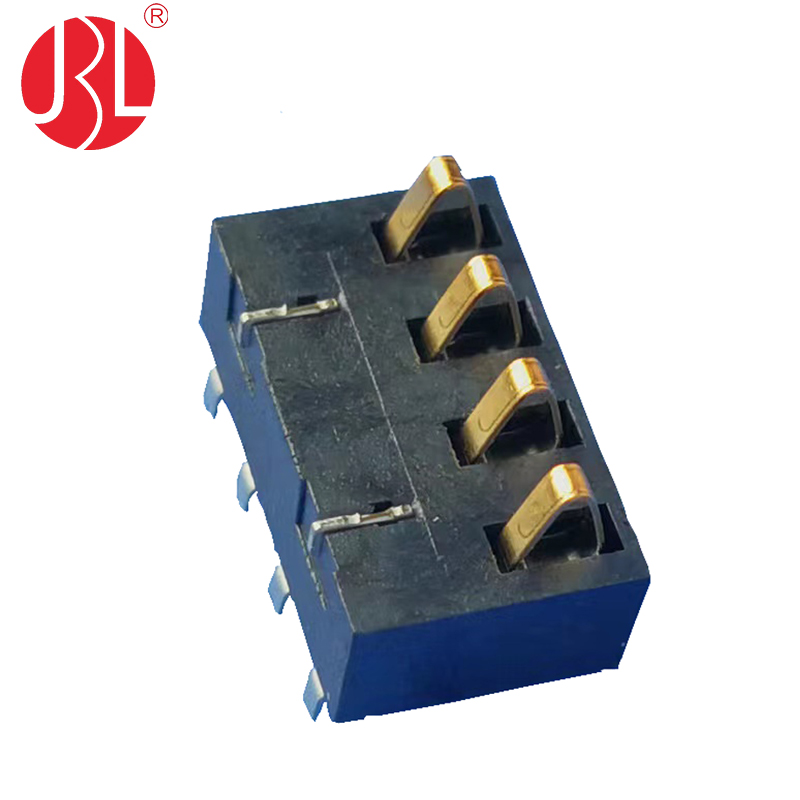

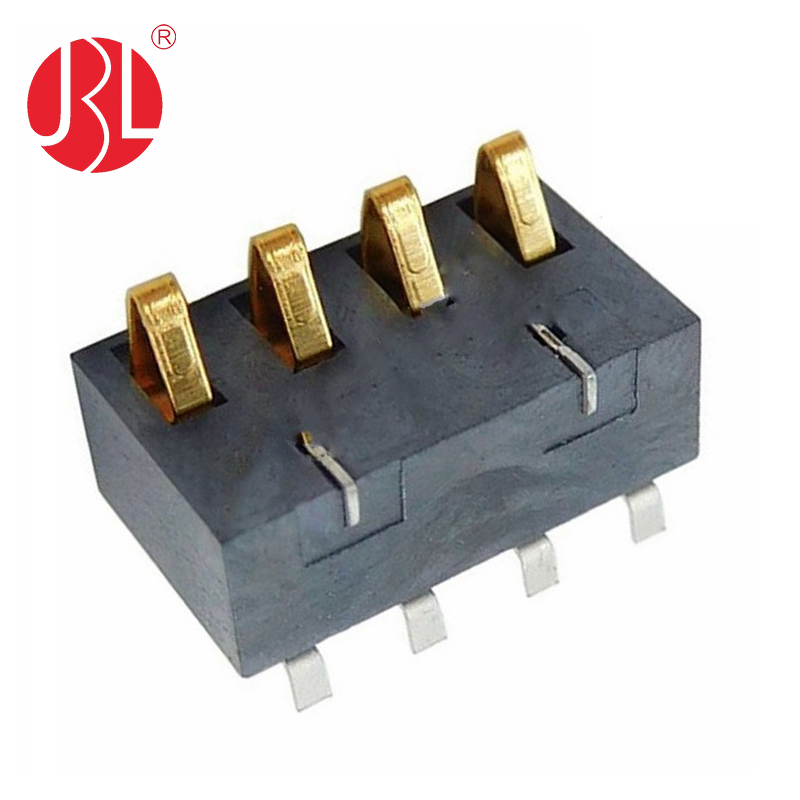

The Spring Battery Contact Connector is a reliable and versatile component designed for use in surface mount technology (SMT) applications. This particular connector features a 2.5mm pitch and four positions, making it ideal for connecting batteries and other electronic devices in a compact and efficient manner. The right-angle design allows for easy installation and space-saving in electronic devices.

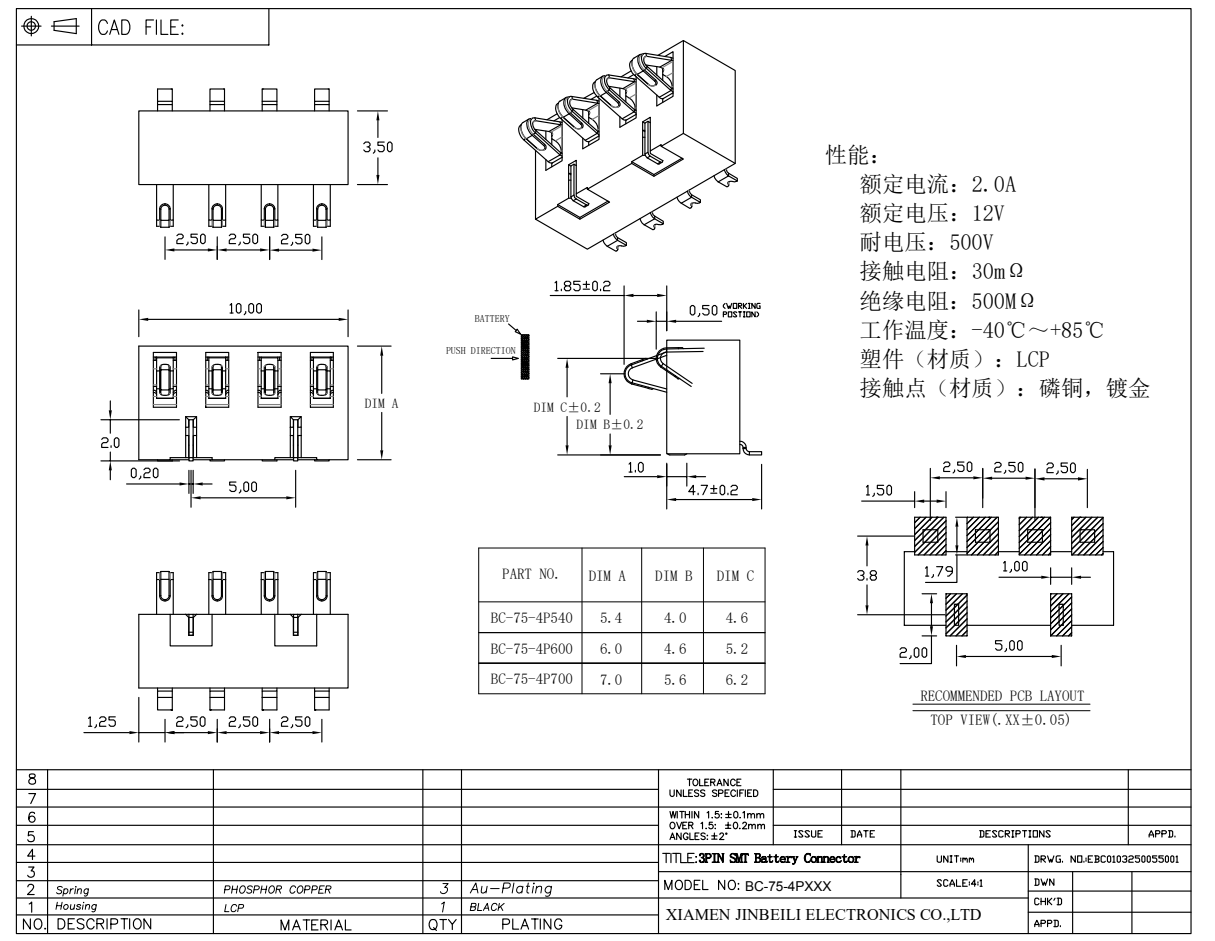

The connector offers multiple housing height options, including 5.4mm, 6.0mm, and 7.0mm, to accommodate various design requirements. Additionally, contact height options of 4.0mm, 4.6mm, and 5.6mm provide further flexibility in meeting specific application needs. The connector is rated for DC12V and can handle up to 2A of current, making it suitable for a wide range of electronic devices.

Variants of this connector include BC-75-4P540, BC-75-4P600, and BC-75-4P700, corresponding to the different housing heights available. With its robust design and reliable performance, this spring battery contact connector is an excellent choice for use in a variety of electronic applications.
