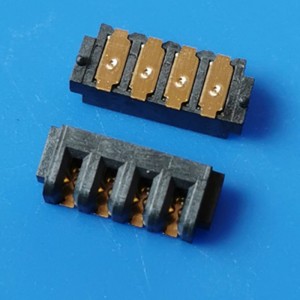

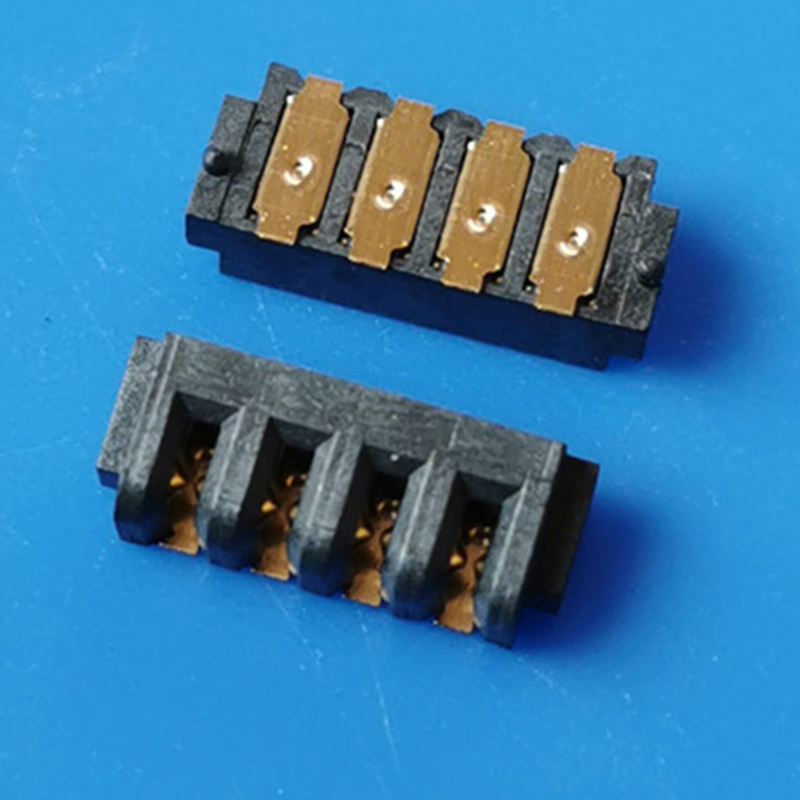

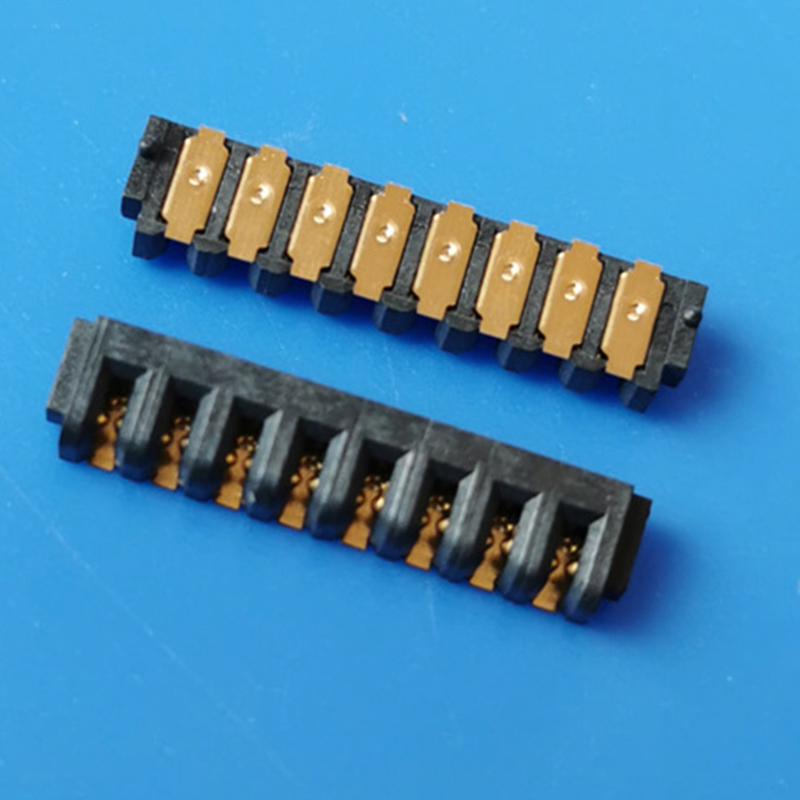

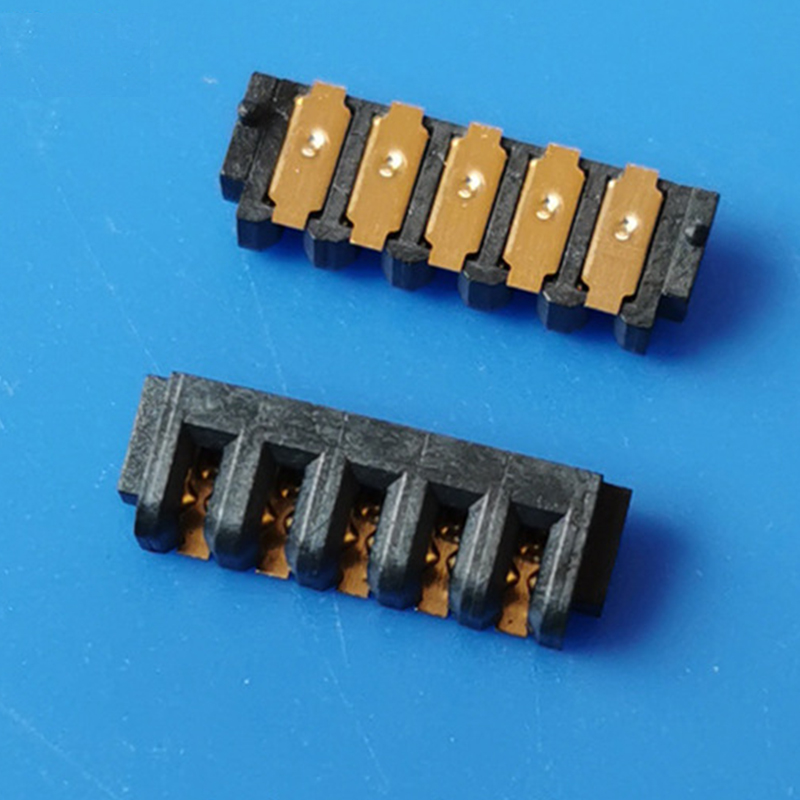

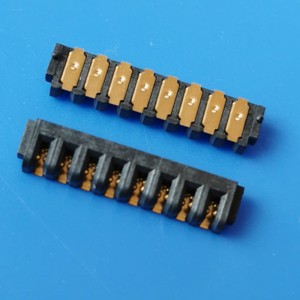

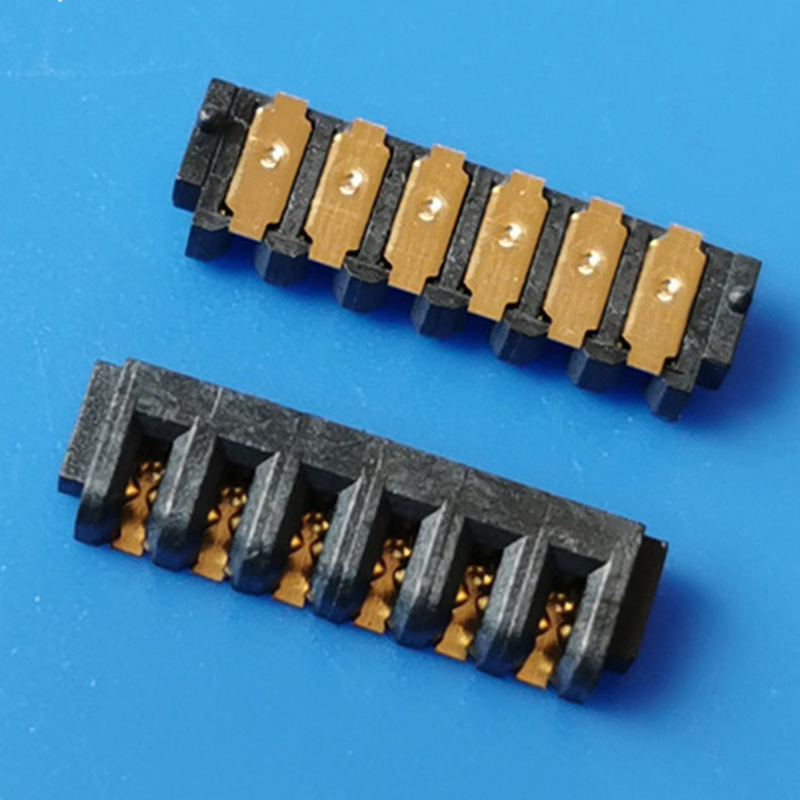

Bade Type Power Connector – SMT Vertical Type

Introducing our high-performance bade type power Female connector, engineered to deliver reliable power connections with exceptional durability. This connector features a 2.0mm pitch and is designed for Surface-Mount Technology (SMT) applications, providing a vertical orientation that maximizes space efficiency in electronic designs.

Key Specifications:

• Pitch: 2.0mm
• Housing Material: Liquid Crystal Polymer (LCP)
• Power Rating: DC 30V, 2A
• Contact Numbers: Available in 2-pin, 3-pin, 4-pin, 5-pin, 6-pin, 7-pin, 8-pin, 9-pin, and 10-pin configurations

Features:

• High-Quality Housing: Constructed from LCP, known for its excellent thermal and mechanical properties, ensuring durability and resistance to high temperatures.
• Reliable Power Delivery: Rated for DC 30V and 2A, making it suitable for a wide range of applications requiring stable and secure power connections.
• Versatile Pin Configurations: Available in multiple pin configurations to meet diverse design needs and accommodate various circuit requirements.
• Superior Performance: Designed to be an effective alternative to the TE Connectivity connector 1612901-1, offering comparable or enhanced performance in your applications.

This bade type power connector is an ideal choice for modern electronic devices where reliability and efficiency are paramount. Its robust construction and versatile options ensure it meets the demands of high-performance applications, providing a dependable and cost-effective solution for your power connection needs.
