CR2032-5-NI CR 2025 2032 Battery Holder SMD

Short Description:

CR 2025 2032 Cell Holder Battery Retainer SMT


  • Item: Cell Retainer
  • Mounting : Thru Hole
  • Cell Types: CR 2025 2032
  • Material: Phosphor Bronze Nickel Plated
  • Product Detail

    Product Tags

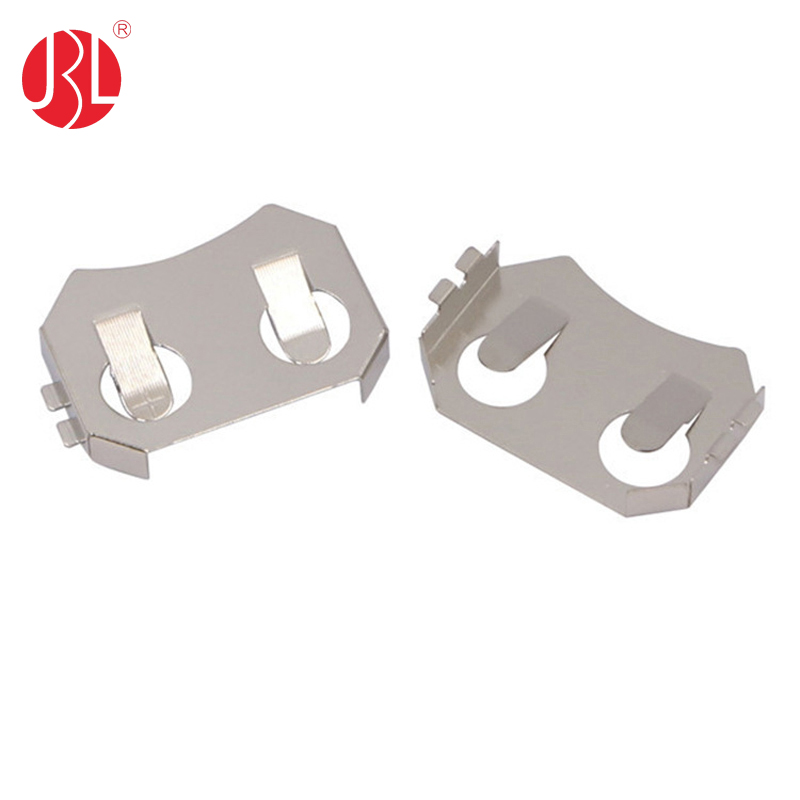

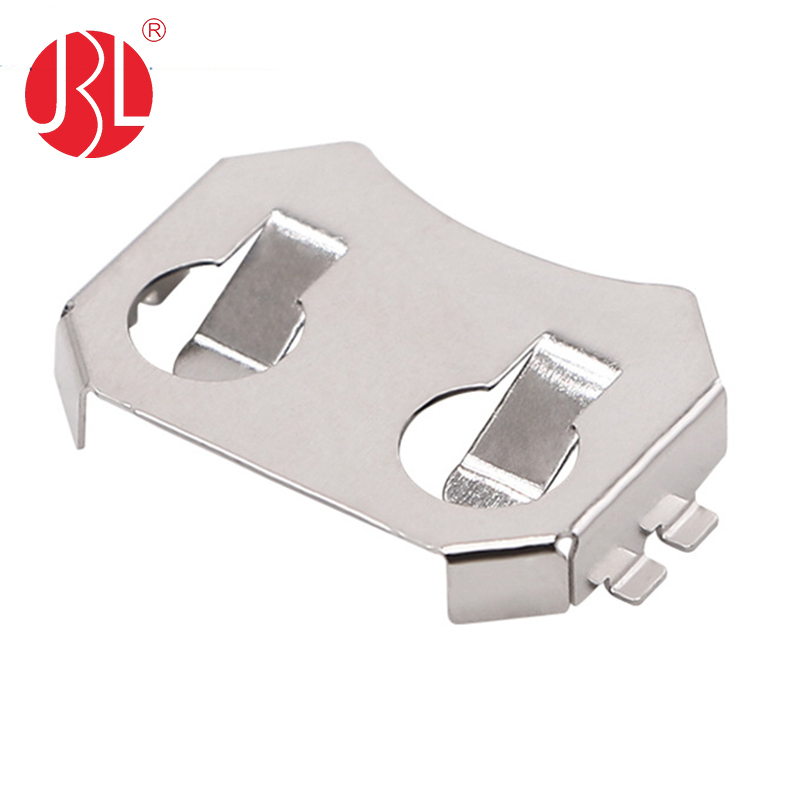

    Cell Retainer for CR2025/2032 Size Batteries

    • Type: Surface Mount Technology (SMT) with 2 Pins
    • Cell Capacity: 1 Cell
    • Material: Phosphor Bronze, Nickel Plated

    This versatile cell retainer is designed for SMT applications with 2 pins, accommodating a single CR2025 or CR2032 coin cell, along with various equivalent models (DL2025, ECR2025, BR2025, L2025, 5003LC, KCR2025, KECR2025, LM2025, DL2032, ECR2032, BR2032, KCR2032, KECR2032, LM2032, 5004LC, L2032, SB-T51). Constructed from phosphor bronze with a nickel plating, it provides excellent conductivity and corrosion resistance, ensuring a reliable power connection for a wide range of electronic devices.

    CR2032-5-NI (1)www.jbl-ec.com
