Custom 2.0mm Pitch Molex 501646 iGrid Cable

Short Description:

Custom Dual Row 10Pin 12Pin 14Pin 18Pin 20Pin Molex 501646 2.0mm Pitch Wiring Harness Cable Assembly


  • Item: Wire Harness / Cable Assembly
  • Connectors: Molex 501646 IGrid Connectors
  • Wires Dimensions Options: 22AWG, 24AWG, 26AWG, 28AWG
  • Wires Length Options: 100mm, 150mm, 200mm, 250mm, 300m, 350mm, 400mm, 450mm, 500mm, 600mm
  • Wires Color Options: Red, Black, White
  • Product Detail

    Product Tags

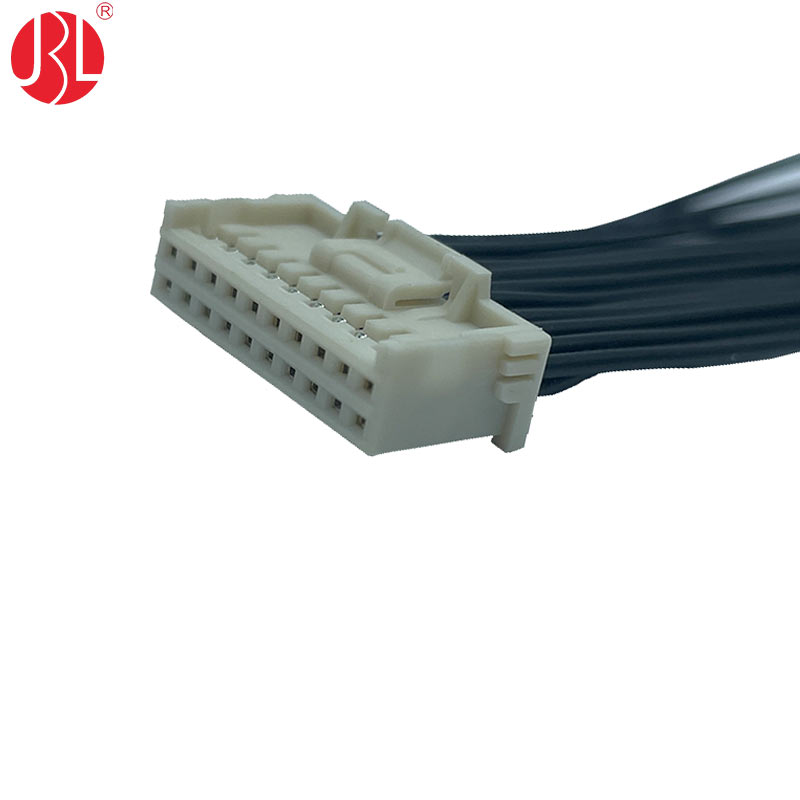

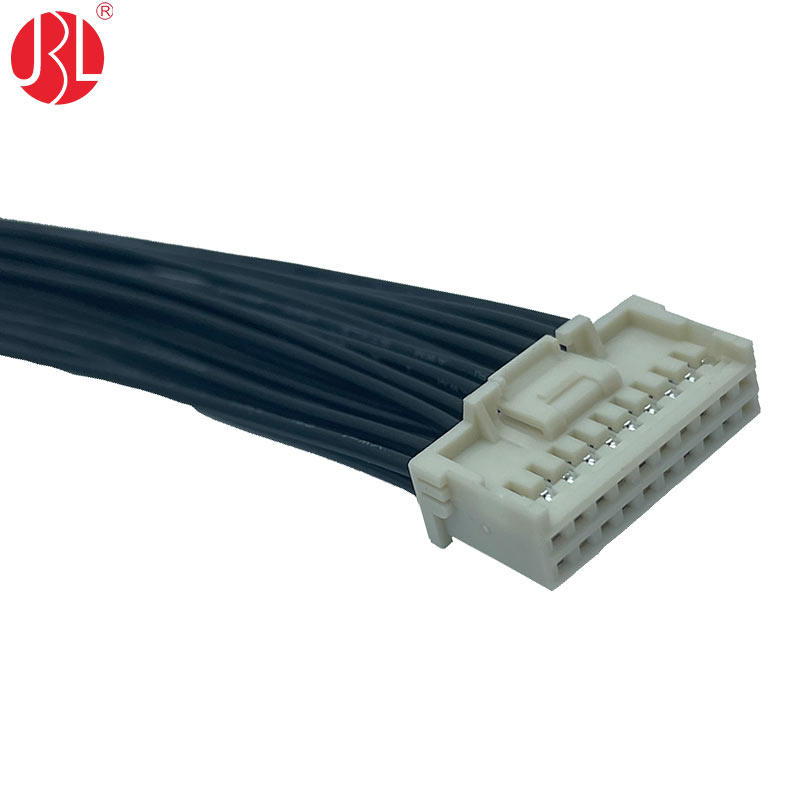

    Molex 501646 iGrid Receptacle Cable Assembly – Customizable Wire Harness

    The Molex 501646 cable assembly features a 2.00mm Pitch iGrid Receptacle, designed for high-density, reliable connections in compact electronic applications. This versatile wire harness supports multiple circuit configurations (10-pin to 40-pin) and wire length options (50mm to 600mm), making it ideal for industrial, automotive, medical, and consumer electronics.

    Key Features & Specifications:

    • Connector Type: Molex 2.00mm Pitch iGrid Receptacle (Female)
    • Circuit Options: 10-pin, 12-pin, 14-pin, 16-pin, 18-pin, 20-pin up to 40-pin (Part Numbers: 501646-1000, 501646-1200, …, 501646-4000)
    • Wire Gauge (AWG): 22AWG, 24AWG, 26AWG, or 28AWG (flexible & durable stranded wire)
    • Wire Length: Customizable from 50mm to 600mm (or as per customer requirements)
    • Termination Options:
      • Tinned Ends (for direct soldering or PCB connection)
      • Pre-attached Connector (custom mating plug or other interface)
    • Voltage/Current Rating: Varies based on wire gauge (standard ratings apply)
    • Durability: High-temperature-resistant insulation for stable performance

    Applications:

    • Industrial automation & control systems
    • Medical devices & diagnostic equipment
    • Automotive electronics & infotainment systems
    • Consumer electronics, IoT devices, and embedded systems

    Why Choose Our Cable Assemblies?

    We utilize state-of-the-art machinery and employ experienced technicians to ensure precision-crimped, high-quality wire harnesses. Our production process includes rigorous testing for continuity, insulation resistance, and pull strength to guarantee reliability.

    Customization & Support:

    • Custom wire lengths, colors, and shielding options available
    • Bulk order discounts & fast lead times
    • OEM/ODM support for specialized requirements

    Contact us today for tailored solutions—we provide high-performance cable assemblies that meet your exact specifications!
