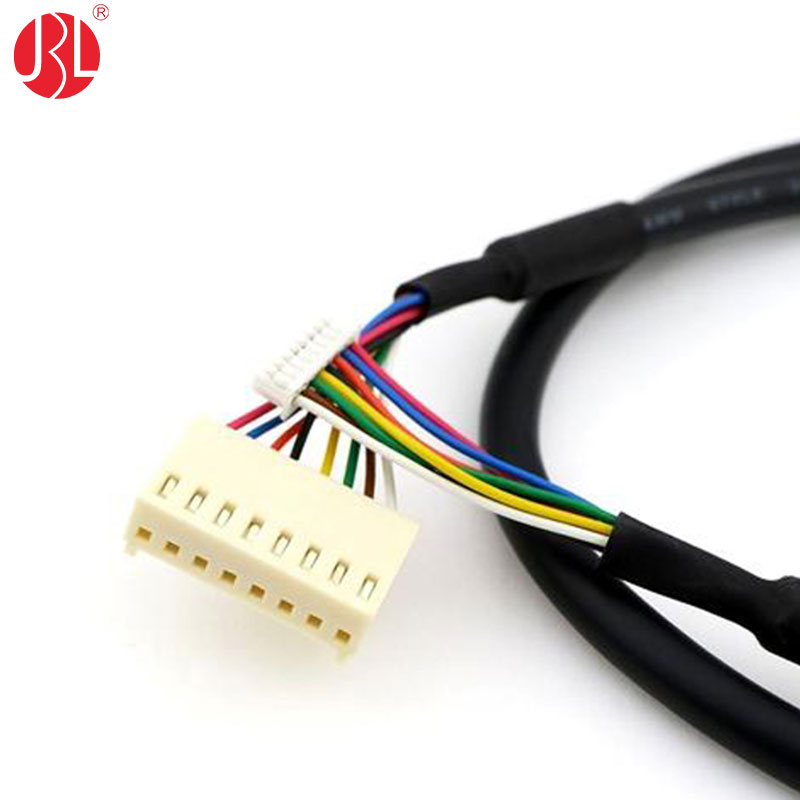

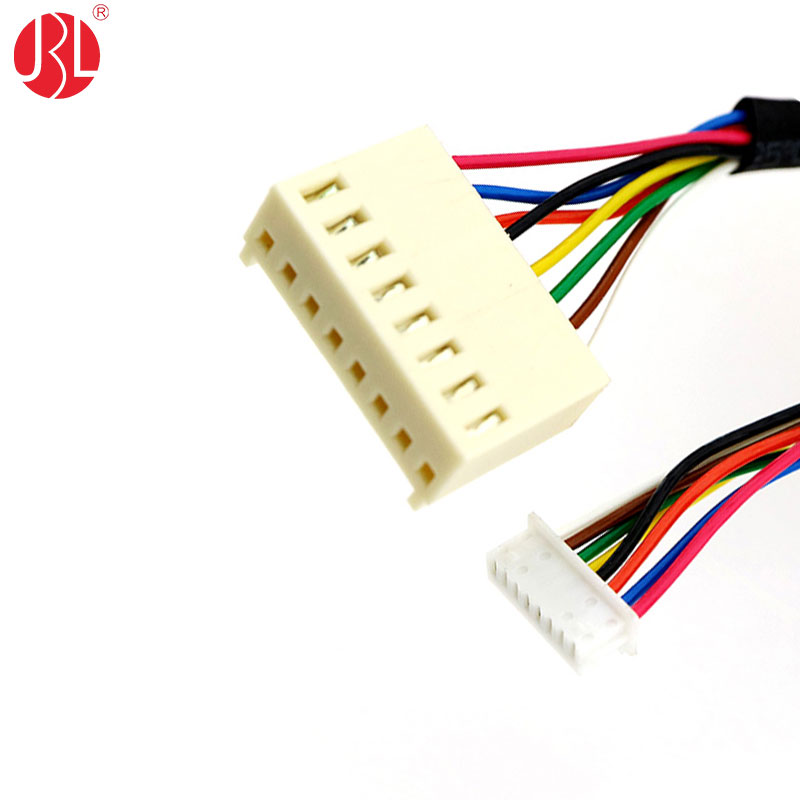

Molex 2695 KK254 2.54mm Pitch Wiring Harness – Precision Custom Cable Assembly

Our high-quality Molex 2695 KK254 2.54mm pitch wiring harness offers reliable interconnections for electronic devices, control systems, and industrial equipment. Featuring the industry-standard Molex KK254 connector series, this harness provides secure, vibration-resistant connections in compact spaces while maintaining excellent electrical performance.

Technical Specifications:

• Connector Type: Molex 2695 KK254 series (2.54mm pitch)
• Circuit Options: 2-pin to 16-pin configurations
• Standard Part Numbers: 22013027 (2-pin), 22013037 (3-pin), 22013047 (4-pin) up to 22013077 (16-pin)
• Wire Gauges Available: 22AWG (0.3mm²), 24AWG (0.2mm²), 26AWG (0.1mm²)
• Custom Lengths: 50mm to 500mm (±1mm tolerance)
• Color Options: Red, black, white, blue, yellow, green (custom colors available)
• Current Rating: Up to 7A (22AWG) depending on configuration
• Temperature Range: -40°C to +105°C

Key Features & Benefits:
✓ Space-Saving Design: Compact 2.54mm pitch ideal for high-density applications
✓ Secure Connections: Positive latch mechanism prevents accidental disconnection
✓ Flexible Customization: Multiple pin counts, wire lengths, and color combinations
✓ Premium Materials: High-strand copper conductors with PVC insulation
✓ Reliable Performance: Gold-plated contacts for optimal conductivity
✓ Wide Compatibility: Perfect for PCB connections, industrial controls, and automation systems

Our Manufacturing Advantages:
• Complete In-House Production from wire processing to final assembly
• Automated Crimping Machines ensure consistent terminal quality
• 100% Electrical Testing for continuity and insulation resistance
• Custom Labeling & Packaging available
• Fast Prototyping for design verification
• RoHS & UL Compliance on request

Typical Applications:

• Industrial control panels
• Automotive electronics
• Power supply connections
• Medical equipment
• Telecommunications devices
• Test and measurement instruments
