Product Descriptions :

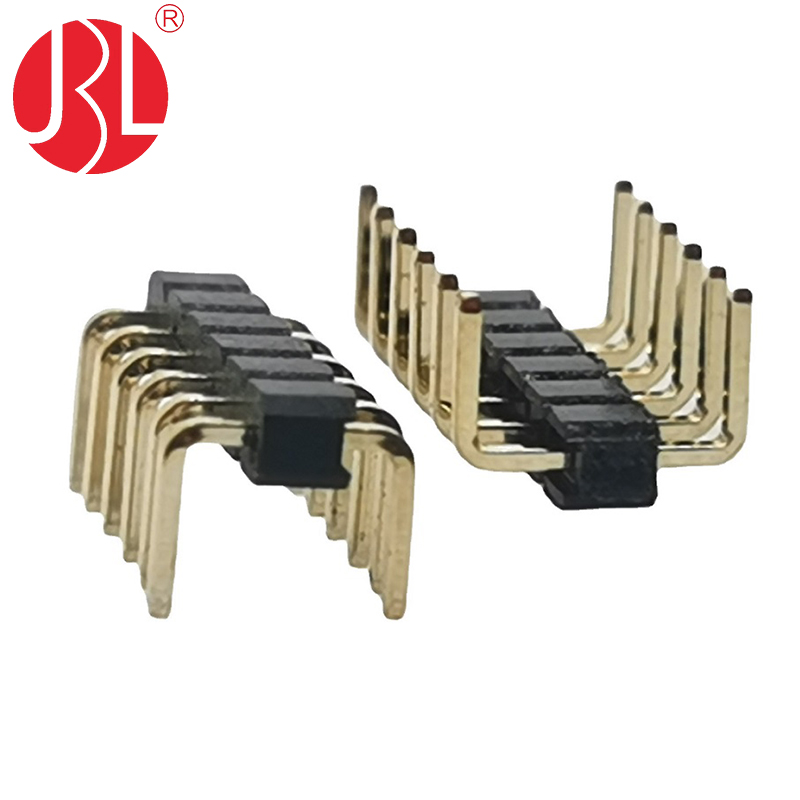

Product name : Pin Header

Features : dip, right angle

Pitch : 2.54mm

Insulator number options : 1 or 2

Position Numbers : customized as buyer’s request

Position Length : customized as buyer’s request

Housing Height : customized as buyer’s request

Contact Shape : square / customized as buyer’s request

Rating：AC 125V 1A

Contact Resistance: 100mΩMax

Insulation Resistance: 100MΩMin

Dielectric Strength: AC 500V for 1min

Operating Life: 5,000 cycles

Working Temp : -55°C~+105°C

Packaging : Bag

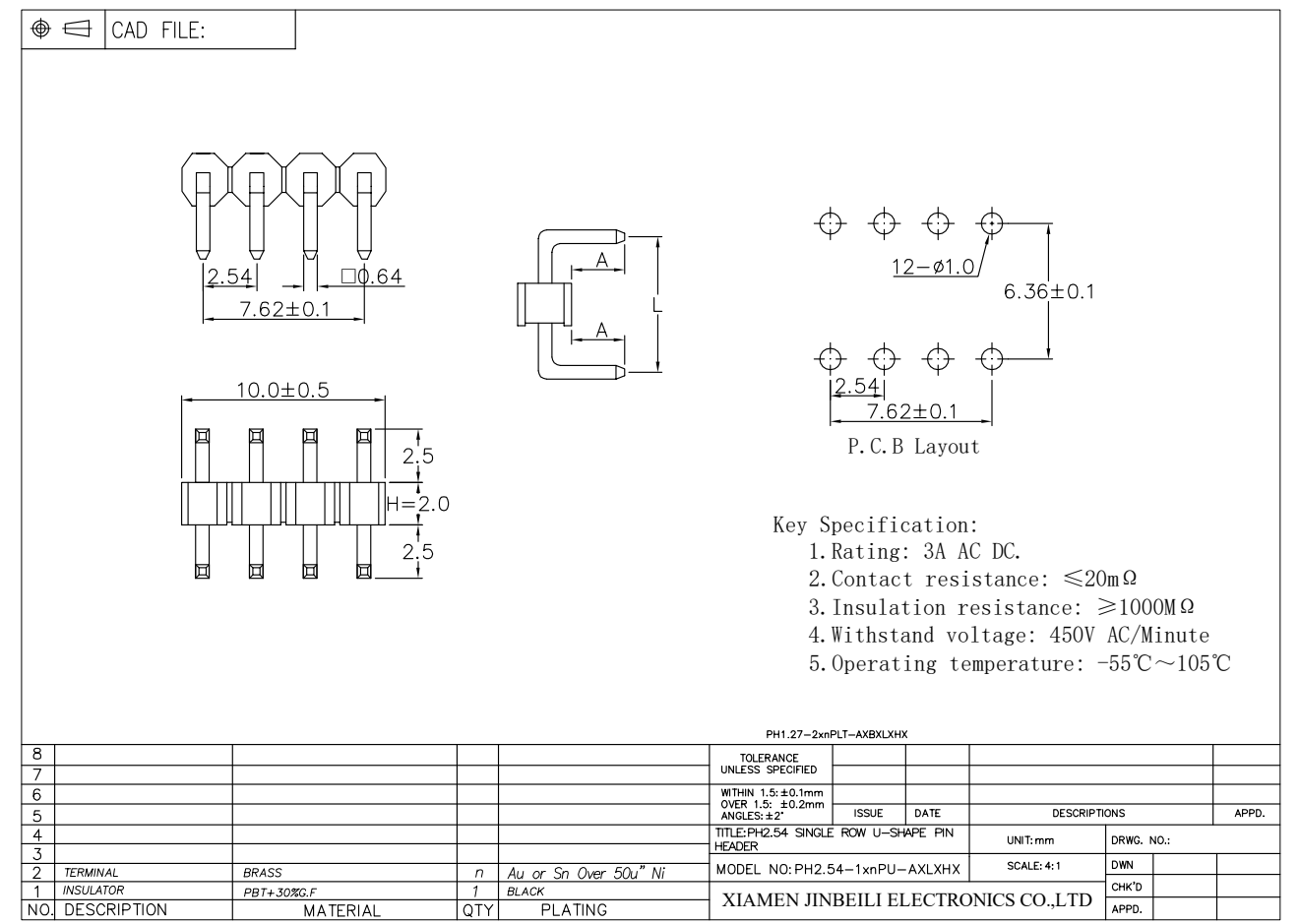

Datasheets :
