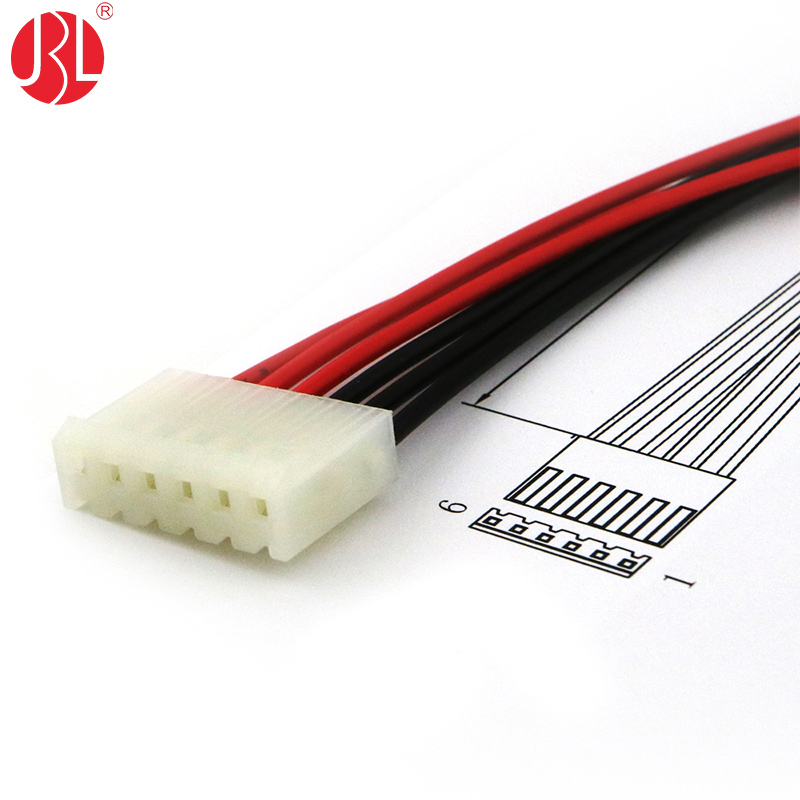

Molex 5195 3.96mm Pitch Wiring Harness – Customizable Cable Assembly

This high-quality wiring harness features Molex 5195-series 3.96mm pitch connectors, designed for secure and reliable electrical connections in industrial, automotive, and electronic applications. The harness supports 2-pin to 12-pin configurations, providing flexibility for various circuit requirements.

Key Features:

• Connector Type: Molex 5195 3.96mm pitch – robust housing for stable and vibration-resistant connections.
• Circuit Options: Available in 2-pin, 3-pin, 4-pin, 5-pin, up to 12-pin configurations to suit different wiring needs.
• Part Numbers: Compatible with 09501031 (2-pin), 09501021 (3-pin), 09501041 (4-pin), 09501051 (5-pin), up to 09501121 (12-pin) for precise matching with existing systems.
• Wire Length Customization: Adjustable lengths from 50mm (0.05m) to 500mm (0.5m) for optimal cable management.
• Wire Gauge Options: Supports 20AWG, 22AWG, and 24AWG stranded or solid-core wires, ensuring proper current handling and flexibility.
• Color Coding: Multiple wire color options including red, black, white, and blue for easy identification and organization.
• Durable Construction: High-quality insulation materials for resistance to heat, abrasion, and environmental stress.

Applications:

Ideal for power distribution, control panels, automotive electronics, industrial automation, and appliances, this harness ensures secure and efficient signal/power transmission. The Molex 5195 connector system is known for its durability, making it suitable for high-vibration and harsh environments.

Customization Options:

• Male or female connector configurations available.
• Additional wire colors, lengths, and shielding upon request.
• Overmolding and strain relief options for enhanced cable protection.

This Molex 5195 wiring harness provides a reliable, customizable, and industry-compliant solution for structured electrical connections, ensuring optimal performance in diverse applications.
