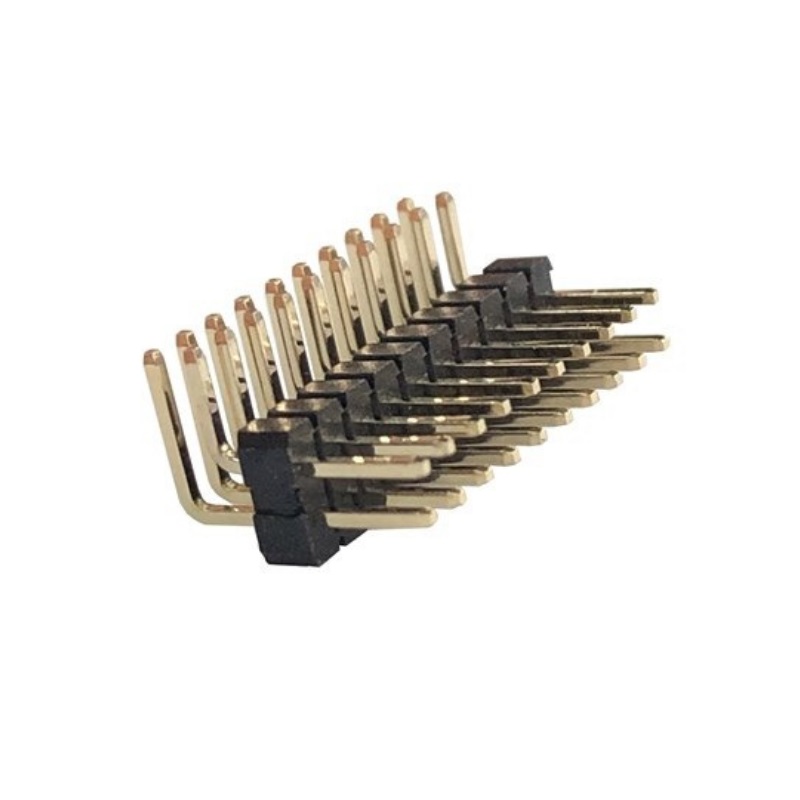

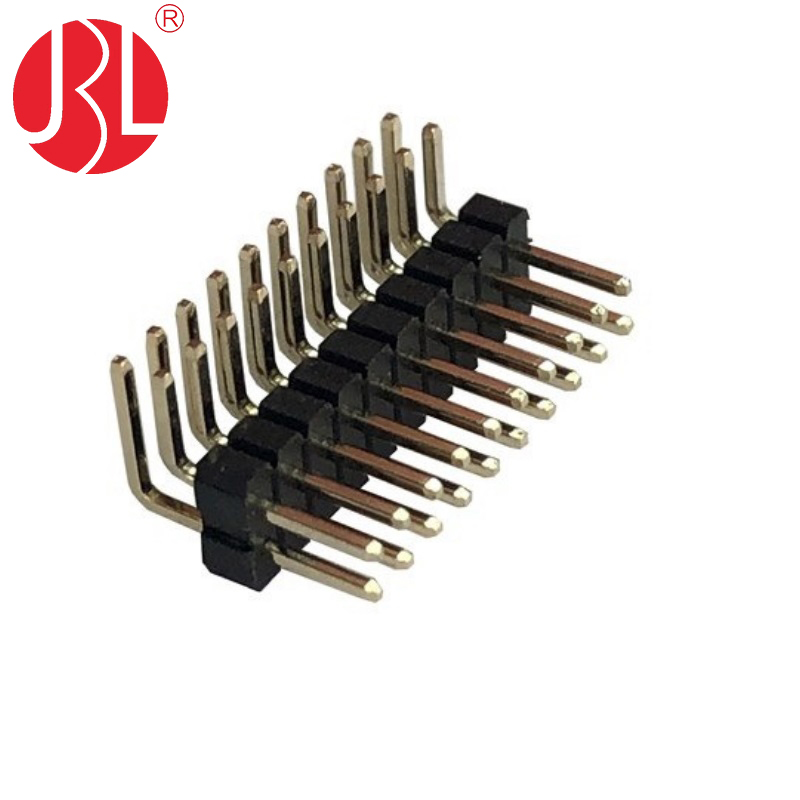

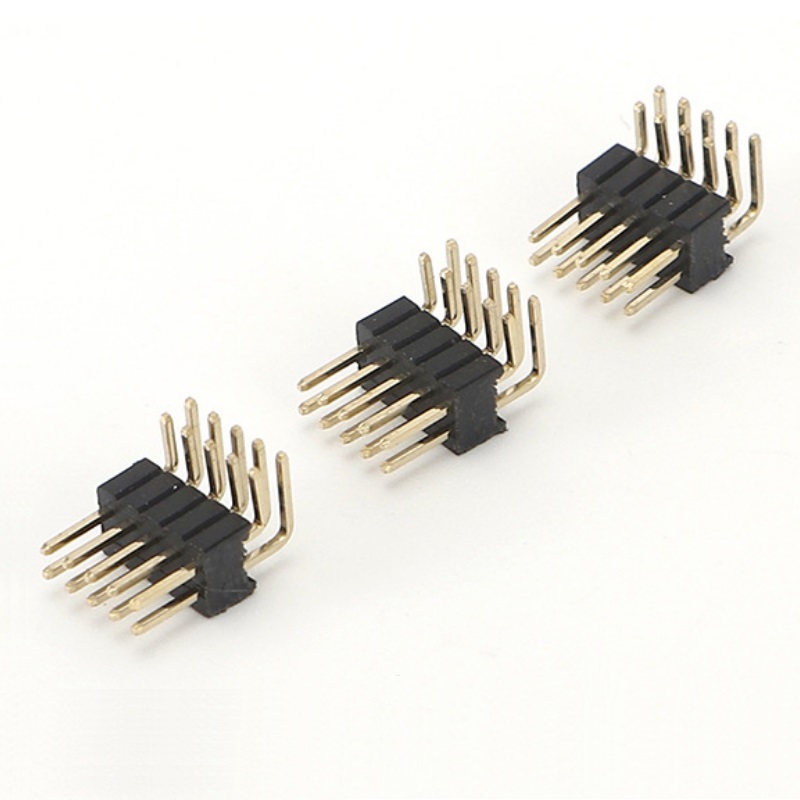

Custom Dual Row Pin Header 1.27mm Pitch DIP Through Hole Right Angle
Product Descriptions :
Product name : Pin Header
Features : DIP, Right angle
Pitch : 1.27mm
Insulator number options : 1 or 2
Position Numbers : customized as buyer’s request
Position Length : customized as buyer’s request
Housing Height : customized as buyer’s request
Contact Shape : square / customized as buyer’s request
Rating：AC 125V 1A
Contact Resistance: 100mΩMax
Insulation Resistance: 100MΩMin
Dielectric Strength: AC 500V for 1min
Operating Life: 5,000 cycles
Working Temp : -55°C~+105°C
Packaging : Bag

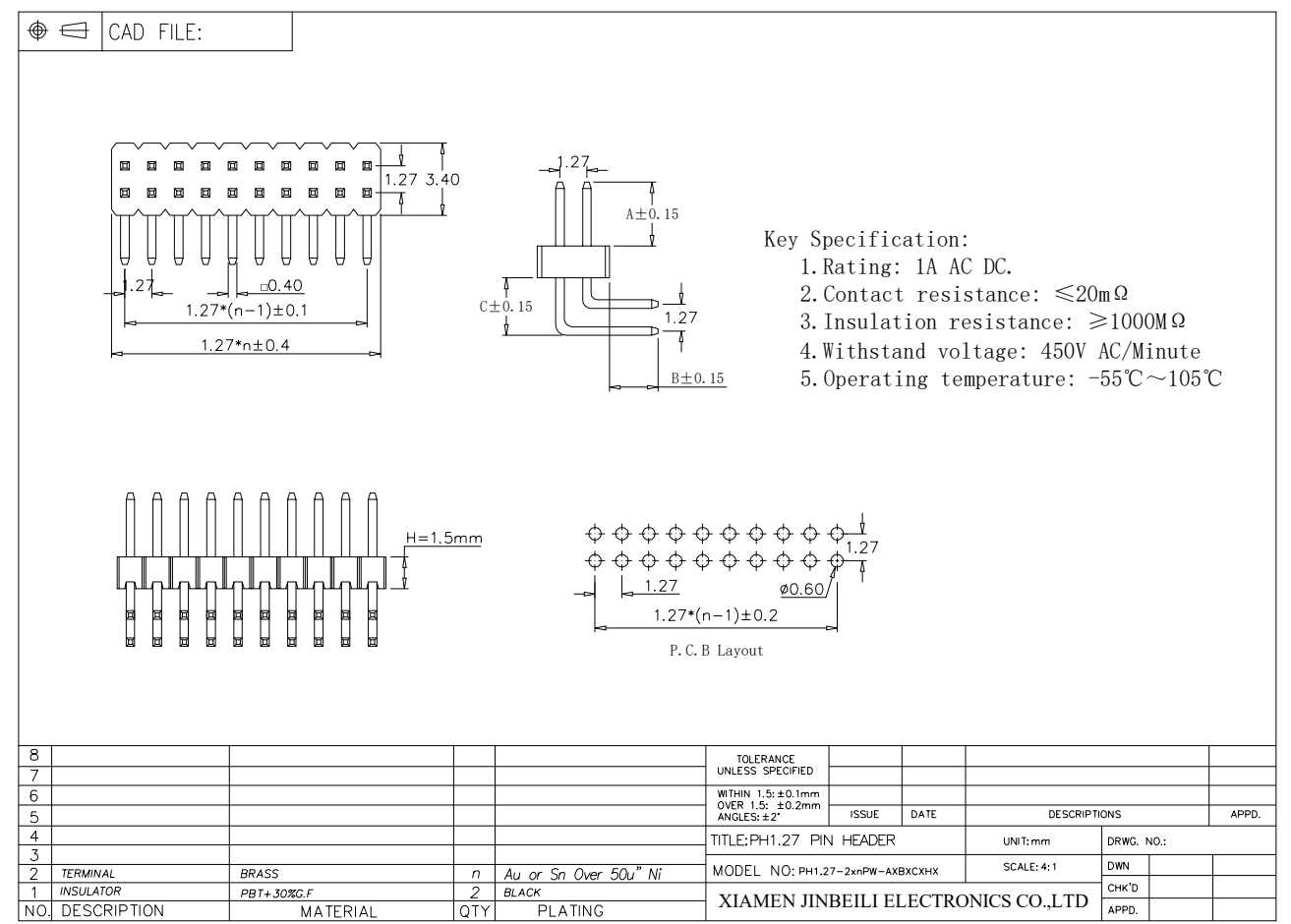

Datasheets :
