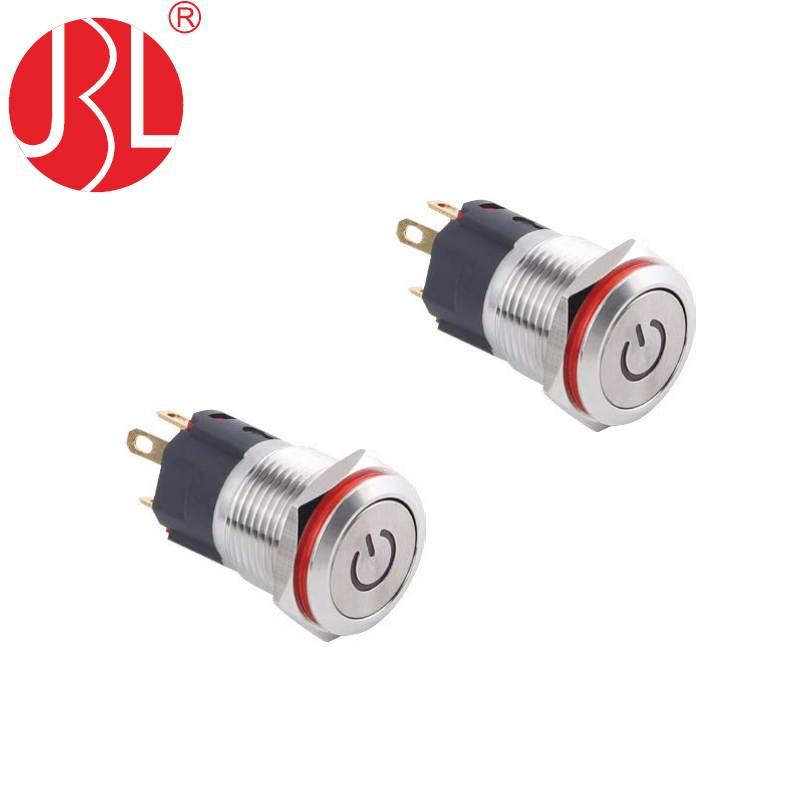

Custom Latching 16mm Push Button Switch

Short Description:

Anti Vandaal Schakelaar IP65 Waterproof Dot Illuminated Push Button Switch 16mm


Product Detail

Product Tags

1.Circuit:SPST / DPDT
2.Current Rating: 3A/2A
3.Voltage Rating: 250V AC/36V DC
4.Dielectric withstanding voltage: 1000VAC for 1 min
5.Contact Resistance:50m ohm max
6.Insulation Resistance:100M ohm min
7.Operating Force:400gf±150gf
8.Total Travel:1.5mm±0.5mm 9.Operating life:200,000Cycles
10.Recommended IR Reflow(Wave Soldering) Temperature: 260°C
11.Funcition: Momentray ON-OFF/OFF-(ON) 12. Operating Temperature:-20°C~+85°C 13.Degree of protaction:IP65

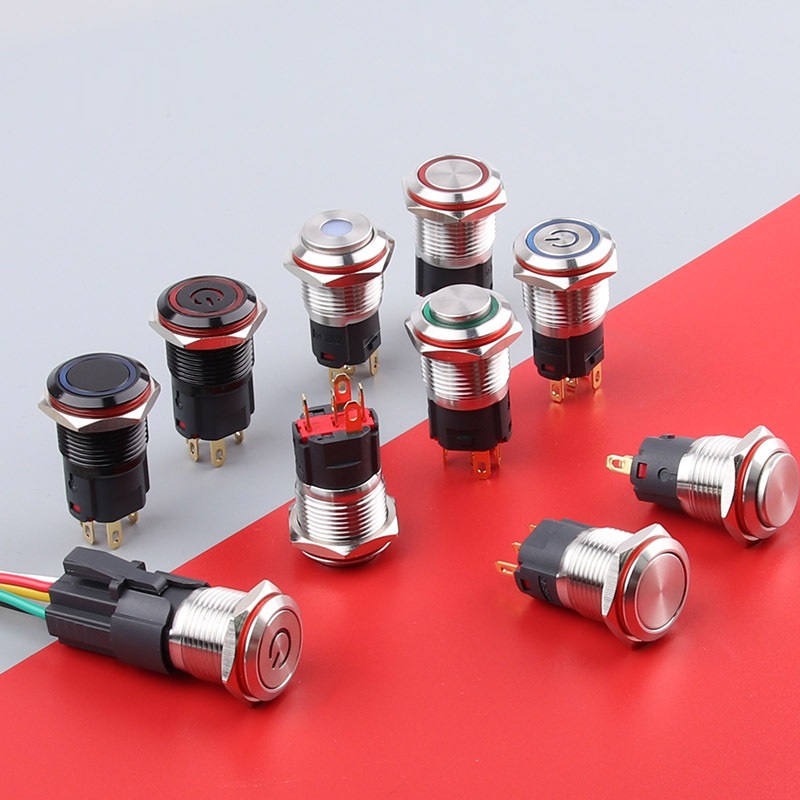

Flat anti vandal switch



Product design & development, Tooling ,Moulding and Manufacturing :



Jinbeili component manufacturer
