Custom Molex 43025 Series Wire Harness Cable Assembly

Short Description:

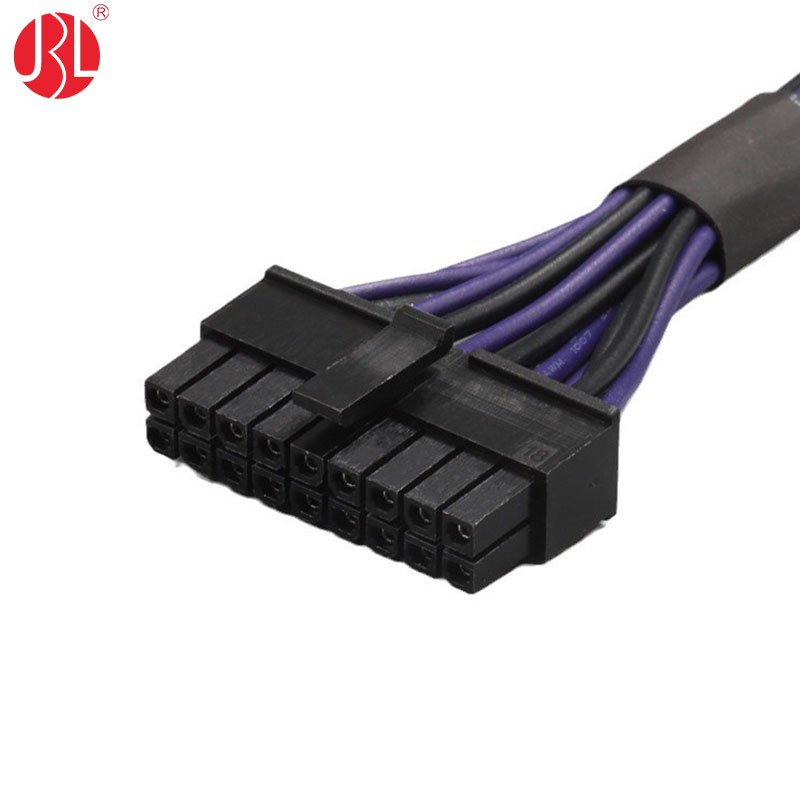

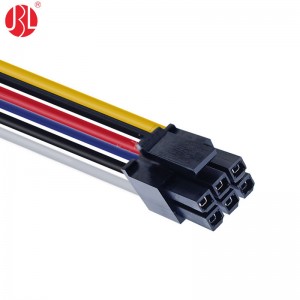

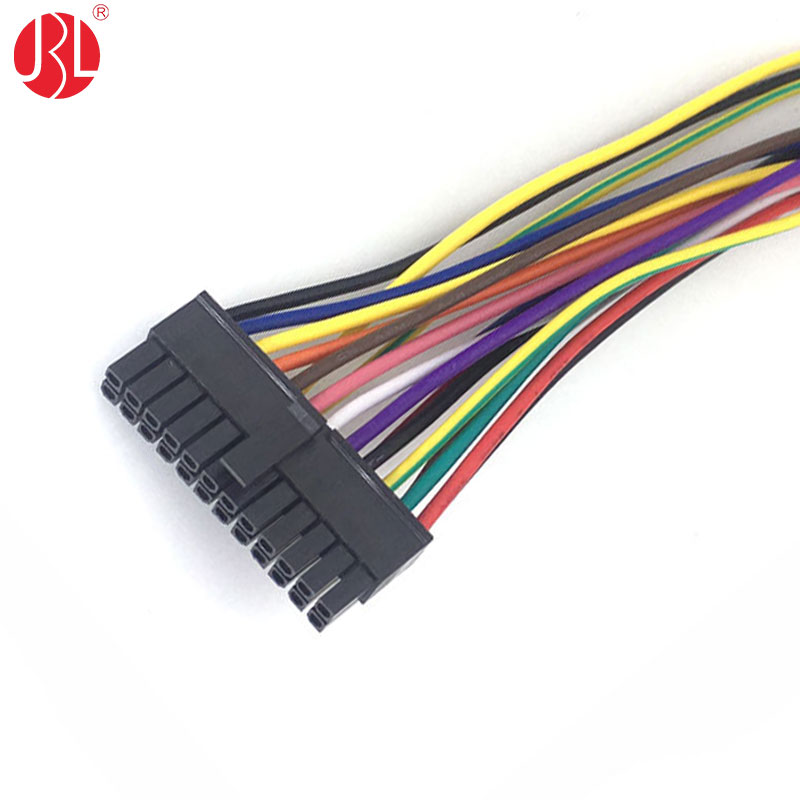

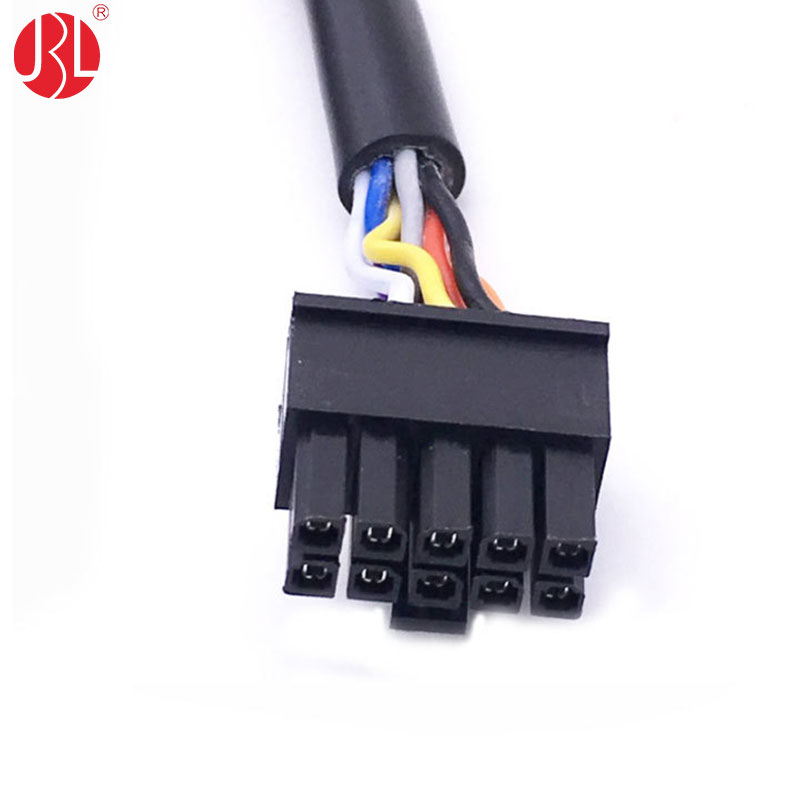

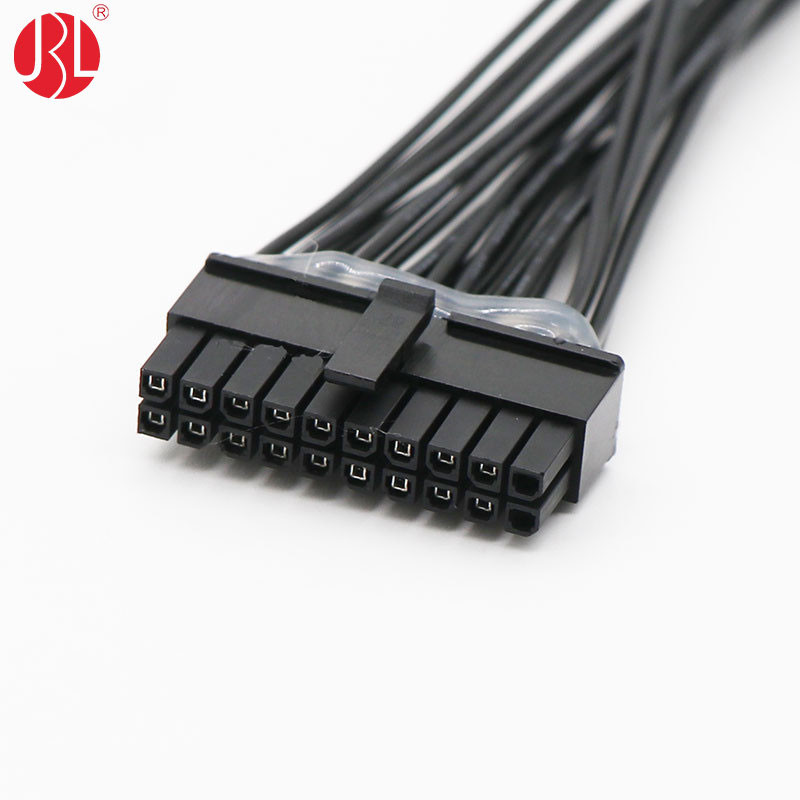

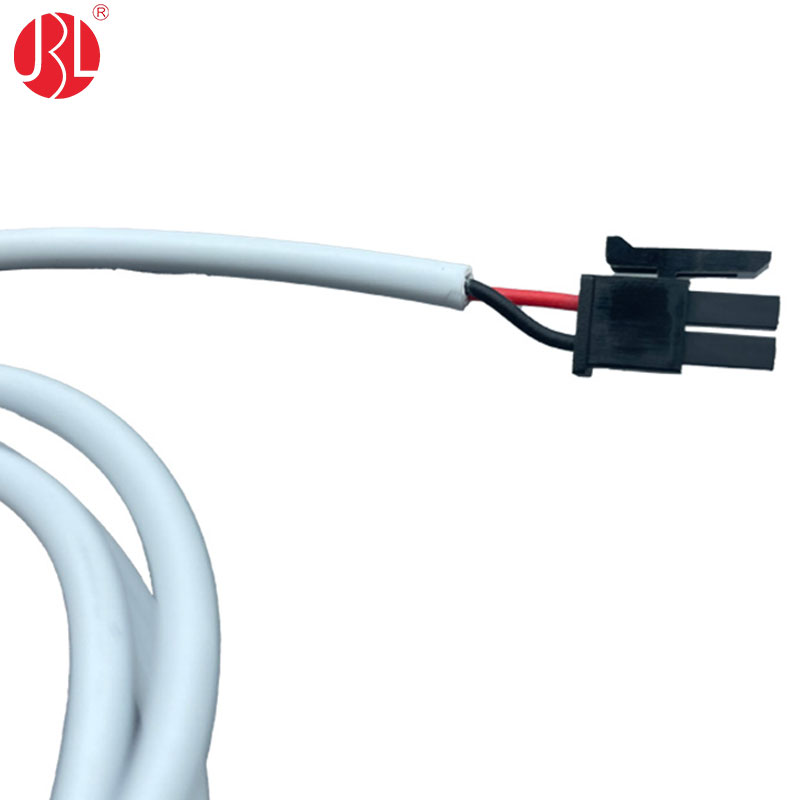

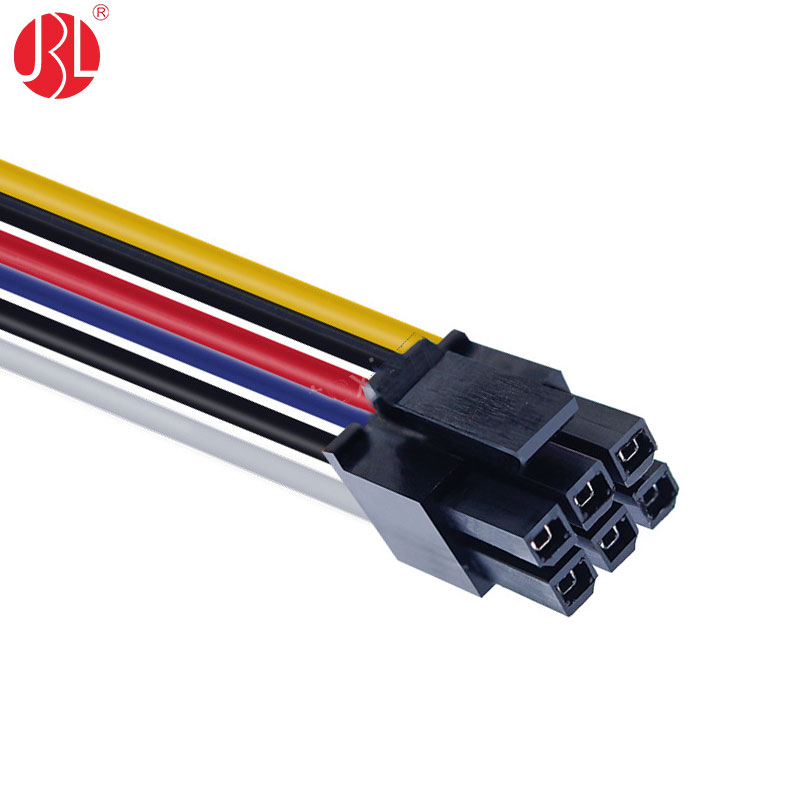

Factory Custom Molex Micro Fit 3.0 Wiring Harness Cable Assembly 43025-0200 43025-0400 43025-0600 43025-0800 43025-1000 43025-1200 43025-1400 43025-1600 43025-1800 43025-2000 43025-2200 43025-2400


  • Item: Wire Harness / Cable Assembly
  • Connector: Molex Micro Fit 3.0 Connectors
  • Wires Dimensions Options: 20AWG, 22AWG, 24AWG
  • Wires Length Options: 50mm, 100mm, 150mm, 200mm, 250mm, 300m, 350mm, 400mm...etc
  • Wires Standards Options: UL1007, UL2464, UL1015, etc
  • Wires Color Options: Multiple wires Colors available
  • Micro Fit 3.0 Connectors: 2Way, 4Way, 6Way , 8Way, 10Way, 12Way, 14Way, 16Way, 18Way, 20Way, 22Way, 24Way
  • The Other End of Wires Processing : : Tinned Ends, with other Connectors
  • Connectors Options :: Original or Equivalents
  • Product Detail

    Product Tags

    Custom Molex Micro-Fit 3.0 Wire Harness & Cable Assembly Manufacturing

    Our factory specializes in the production of high-quality Molex Micro-Fit 3.0 crimp wire harnesses and cable assemblies, designed to meet the exact specifications of industrial, automotive, medical, and consumer electronics applications. With full-automated terminating machines, precision crimping tools, and advanced soldering equipment, we ensure consistent performance, durability, and compliance with industry standards.

    Key Features & Capabilities:

    ✅ Comprehensive Connector Options – We support all Micro-Fit 3.0 connectors, including:

    • 43025-0200 (2-pin) to 43025-2400 (24-pin) (covering 2 to 24 circuits).
    • Compatible with both male and female crimp terminals (e.g., 43030-0001, 43030-0010).

    ✅ Wide Wire Dimension Selection –

    • AWG Sizes: 20AWG, 22AWG, 24AWG (0.5mm² to 0.2mm²).
    • Insulation Types: PVC, silicone, or other custom materials upon request.

    ✅ Custom Length & Configurations –

    • Wire Length: 50mm to 1000mm (or longer upon demand).
    • Shielding Options: Unshielded, foil, or braided shielding for EMI/RFI protection.
    • Jacketing: Flexible nylon, PVC, or heat-resistant sleeves available.

    ✅ Advanced Manufacturing Facilities –

    • Fully automated crimping machines for precision termination.
    • High-speed soldering stations for secure connections.
    • Automated testing (continuity, Hi-Pot, pull-force) to ensure reliability.

    ✅ Customization & Compliance –

    • Tailored wire colors, labeling, and bundling.
    • UL, RoHS, and REACH compliance available.
    • Prototyping & high-volume production support.

    Applications:

    Our Molex Micro-Fit 3.0 wire harnesses are widely used in:

    • Power supplies & industrial controls
    • Automotive electronics (EV charging, sensors)
    • Medical devices & robotics
    • Data centers & telecommunications

    With strict quality control (IPC/WHMA-A-620 standards) and rapid turnaround times, we deliver durable, high-performance cable assemblies tailored to your exact needs.

    Contact us today for a quote or sample request!
