Product Descriptions :

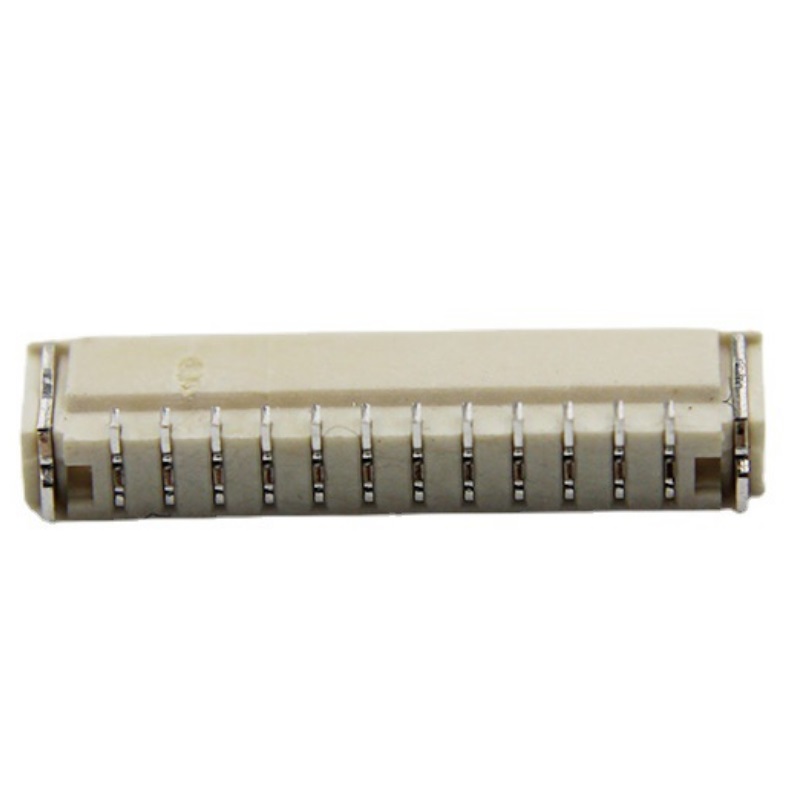

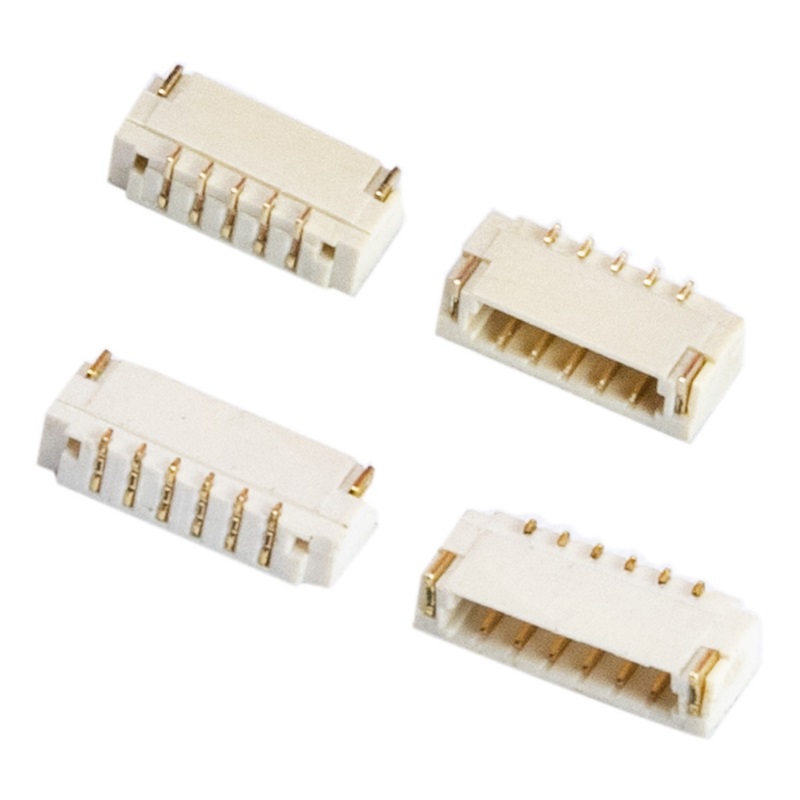

Product name : Connector Header Surface Mount 2 position 0.031″ (0.80mm)

Model: SUR0.8-WT-nA

Features : Sure Face Mount Right Angle SMT

Applicable wire : Conductor Size/AWG #32,#36

Conductor /7 Strands, tin-coated copper alloy

Insulation :O.D. 0.39mm

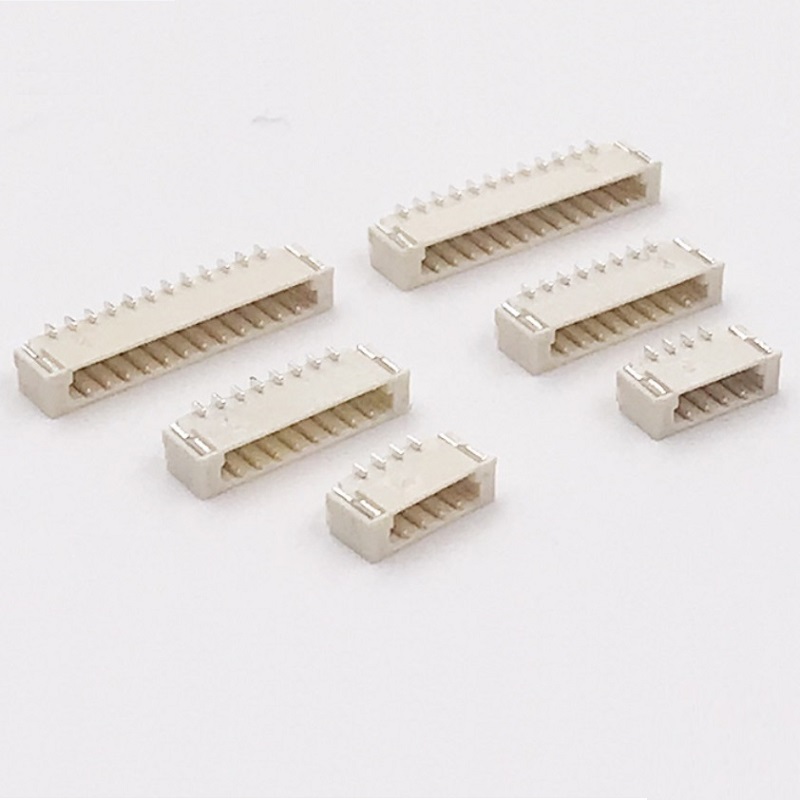

Position Numbers : 02pin to 22pin customized as buyer’s request

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 0.5A AC DC (AWG #32)

0.2A AC DC (AWG #36)

Voltage Rating: 30V

Contact Resistance: Initial Value 20mΩ Max, After environmental tests 40mΩ Max

Insulation Resistance: 100MΩMin

Dielectric Strength: AC 200V for 1min

Working Temp : -25°C~+85°C

Package : Tape & Reel (TR)

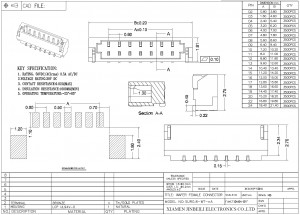

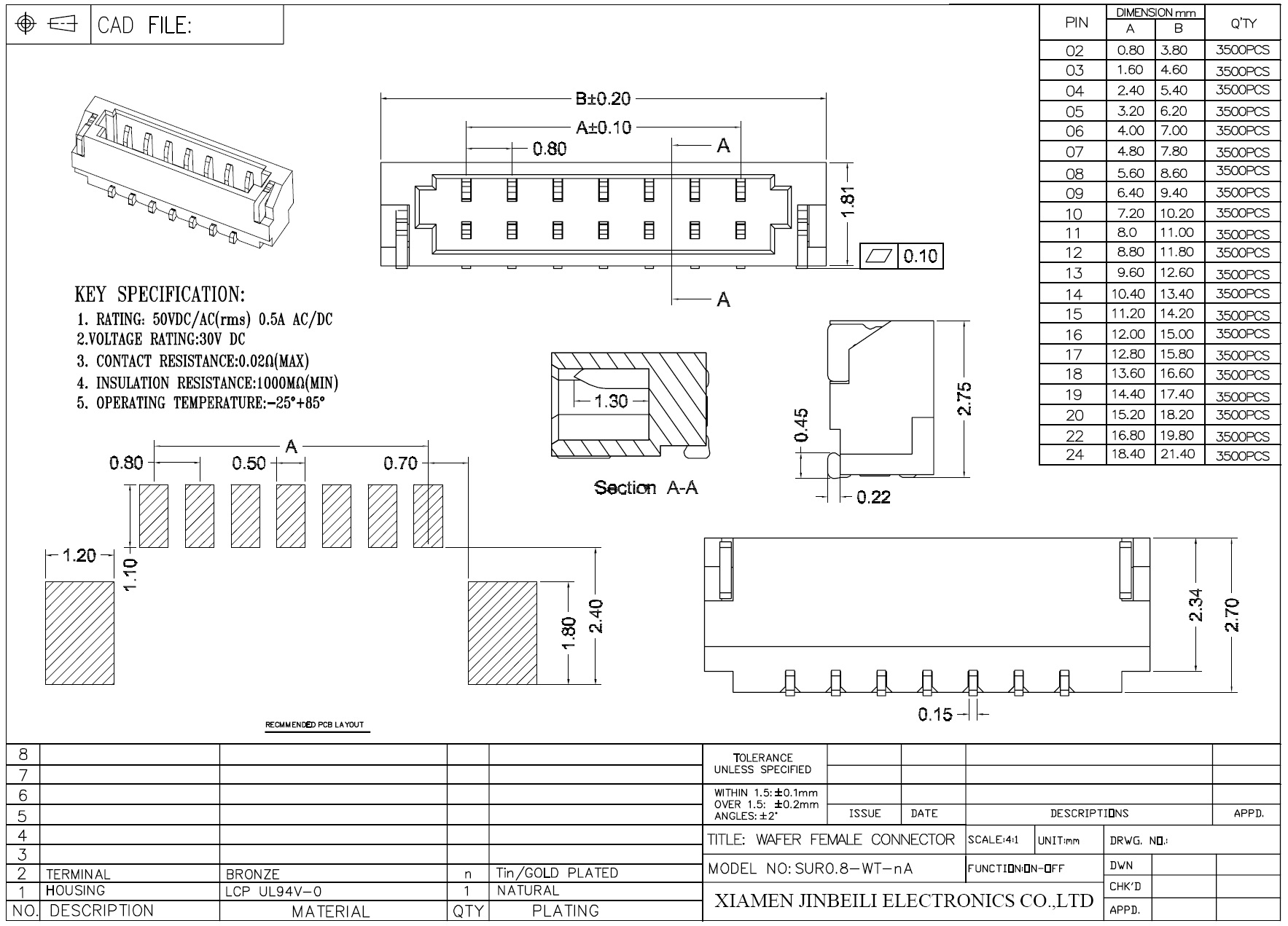

Datasheets :
