Product Descriptions :

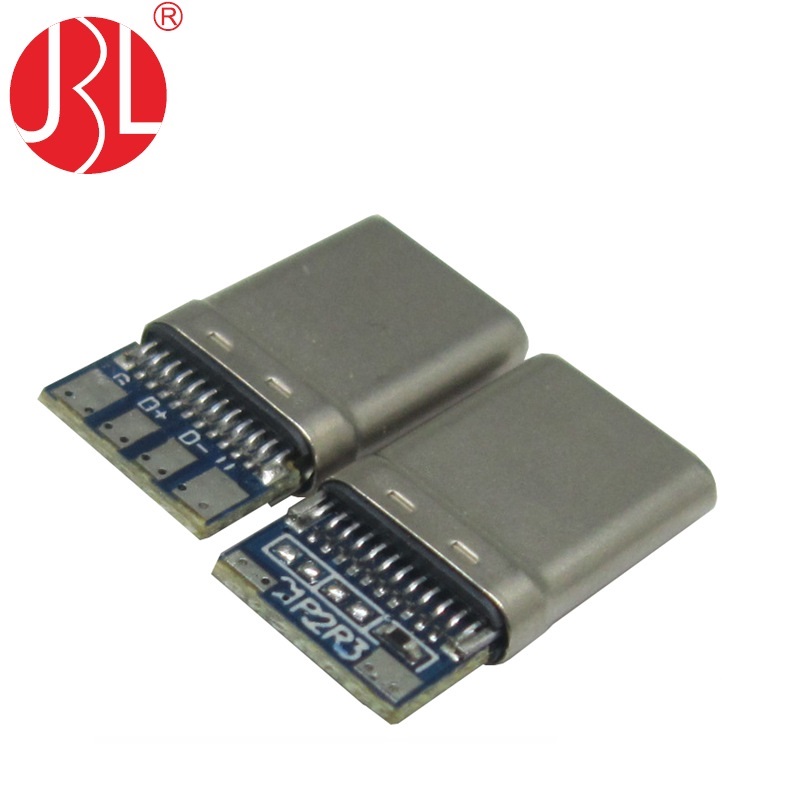

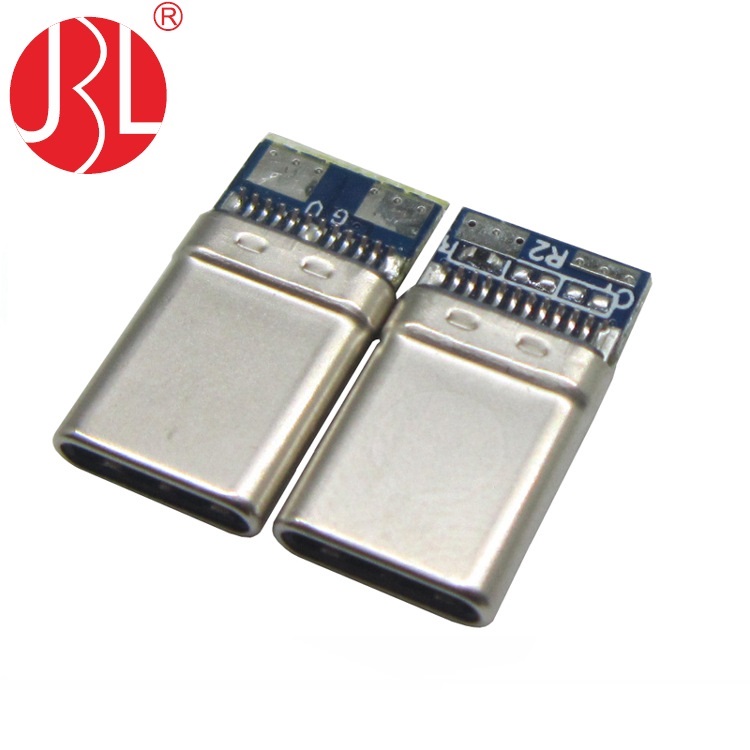

Product name : USB Type C with PCB

Positions : 24 Pin

1.Current Rating: 5A MAX.

2.Voltage Rating: 20V AC/DC

3.Contact Resistance: 40mΩ

4.Insulation Resistance: 100MΩ

5.Dielectric Withstanding Voltage: 100VAC

6.Durability: 10,000 Cycle

7.Insertion Force: 5N to 20N

8.Extraction Force: 8N to 20N

9.Operating temperature range: -40°C~+105°C

10.Recommended IR Reflow(Wave Soldering) Temperature: 260°C

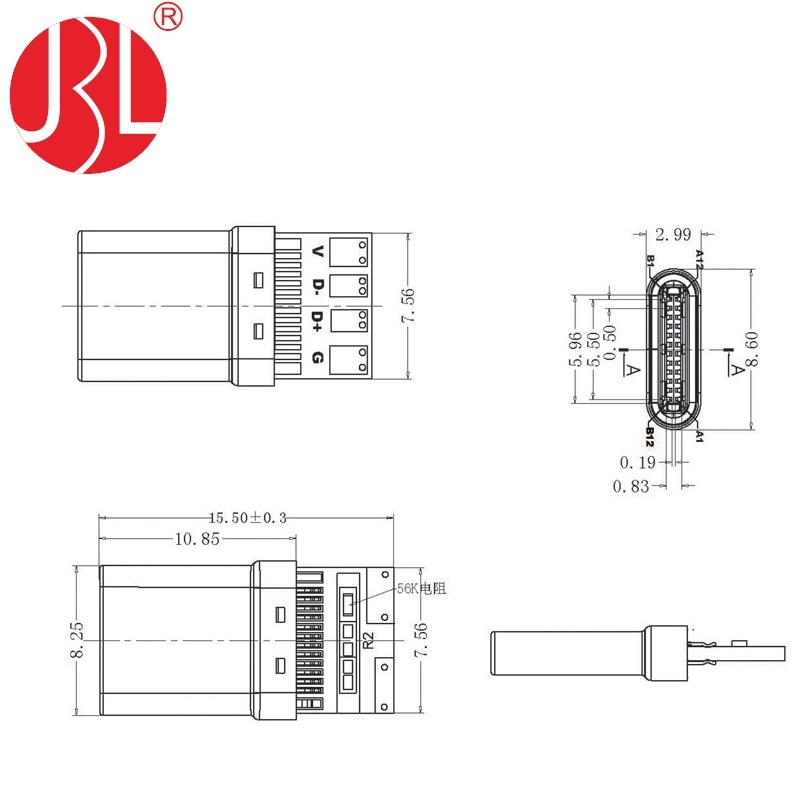

Datasheets :

Product design & development, Tooling ,Moulding and Manufacturing :
