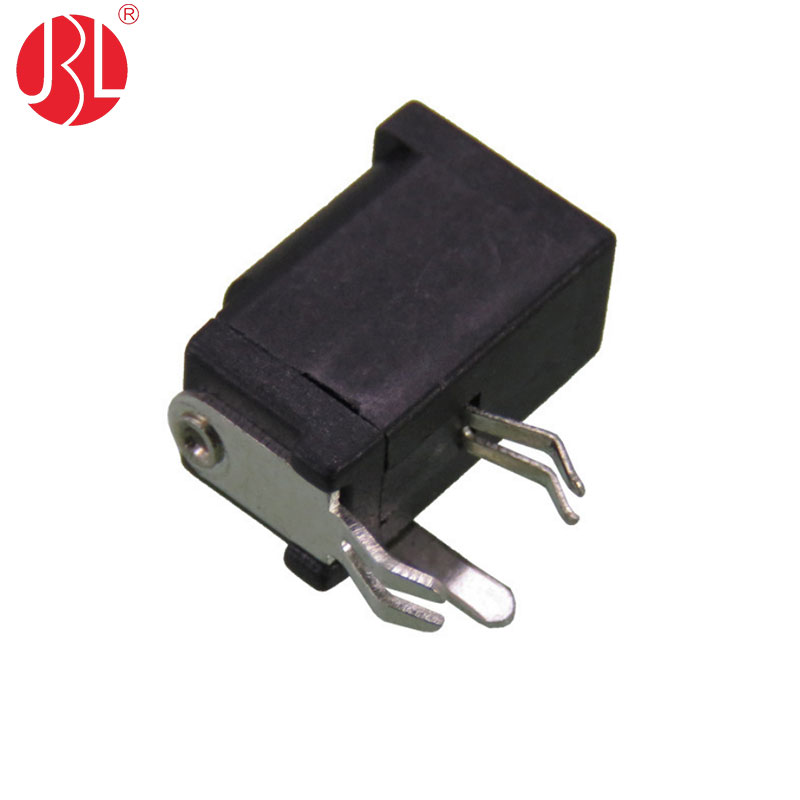

The DC power jack is a through-hole, right-angle type designed for reliable power connections in electronic devices. It features center pin options of either 1.0mm or 1.3mm, providing versatility to match various power supply requirements. With a power rating of DC24V 3A, this jack can handle sufficient current for many applications.

As a suitable alternative to CUI’s Same Sky DC connectors, specifically the PJ-013C and PJ-013D models, this DC power jack offers a comparable performance and footprint. Its right-angle design allows for efficient space utilization, making it ideal for applications where board space is limited.

The jack’s through-hole mounting ensures secure and stable connections, reducing the risk of accidental disconnection. Overall, this DC power jack is a reliable and versatile component for ensuring a steady power supply in a range of electronic devices.

Datasheets :
