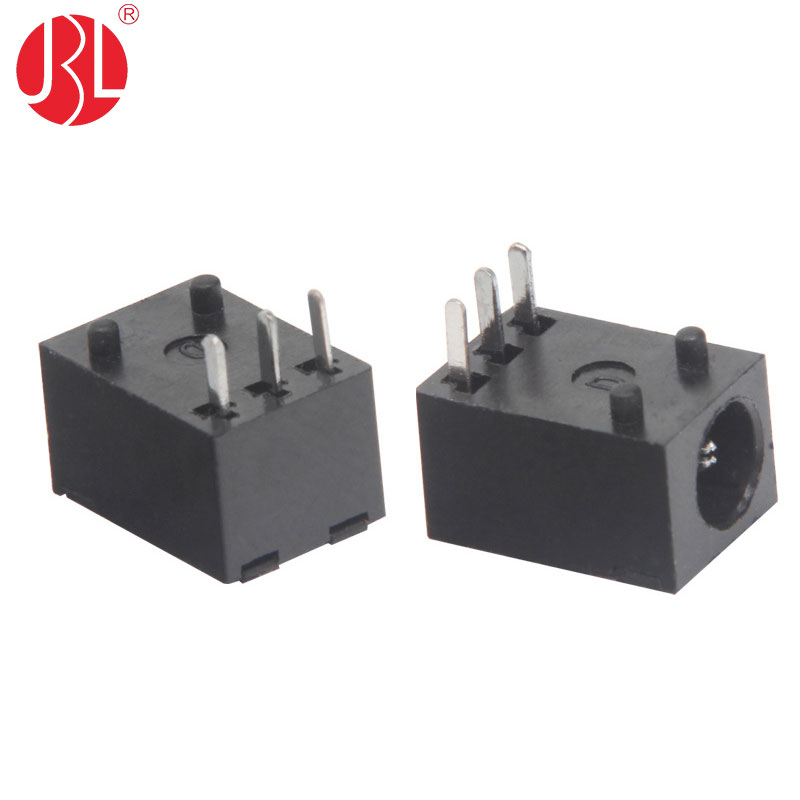

The DC power jack is a through-hole right-angle connector designed for use in power supply applications. It features center pin options of either 1.0mm or 1.3mm, providing versatility for different electronic devices. The power ratings for this jack are DC24V at 2A and DC24V at 3.5A, ensuring it can handle a range of power requirements.

This jack serves as a suitable alternative to several popular models, including PJ-036D, PJ-036CH, PJ-036DH, and PJ-036C. Its through-hole design allows for easy installation and secure connections, making it an ideal choice for various electronic projects. With its compact size and reliable performance, the DC power jack is a must-have component for any engineer or DIY enthusiast working with DC power supplies.

Datasheets :
