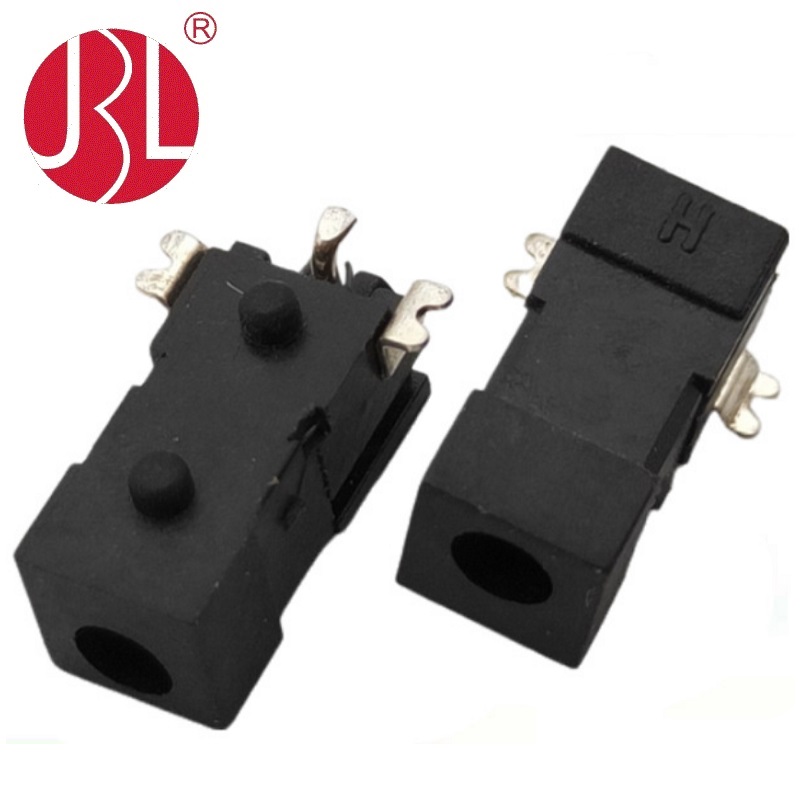

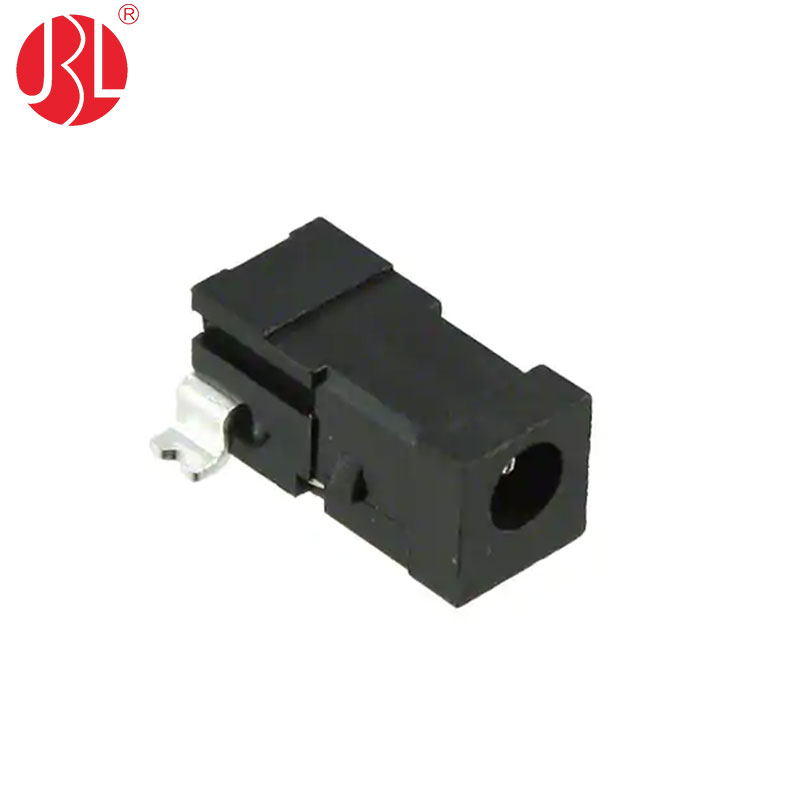

The DC power jack in question is an SMT (Surface Mount Technology) right-angle connector designed for efficient power delivery. Featuring a center pin diameter of 0.65mm, this compact jack is rated for DC24V at 2.5A, making it suitable for a range of low-voltage, high-current applications. Its design allows for easy integration into printed circuit boards, thanks to the SMT mounting style, which reduces the overall footprint and simplifies the assembly process.

Compatible as an alternative to CUI Same Sky’s PJ1-022-SMT-TR connectors, this DC jack offers a reliable and cost-effective solution for powering electronic devices. The right-angle orientation allows for flexible cable routing and space-saving in tight enclosures. With its robust construction and electrical specifications, this DC power jack is an ideal choice for a variety of applications, including industrial controls, automation systems, and consumer electronics.

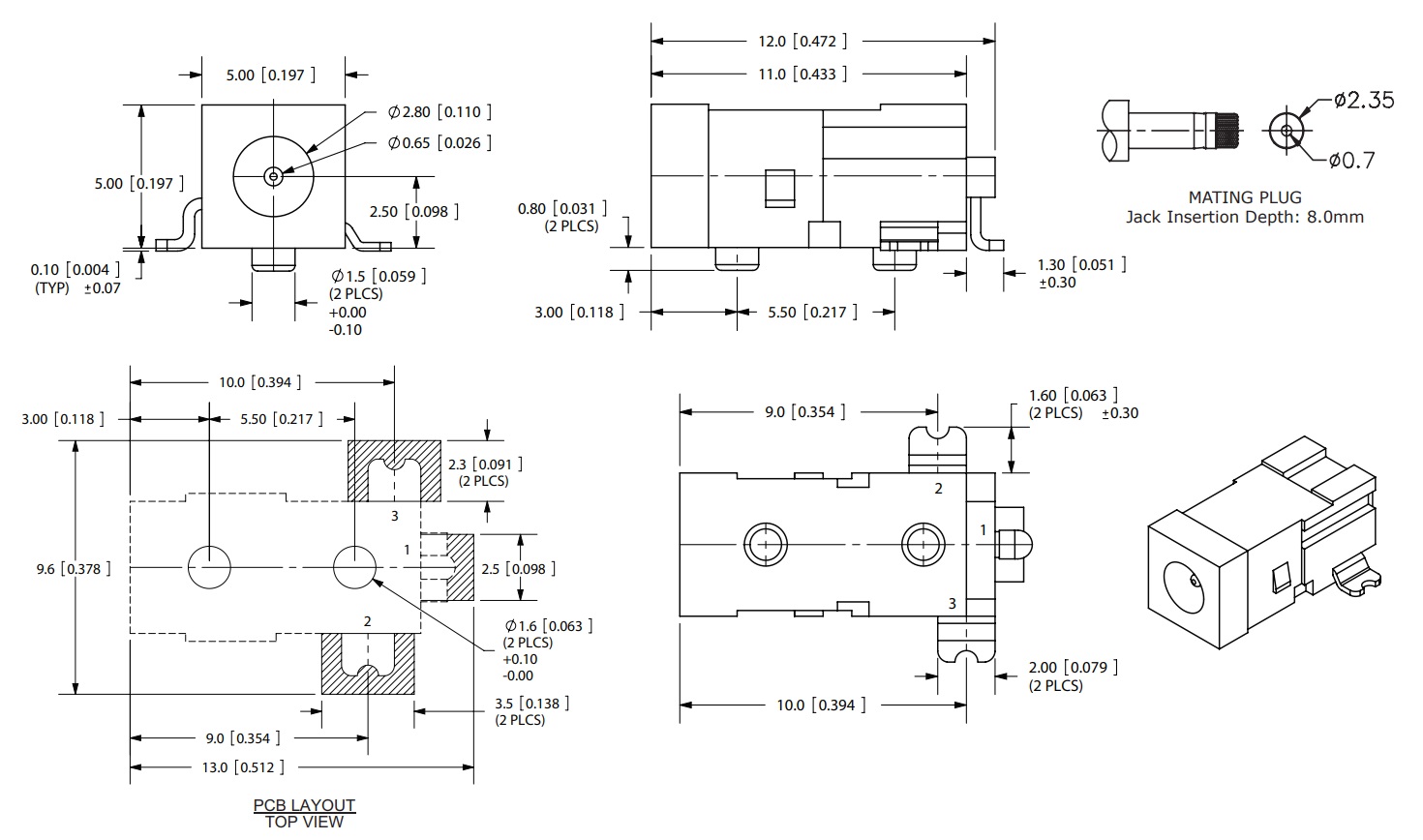

Datasheets :
