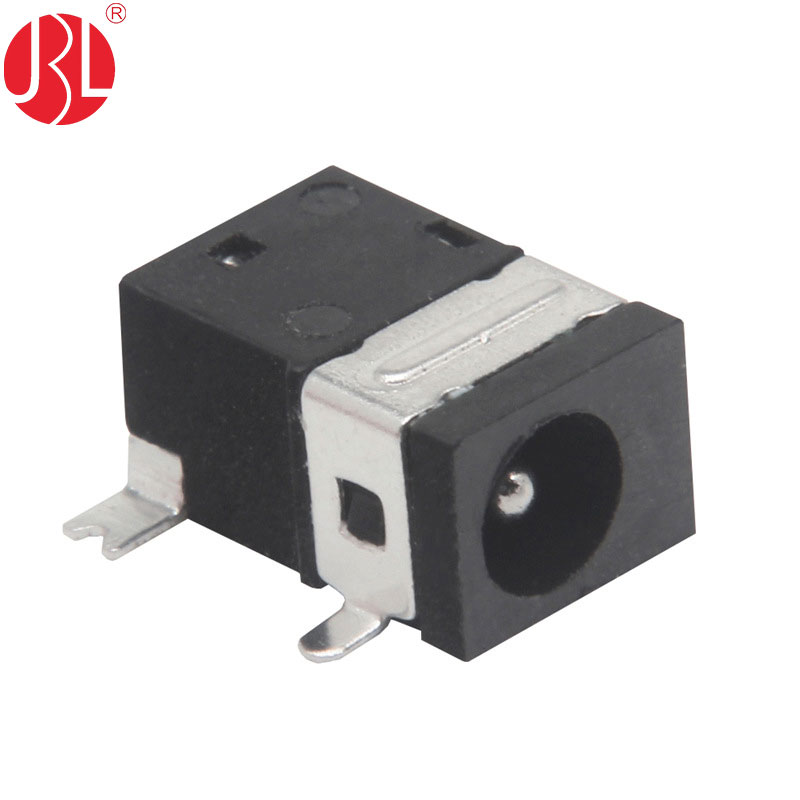

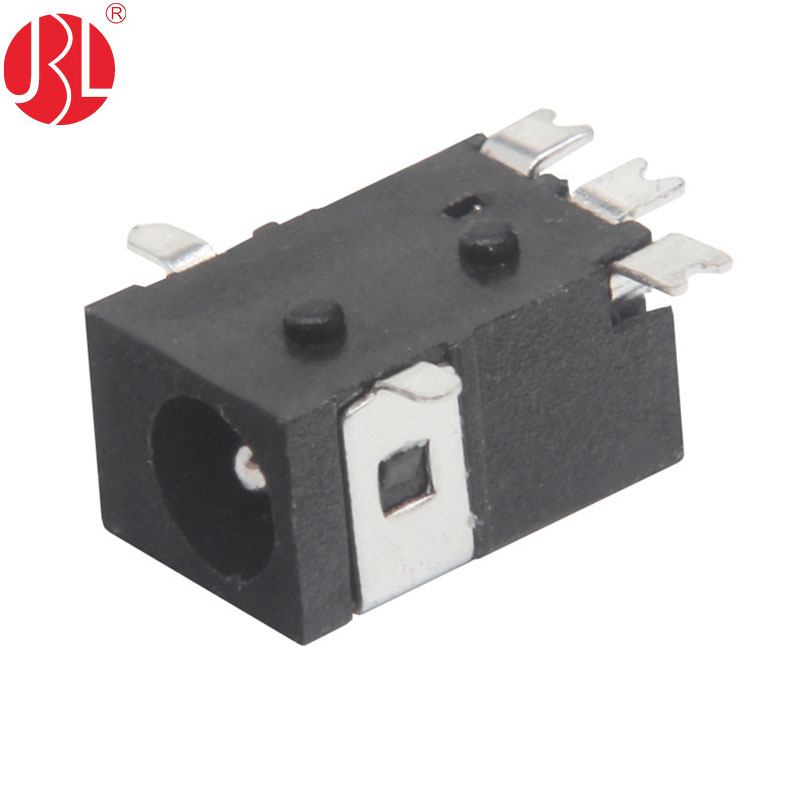

The DC power jack is an SMD (Surface Mount Device) right-angle connector designed for efficient DC power supply integration. It features a sleek, compact design suitable for space-constrained applications. The jack offers versatility with center pin options of 1.0mm, 1.3mm, and 1.65mm, allowing compatibility with a range of power sources and devices.

This DC jack serves as a reliable alternative to the CUI Same Sky DC connector PJ-075DH-SMT-TR and Adam Tech models ADC-037-4-T/R and ADC-037-3-T/R. It provides a secure, stable connection for power delivery, ensuring your devices receive consistent and uninterrupted power. Its right-angle orientation optimizes board space utilization, making it an ideal choice for electronic projects requiring efficient power management solutions.

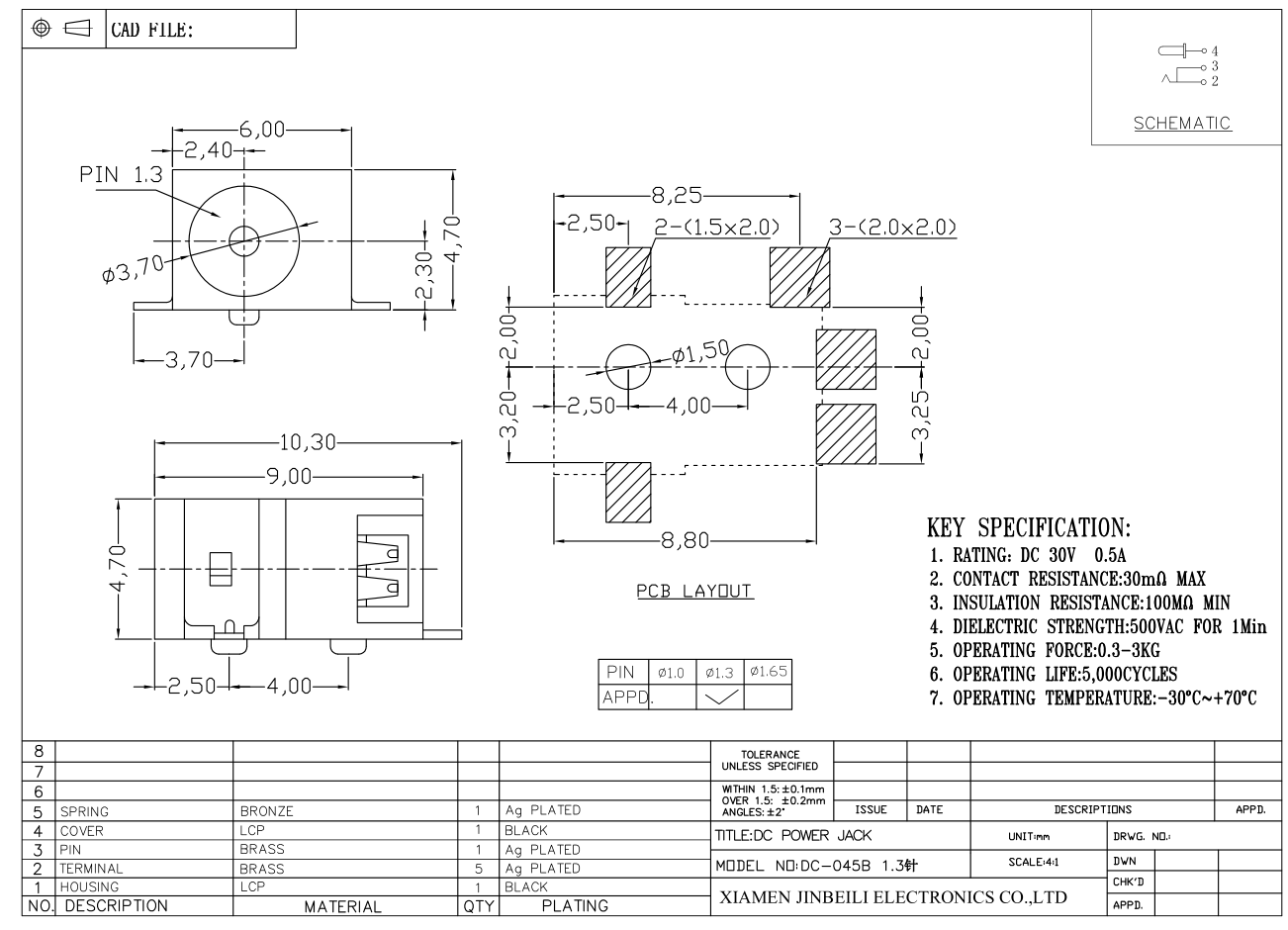

Datasheets :
