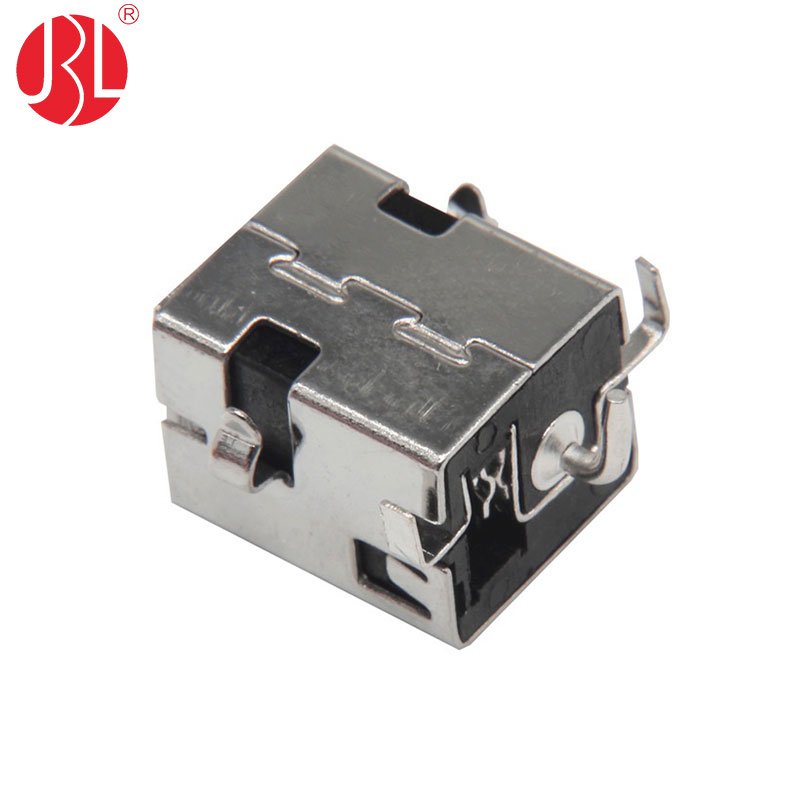

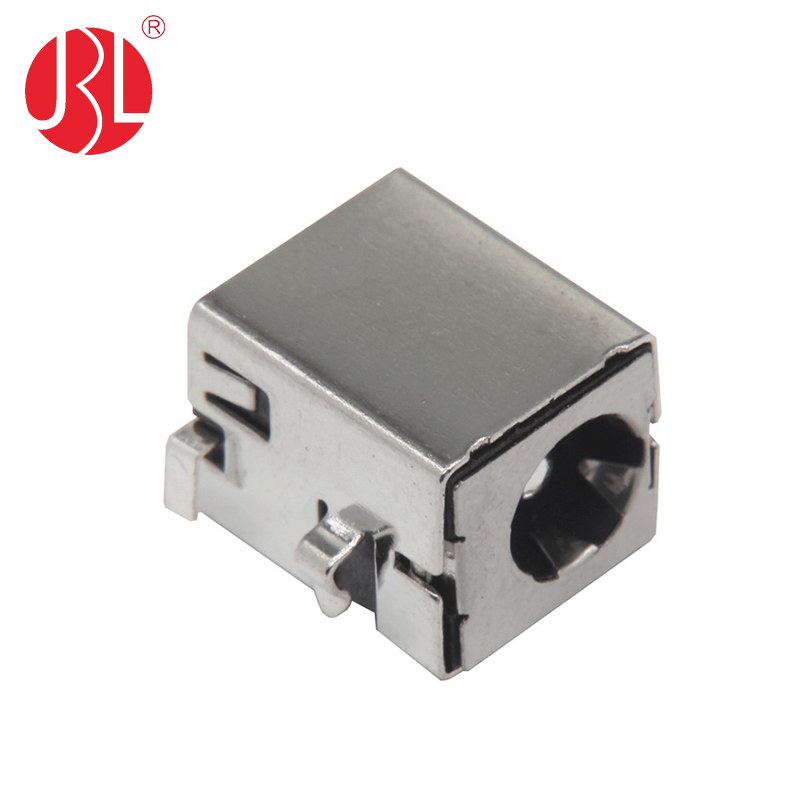

The DC power jack is a mid-mount board cutout, through-hole right-angle connector designed for efficient power delivery. It offers center pin options of 5.5mm2.5mm and 5.5mm2.1mm, compatible with various power sources. With a power rating of DC24V 5A, it ensures reliable performance in a wide range of applications. This DC jack serves as a direct replacement for popular models such as Kycon’s KLDHCX-MM-0202-BTR/ATR, Tensility’s 54-00254/54-00253, Adam Tech’s ADC-102-2-T/R, and GlobTek’s JACK-C-SMT-10A-RA(R)/JACK-L-SMT-10A-RA(R). Its compact design and versatile pin options make it an ideal choice for integrating into various electronic devices.

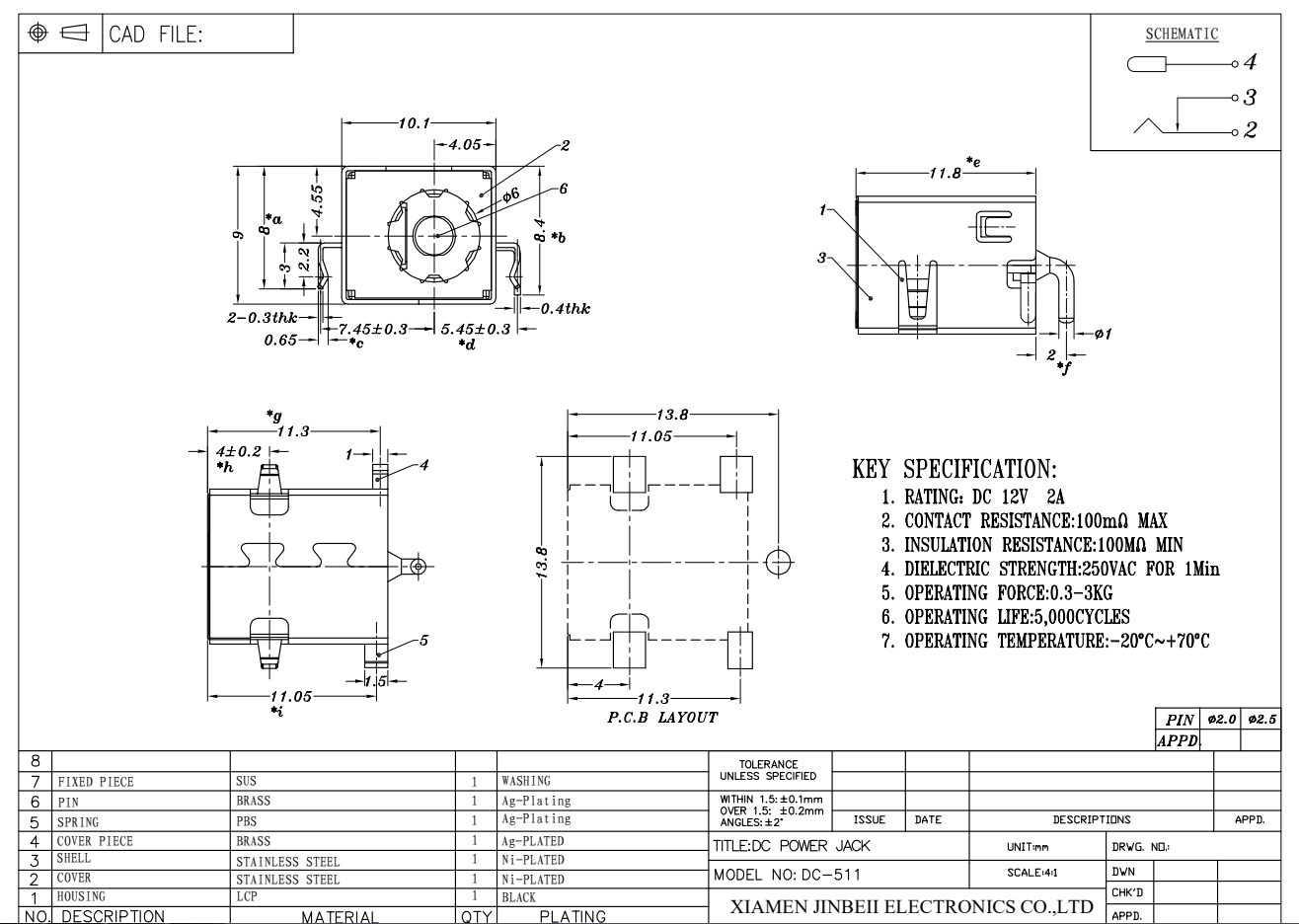

Datasheets :
