DC-5521-L14 Free Hanging DC Power Connector

Short Description:

Free Hanging DC Power Male Connector 5.5*2.1mm 5.5*2.5mm Solder Type DC Power Plug


  • Item: DC Connector
  • Mounting: Free Hanging
  • Power Rated: DC30V 2A
  • Center Pin Options: 5.5*2.1mm, 5.5*2.5mm
  • Product Detail

    Product Tags

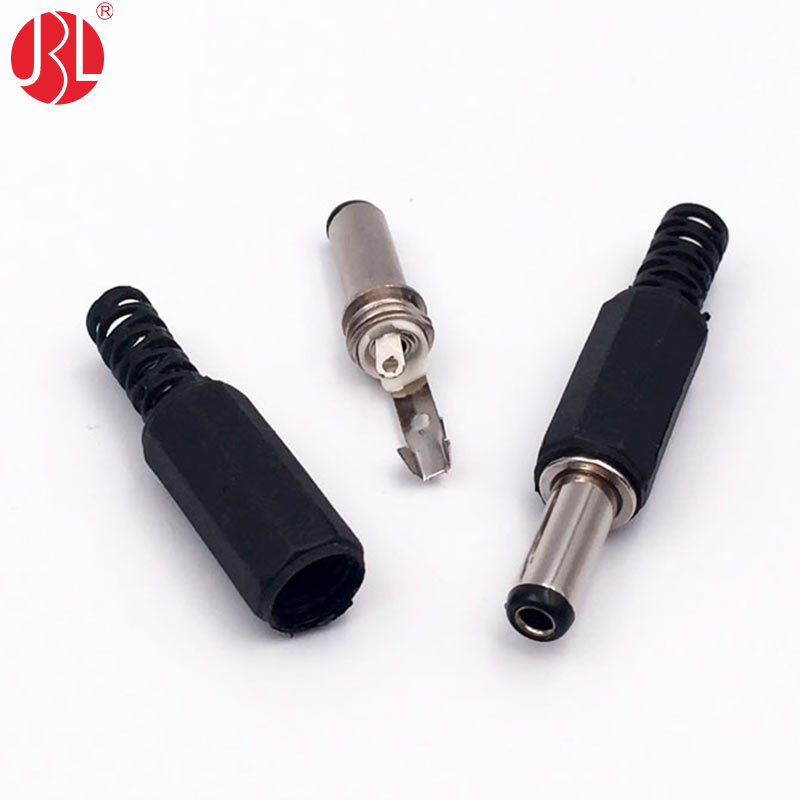

    DC Power Plug (Free Hanging/Solder Type)
    This DC power connector features a standard barrel design with center pin options of 5.5×2.5mm or 5.5×2.1mm, ensuring compatibility with common power jacks. Rated for DC 30V, 2A, it is suitable for low-power applications. The contact length is 14mm, providing secure insertion depth.

    Constructed as a free-hanging (solder type) plug, it allows direct wire termination for easy installation. The durable housing ensures reliable power transmission in electronics, adapters, and small devices.

    Key Features:

    • Center Pin Sizes: 5.5×2.5mm or 5.5×2.1mm
    • Voltage/Current Rating: 30V DC, 2A
    • Contact Length: 14mm
    • Type: Solder-tab terminals for wire connection

    Ideal for DIY projects, replacements, or custom power solutions. Let me know if you’d like any modifications!

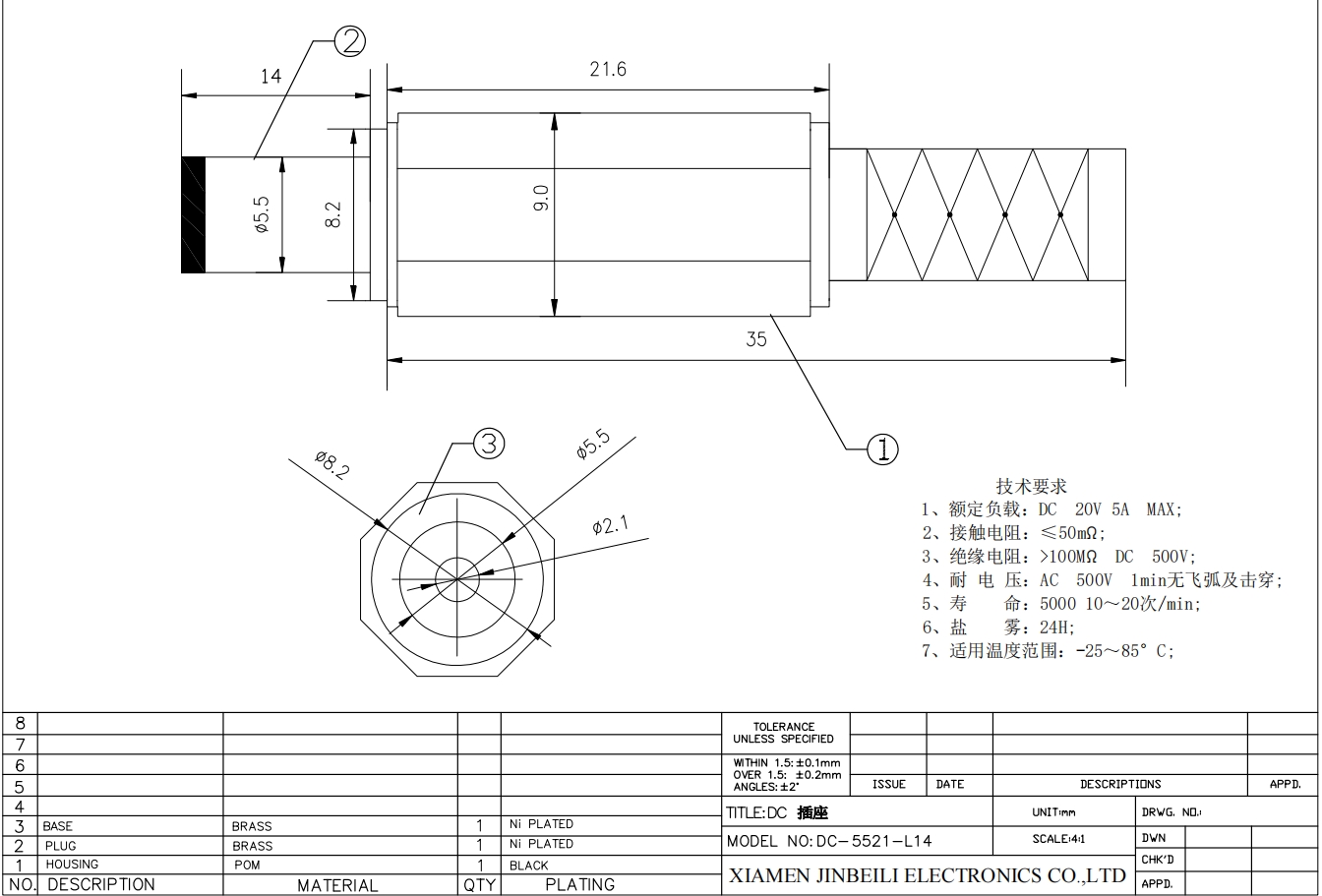

    DC-5521-L14(1)www.jbl-ec.com
