Internal Size 2.8×2.8 mm Switch Cap for Push Button Switch PS-22E05

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: JBL

Model Number:: C6273-28XX

Type:: switch push button

Application:: Pushbutton switch / Tact switch

Supplier Type:: Original manufacturer

Media Available:: datasheet, Photo, EDA/CAD Models

Brand:: Push button Switch Cap

Features:: Round Cap

Mounting Feature:: Back or Front of Panel

Size / Dimension:: customizable

Color:: Gray / Black / Red / White

Material:: Nylon

Operating Temperature:: -30°C ~ +85°C

Mounting Type:: insert

Switch Function:: switch cap

Packaging:: NO

Voltage Rating:: 30V

Illumination Voltage (Nominal):: 30v

Voltage – Switching AC:: NO

Voltage – Switching DC:: 30V

Power – Rated:: 3W

Voltage – Supply:: 8.5 ~ 30VDC

Display Mode:: Full color

LED Color:: /

Rated Voltage:: 30V

Current – Switching:: 100mA DC

Switch Height ::

6.2mm

Product Description

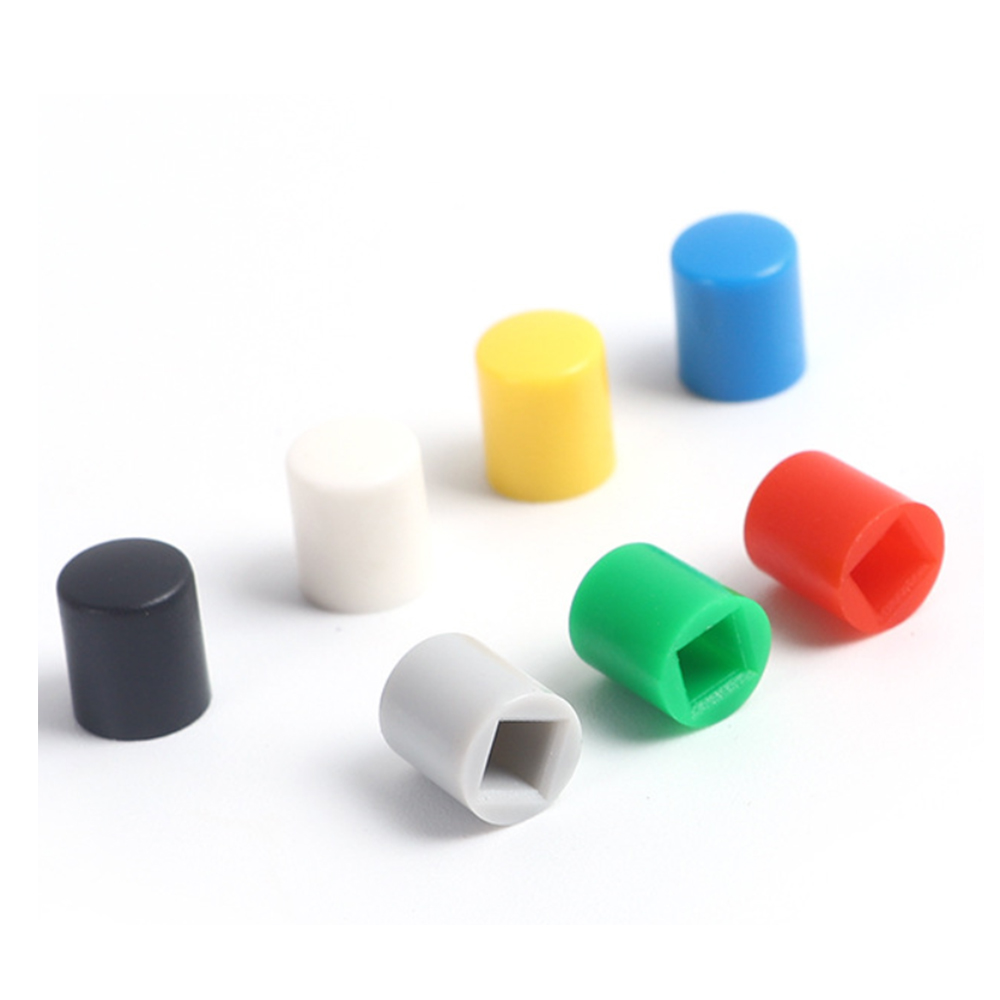

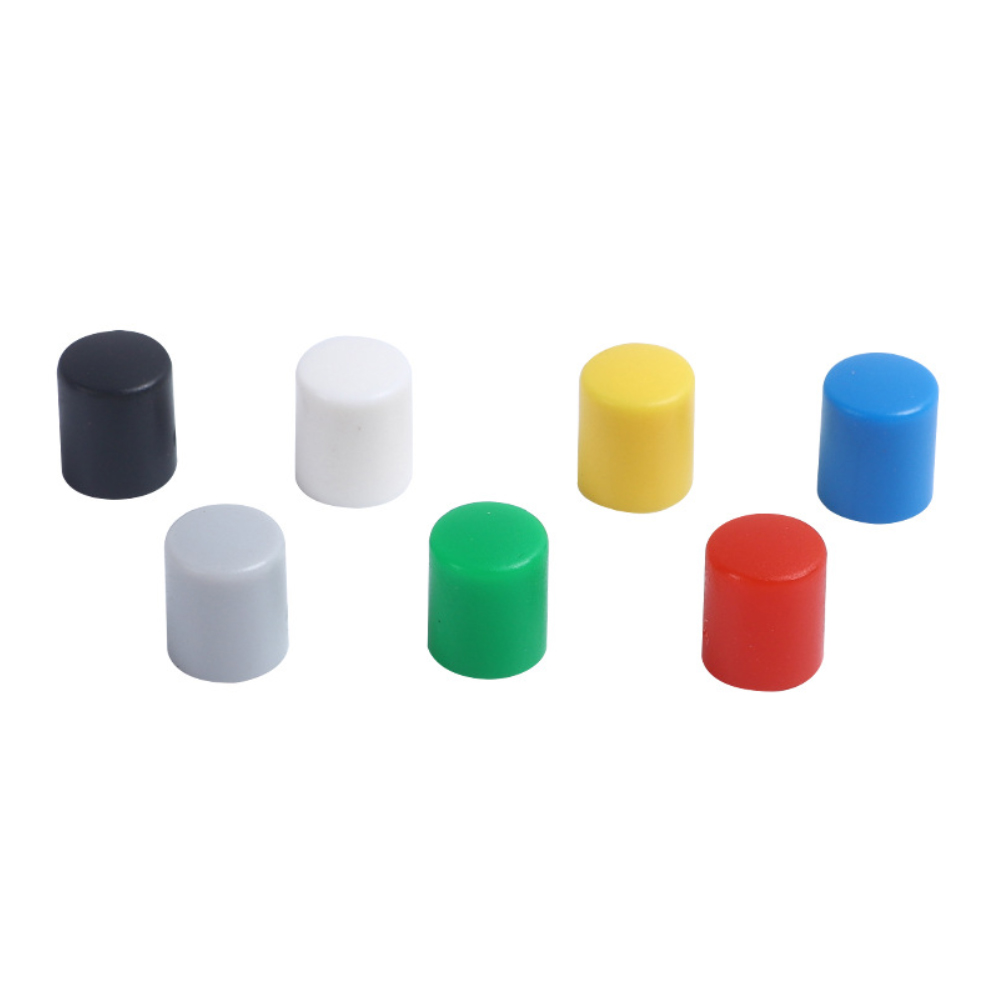

Product Name :	Push switch Cap
Compatible with:	Push switch
Switch Height :	6.2mm

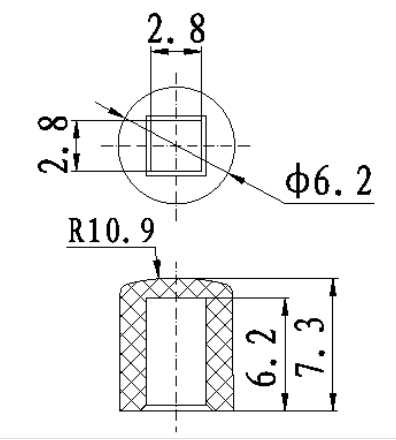

Internal size :	2.8×2.8 mm
Color Options :	Gray, Red, Black, Blude , green, Yellow

FEATURES :

1, 100000 cycle life or customizable2, Meet ROHS and REACH standards;3, Self lock or Non lock pushbutton switch4, Terminal & Travel customizable5 , DPDT

6, DIP

APPLICATIONS :

1 , Home Appliance

2, Consumer electronics

3, Medical equipment

4, Electronic toys

5, Computer/peripherals

6, , Testing / instrumentation
