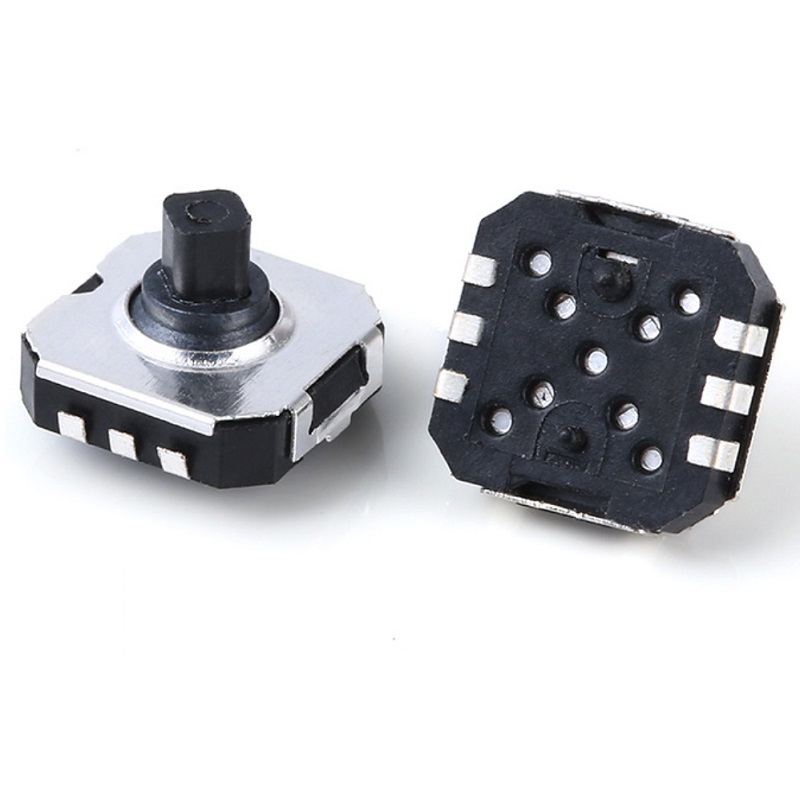

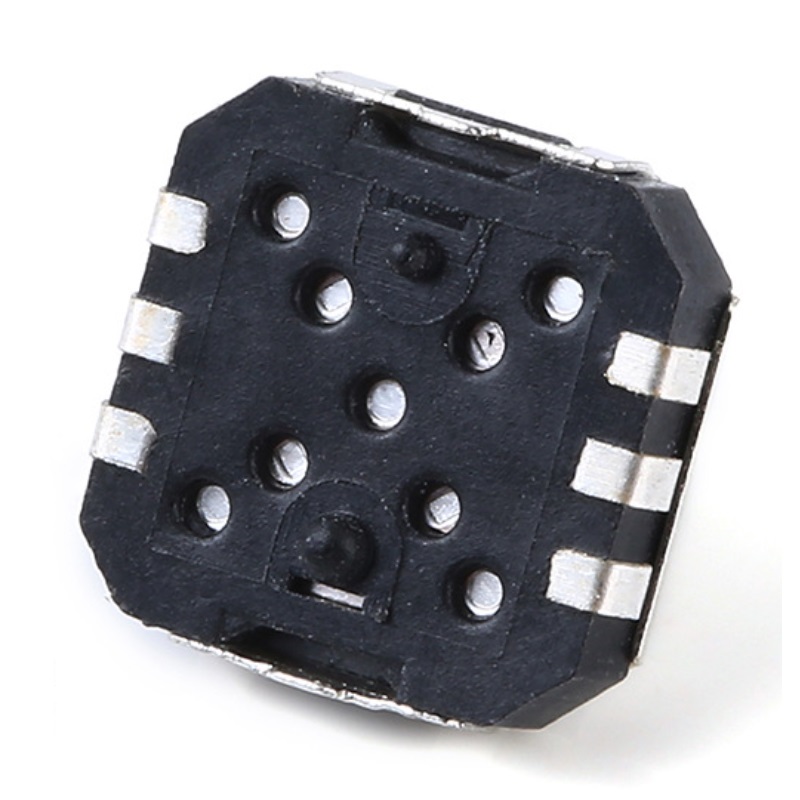

Interruptor de Control Multiple SMD DC30V 0.1A nterruptores tipo Joystick Interruptor de 5 vias SKRHAAE010 SKRHABE010
Overview
Quick Details
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
jinbeili
- Model Number:
-
TS-1501
- Type:
-
SWITCH TACTILE
- Application:
-
consumer electronics / Computer / audio visual
- Supplier Type:
-
Original manufacturer
- Cross Reference:
-
SKRHAAE010, 688-SKRHAAE010, SKRHABE010, 688-SKRHAB, SKRHADE010, 688-SKRHAD, SKRHACE010, 688-SKRHAC
- Media Available:
-
datasheet, Photo, EDA/CAD Models
- Brand:
-
tact switch
- Features:
-
5P5T
- Mounting Feature:
-
Back or Front of Panel
- Size / Dimension:
-
customizable
- Color:
-
BLACK
- Material:
-
Nylon
- Operating Temperature:
-
-30°C ~ +85°C
- Mounting Type:
-
Soldering
- Switch Function:
-
SMT
- Current Rating (Amps):
-
0.1A
- Voltage Rating – AC:
-
/
- Voltage Rating – DC:
-
12V
- Voltage:
-
12V
- Packaging:
-
NO
- Voltage Rating:
-
12V
- Illumination Voltage (Nominal):
-
12V
- Voltage – Switching AC:
-
NO
- Voltage – Switching DC:
-
12V
- Power – Rated:
-
1.2W
- Voltage – Supply:
-
8.5 ~ 30VDC
- Display Mode:
-
Full color
- LED Color:
-
/
- Rated Voltage:
-
12V
- Current – Switching:
-
0.1A
- D/C:
-
TS-1501
- Operating Force::
-
160±40 gf / Customizable
- Operating Life ::
-
100000 cyles / Customizable
- Dielectric Strength::
-
AC 250V for 1min
Product Description
|
Product Name :
|
Navigation Switch
|
|
Switch Rating :
|
DC 12V , 0.1A
|
|
Fuction :
|
5P5T
|
|
Travel :
|
Customizable
|
|
Timing:
|
Non-shorting
|
|
Contact Resistance :
|
100mΩ Max
|
|
Insulation Resistance:
|
100MΩ Min
|
|
Dielectric Strength :
|
AC 250V for 1min
|
|
Operating Force :
|
160±40 gf / Customizable
|
|
Operating Life :
|
100,000 cycles / Customizable
|
|
Operation Temperature Range :
|
-40°C ~ +85°C
|
FEATURES :
1, 100000 cycle life or customizable2, Meet ROHS and REACH standards;3, 7.5*7.54, Terminal & Travel customizable5 , 5P5T
6, SMT
APPLICATIONS :
1 , Home Appliance
2, Consumer electronics
3, Medical equipment
4, Electronic toys
5, Computer/peripherals
6, , Testing / instrumentation

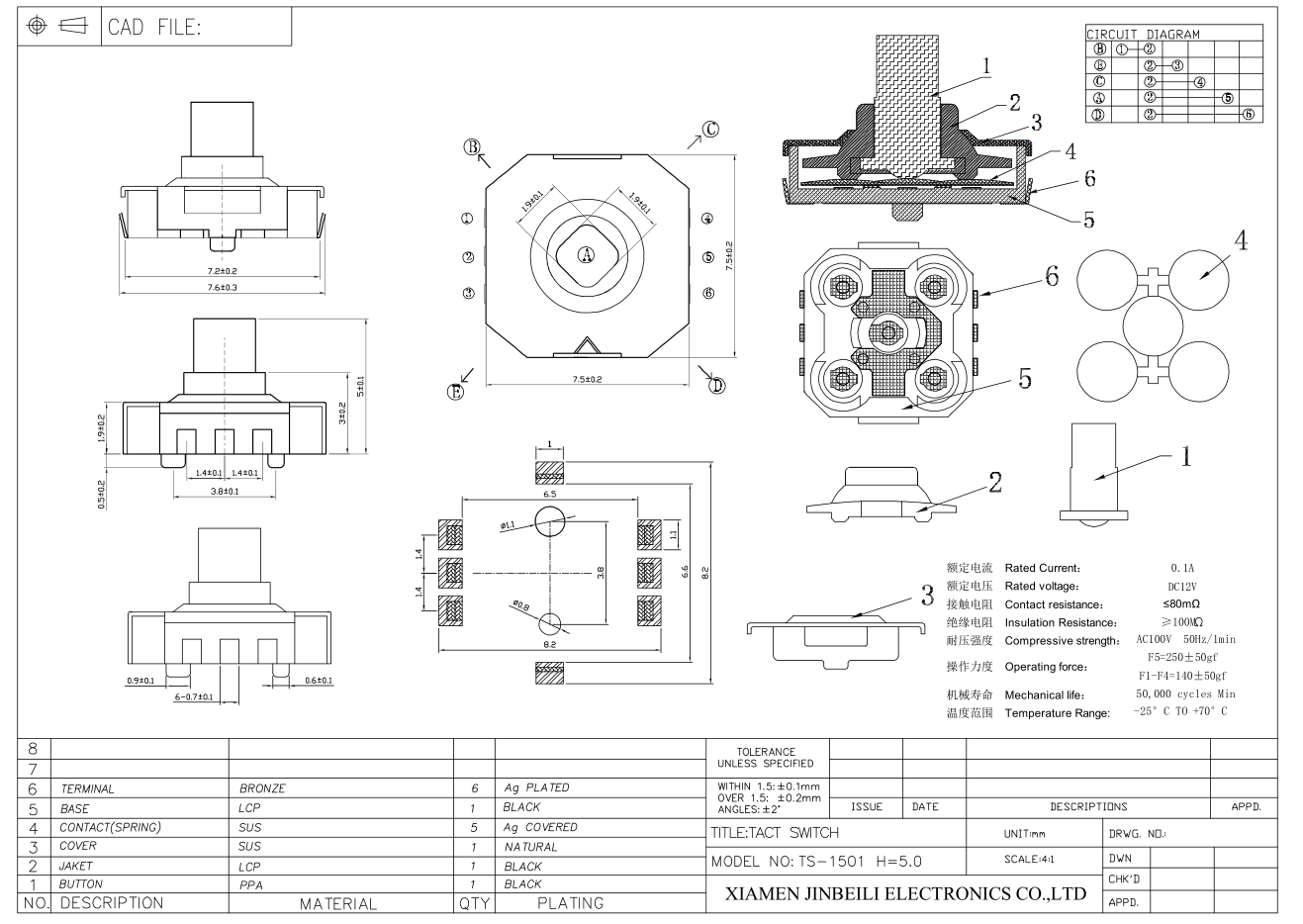

Spec Sheets
If you need original PDF Format data sheet to refer to , please contact us
Customization
PRODUCT CUSTOMIZATION
R&D Development
Our engineer design and develop products by software and 3D printer to provide a precision pattern
Tooling
jinbeili design tools for moduling, including metal cutting, surface processing to provide high quality products in a short time
Stampling
It can stample materials such as stainless steel, aluminum, and brass in diameters from 2mm to 30mm
Plastic Molding
All the plastic parts of switches are custom in our factory.Molding process materials includes: thermoplastic, silicone and elastomer
Automate Assembly Line
most of products are assembled by full automated , only a little by manual, for high efficiency. We have advanced facilities to assemble over 100000 pcs products per day
Testing & Inspection
We strictly test each product by this reflow soldering machine to test if the product is stable and high temperature resistance
Xiamen Jinbeili Electronicsl Co.,ltd specializes in the manufacture of connector parts, DC jack connectors and switches. The main products are computer high-speed USB connectors, tact switches, toggle switches, pushbutton switches, headphone sockets, power sockets, etc.
Our company was founded in 1999 and has more than 300 employees with 2 plants in Dongguan, Guangdong Province. Our products are widely used in electrical appliances, industrial equipment, meters, ventilation systems and fitness equipment. Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic products comply with RoHS and REACH environmental protection requirements.
Our company has passed ISO9001 and IATF 16949 quality management system certification. High-quality products, competitive prices and satisfactory after-sales service will win customer satisfaction and market share. Now that our products are welcomed by Europe, America and Southeast Asia, we will continue to develop in the right direction and continue to develop the jinbeili connector brand, and improve the quality of products and services to meet your specific needs.
ISO9001 CERTIFICATED
IATF 16949 CERTIFICATED
Factory Inside
Instructions
Notes :
1, Our switches are available for Reflow Soldering, Wave Soldering and Manual Soldering
2 , Operating Temperature Range : -20℃ to + 70℃
3, Please keep our products away from moisture and sunlight to avoid oxidation when storing them.
|
Type
|
Manual soldering
|
|
Max Temp
|
360℃
|
|
Max Time
|
2 S
|
|
Rework
|
less than 2 times
|
|
Operating Temp
|
-20℃ to + 70℃
|
|
Type
|
Wave Soldering
|
|
Pre-Heat Temp
|
130℃
|
|
Pre-Heat Time
|
1.3 minutes
|
|
Max Soldering Temp
|
250℃
|
|
Soldering Time
|
2s – 3s
|
|
Deliver Speed
|
1300mm/min
|
FAQ
1, Q : Could you provide me the spec data sheet for further reference ?
A: Of course. Please contact us via Alibaba , we will send you PDF format sheet as soon as possible
2, Q : Do you customize material of switch as buy’s requirement ?
A : Yes, we do. we customize different colors, materials, shapes etc. Please provide us your spec sheet and requirement
3, Q : Could I get a sample to test ?
A: Sure, we provide you free sample, but shipping cost should be paid by buyer
4, Q : How quick could you deliver a order ?
A: For custom order, it takes about 15 days normally. It depends on quantities of your order.
