16mm LED Indicator with Advanced Features for Industrial and Outdoor Applications

The 16mm LED Indicator is a robust, versatile signaling device engineered for reliability in demanding environments. Designed with a compact M16 panel-mount configuration, this indicator combines intuitive visual feedback with rugged construction, making it ideal for industrial machinery, automotive systems, marine equipment, and outdoor electronics.

Key Features

• Size & Mounting: The 16mm diameter body ensures compatibility with standard M16 mounting holes, offering a secure, flush-fit installation. Its low-profile design minimizes space requirements while maintaining durability.

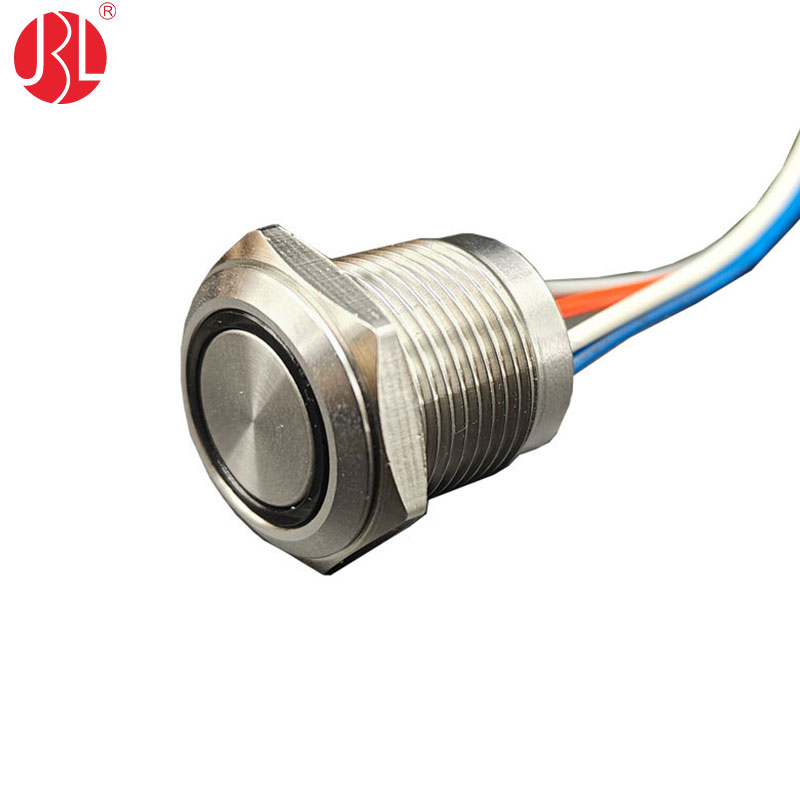

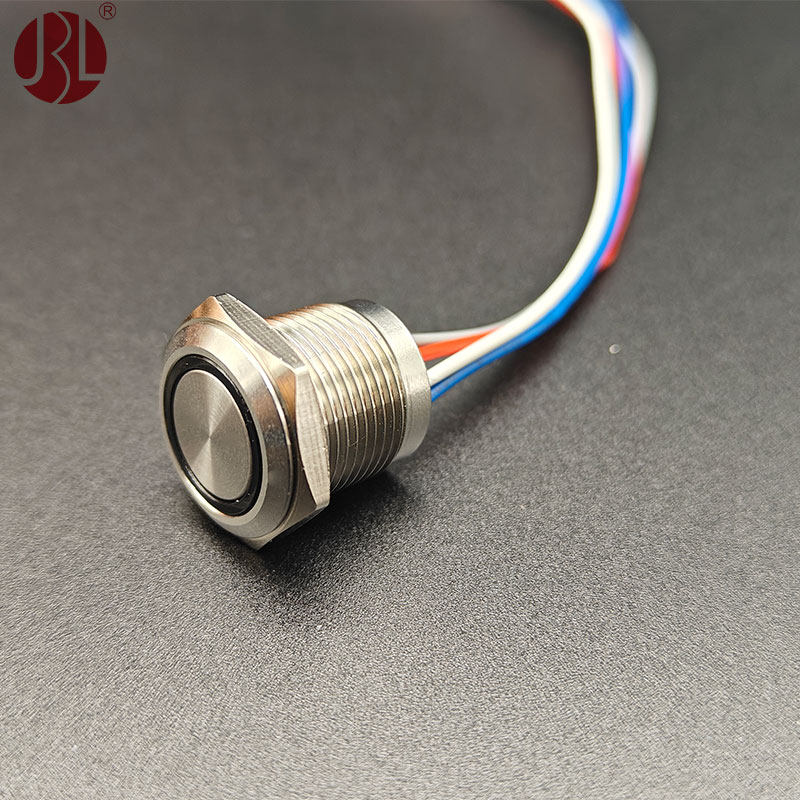

• Illumination Options: Choose between single-color (red, green, blue, yellow, or white) or RGB LEDs for dynamic lighting effects. The RGB variant supports customizable color transitions via PWM control, enabling status alerts, mood lighting, or multi-mode signaling. Both types feature a ring illumination design, providing 360° visibility for clear indication from any angle.
• Voltage Flexibility: Operates across a wide DC3V to DC12V range, accommodating low-voltage circuits (e.g., 3V battery systems) and standard 12V industrial setups. This adaptability reduces the need for additional power conditioning components.
• IP67 Waterproof Protection: Achieved through epoxy resin potting, a process where the LED and circuitry are encapsulated in a seamless, thermally conductive epoxy layer. This method eliminates gaps, preventing moisture ingress and enabling submersion in 1 meter of water for 30 minutes without failure. The epoxy also enhances shock resistance and extends operational lifespan in harsh conditions.

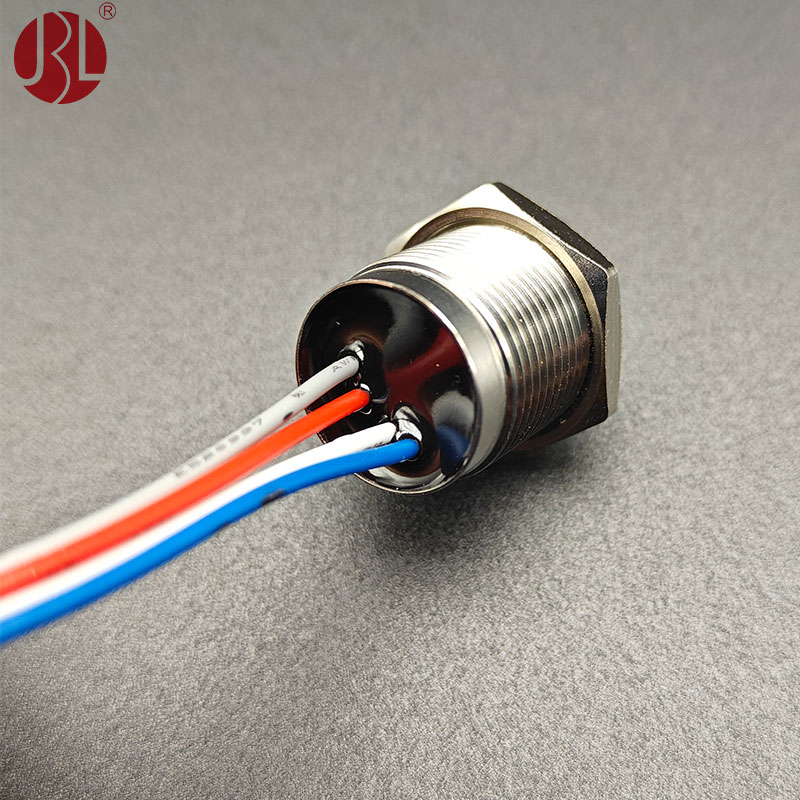

• Customizable Wiring: Wires are available in lengths from 50mm to 600mm, catering to compact assemblies or remote installations. Wire gauge options include 22AWG (0.32mm²), 24AWG (0.20mm²), and 26AWG (0.13mm²), balancing flexibility and current-carrying capacity. Stranded copper cores with tinned ends ensure reliable soldering and vibration resistance.

Applications & Benefits

• Industrial Control Panels: Clear status indicators for machine operation, fault alerts, or system readiness.
• Automotive/Marine: Dashboard lighting, navigation indicators, or under-hood diagnostics.
• Consumer Electronics: Smart home devices, audio equipment, or gaming peripherals.
• Outdoor Lighting: Solar-powered systems, security cameras, or agricultural monitoring equipment.

The epoxy-potted construction guarantees longevity in dusty, wet, or chemically aggressive environments, while the voltage and wiring options simplify integration into diverse projects. Whether for functional signaling or aesthetic enhancement, this LED indicator delivers performance, adaptability, and peace of mind.

Technical Summary

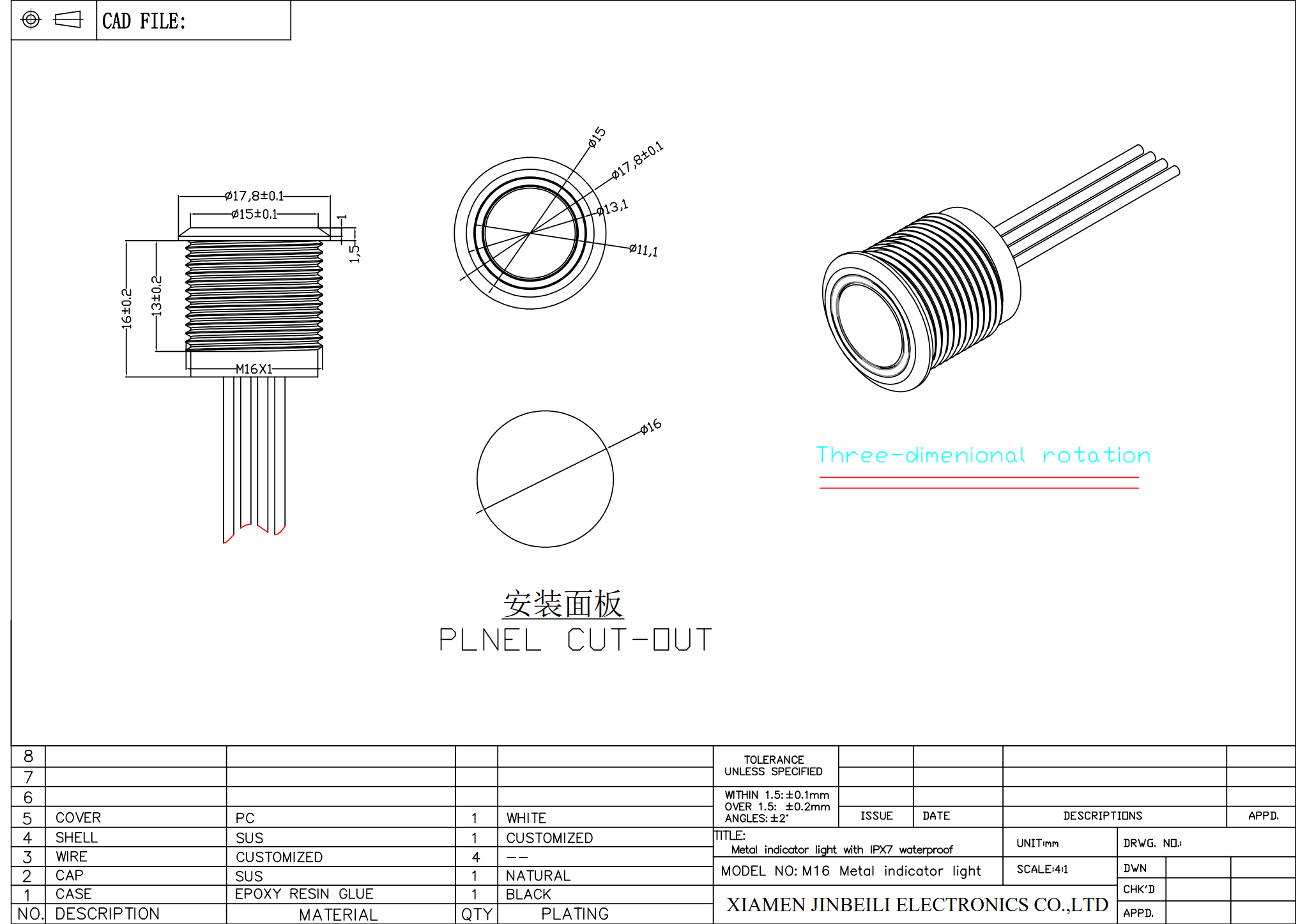

• Dimensions: 16mm diameter, 25–30mm depth (varies by model).
• Operating Temp: -20°C to +85°C (epoxy-rated).
• Certifications: CE, RoHS compliant; IP67 test reports available.
• Mounting: M16 nut/washer or snap-in (optional).

Ideal for engineers, hobbyists, and OEMs seeking a dependable, visually striking solution for their designs.
