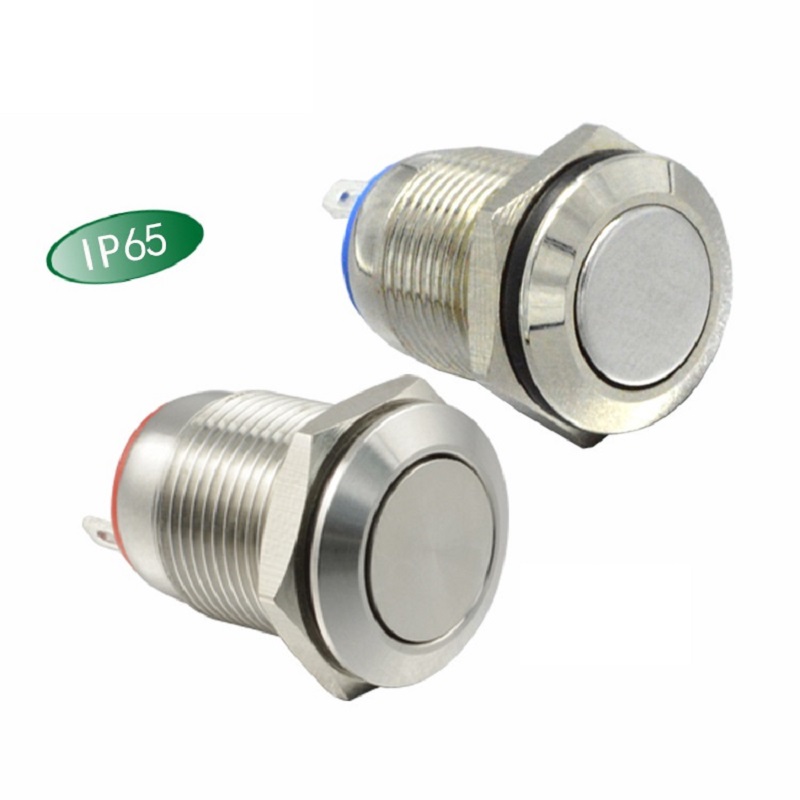

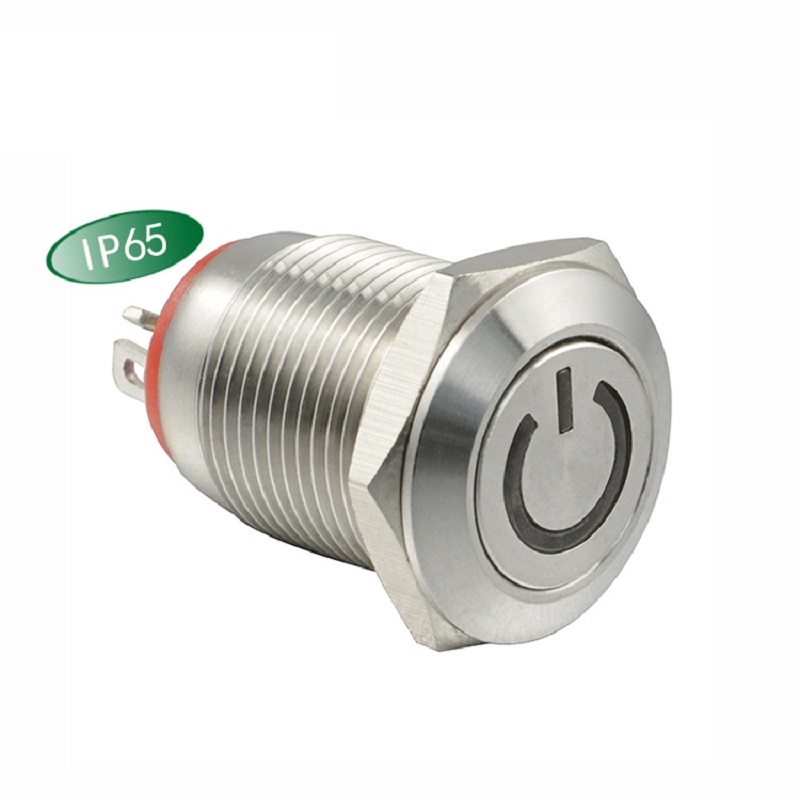

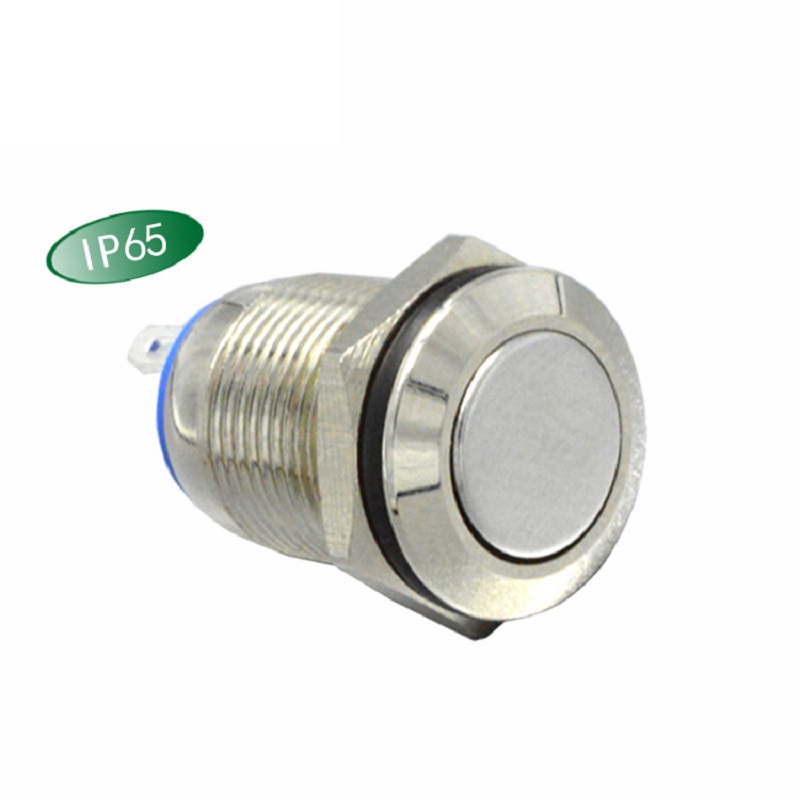

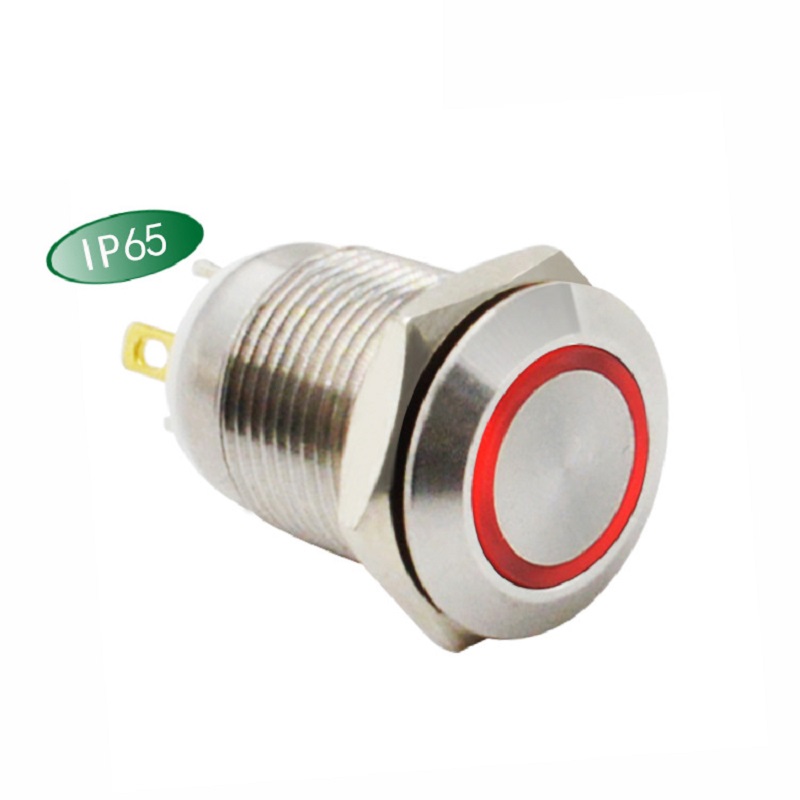

JINBEILI PLM12-11M-F-NNN-S0 Metal momentary waterproof emergency push button switch SPST OD12mm lock or non-lock with LED
Overview
Quick Details
- Certification:
-
CCC, VDE
- Whether the smart:
-
NO
- Place of Origin:
-
China
- Brand Name:
-
JINBEILI
- Model Number:
-
PLM12-11M-F-NNN-S0
- Protection Level:
-
IP67
- Max. Current:
-
2A
- Max. Voltage:
-
AC 250V
- LED:
-
Other
- Circuit:
-
SPST
- Current Voltage Rating:
-
0.4A/2A 250V AC/36V DC
- Dielectric withstanding voltage:
-
1000VAC for 1 min
- Contact Resistance:
-
50m ohm max
- Insulation Resistance:
-
100M ohm min
- Total Travel:
-
1.5mm±0.5mm
- Wave Soldering Temperature:
-
260°C
- Temperature:
-
-20°C~+85°C
- Degree of protction:
-
IP65
- Operating life:
-
200,000Cycles
Product advantage
1.The height of the switch handle can be customized according to customer needs;
2.Meet ROHS and REACH standards;
3.Have a professional technical team
Product Description
Details Images
contact us
If you need original PDF format date or other product details,pls contact us
Email:sales06@jblec.com
TEL:+86-592-7390769
Web:www.jblec.com
The way our products are used
Manual welding:
Temperature:360°c max
Time：25 MAX
Number of rewelding：25 time
wave soldering
Preheating temperature：130°c
Preheating time：1.3min
Welding temperature：250°c max
Welding time：2-3s
Chain speed(transfer speed):1300mm/min
Reflow soldering Surface of product temperature
Automatic flow soldering(for the product of SMT,type solder according to the following conditions
Company Profile
Compang Information
Xiamen Jinbeili Electronical Co.,ltd specializes in the manufacture of connector parts, DC jack connectors and switches. The main
products are computer high-speed USB connectors, tact switches, toggle switches, push button switches, headphone sockets, power
sockets, etc. Our company was founded in 1999 and has more than 300 employees.
products are computer high-speed USB connectors, tact switches, toggle switches, push button switches, headphone sockets, power
sockets, etc. Our company was founded in 1999 and has more than 300 employees.
Our products are widely used in electrical appliances, industrial equipment, meters, ventilation systems and fitness equipment.
Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic
products comply with RoHS and REACH environmental protection requirements.
Combining R&D experience and advanced manufacturing equipment, we proudly announce that all our switches and other electronic
products comply with RoHS and REACH environmental protection requirements.
Our company has passed ISO9001 and IATF 16949 quality management system certification. High-quality products, competitive prices
and satisfactory after-sales service will win customer satisfaction and market share. Now that our products are welcomed by
Europe, America and Southeast Asia, we will continue to develop in the right direction and continue to develop the JINBEILI connector
brand, and improve the quality of products and services to meet your specific needs.
and satisfactory after-sales service will win customer satisfaction and market share. Now that our products are welcomed by
Europe, America and Southeast Asia, we will continue to develop in the right direction and continue to develop the JINBEILI connector
brand, and improve the quality of products and services to meet your specific needs.
Our qualification certificates
Companies that we work with
Hot/More product
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.What does your company mainly produce?
Our company maily produce computer high-speed USB connectors, tact switches, toggle switches, push button switches, headphone sockets, power sockets, etc
2.Does your factory have export right?
Our factory has the right to export product to overseas markets by our own
3.What countries do you sell your products to?
Our products are mainly sold to America,Germany,Russia,Europe,South,Africa and so on
4.What are your strengths?
We have stable quality affordable price and quick delivery
5.Can you provide samples? Are the sample free?
Yes,we can provide samples .Normally,we provide free samples for test or quality checking.By the way The freight of the sample will be charged to you.
Our company maily produce computer high-speed USB connectors, tact switches, toggle switches, push button switches, headphone sockets, power sockets, etc
2.Does your factory have export right?
Our factory has the right to export product to overseas markets by our own
3.What countries do you sell your products to?
Our products are mainly sold to America,Germany,Russia,Europe,South,Africa and so on
4.What are your strengths?
We have stable quality affordable price and quick delivery
5.Can you provide samples? Are the sample free?
Yes,we can provide samples .Normally,we provide free samples for test or quality checking.By the way The freight of the sample will be charged to you.
6.Do you do OEM/ODM services?
Yes,we have many years experiences on ODM/OEM services
