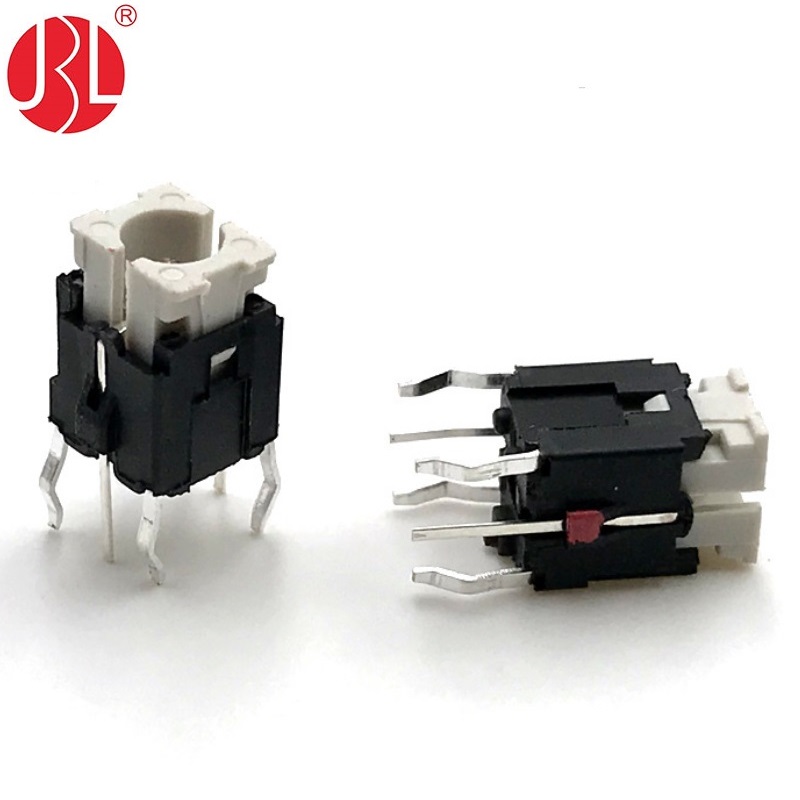

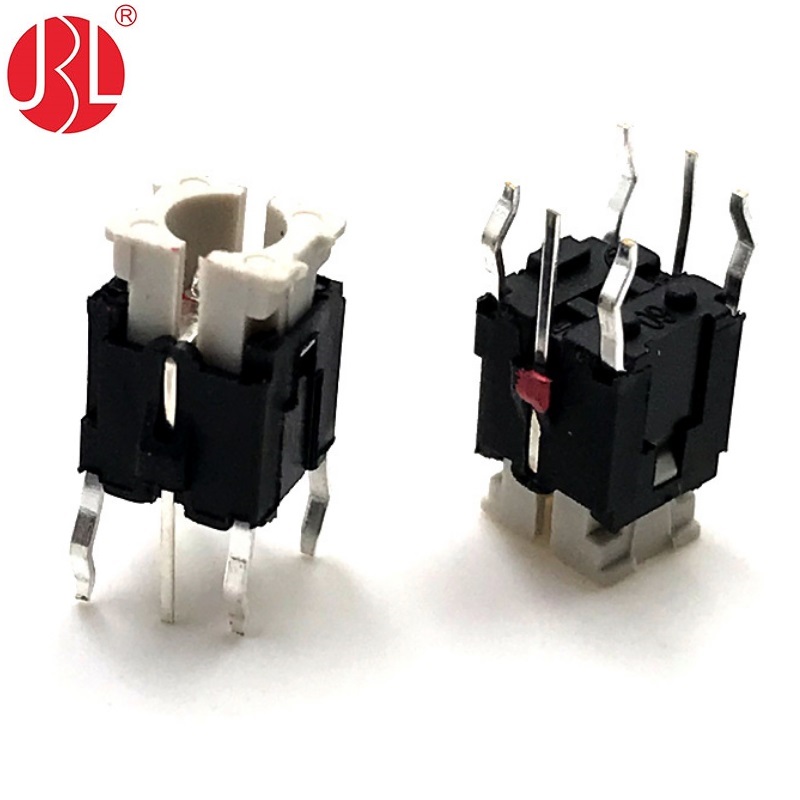

TD01-1D 6.0mm*6.0mm Illuminated Tactile Switch Tact Switch through hole DIP vertical type led colors can be customized

TD01-1D 6.0mm*6.0mm Illuminated Tactile Switch Tact Switch through hole DIP vertical type led colors can be customized Featured Image
  • TD01-1D 6.0mm*6.0mm Illuminated Tactile Switch Tact Switch through hole DIP vertical type led colors can be customized
  • TD01-1D 6.0mm*6.0mm Illuminated Tactile Switch Tact Switch through hole DIP vertical type led colors can be customized
  • TD01-1D 6.0mm*6.0mm Illuminated Tactile Switch Tact Switch through hole DIP vertical type led colors can be customized
  • TD01-1D 6.0mm*6.0mm Illuminated Tactile Switch Tact Switch through hole DIP vertical type led colors can be customized
  • TD01-1D 6.0mm*6.0mm Illuminated Tactile Switch Tact Switch through hole DIP vertical type led colors can be customized

Short Description:

Feature :
• Sharp “click” feeling with positive reliability feedback.
• Precise design terminal type adequate for DIP IC pitch size (multiple of 2.54mm).
• Several LED colors options.
• Adequate for DIP & SMT.
• Several cap legends options.

Applications :
• Operating switches in all types of electronic equipment such as audio apparatus, office equipment , communications apparatus, TV sets, VCRs, etc.


Download as PDF

Product Detail

Product Tags

Product Descriptions :

Product name : 6mm*6mm Illuminated Tact switch

Features : Through hole DIP Vertical

Power Rated : DC12V 0.05A

Dielectric Strength: AC 250V(50Hz or 60Hz) shall be applied for 1min

Operating force options : □120±40 gf □160±50 gf ■250±50 gf □300±60 gf Customization available

Illumination Type, Color : LED, Yellow Green (color Customization available)

Actuator Color options : white, black, red , Yellow / customization available

Operating life : 200,000 cycles

Working Temp : -25°C ~ 85°C

Packaging : bag

Datasheets :

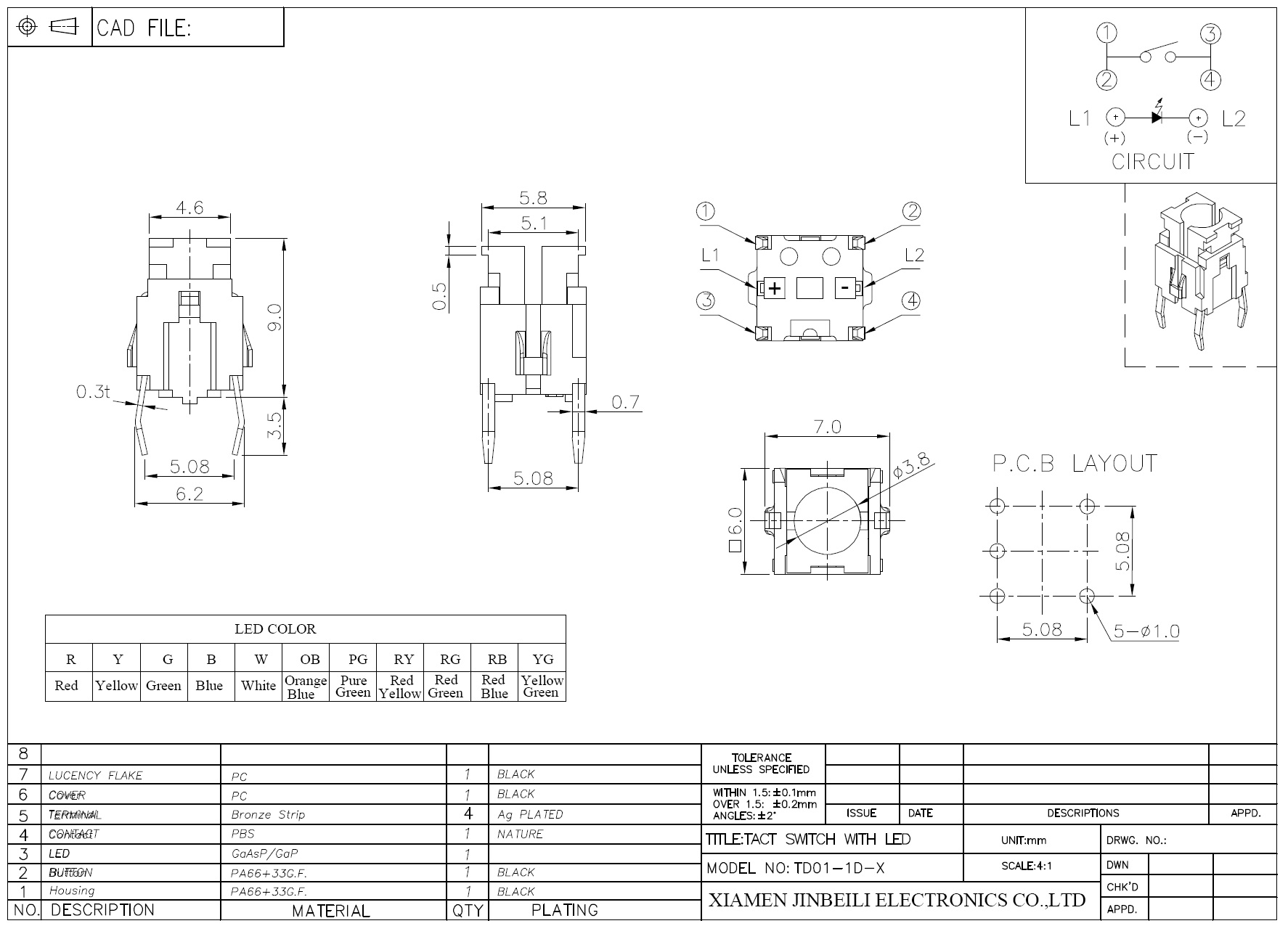

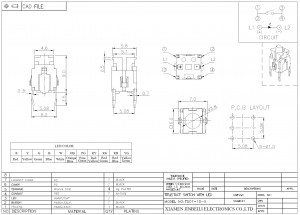

TD01-1D-4

TD01-1L
