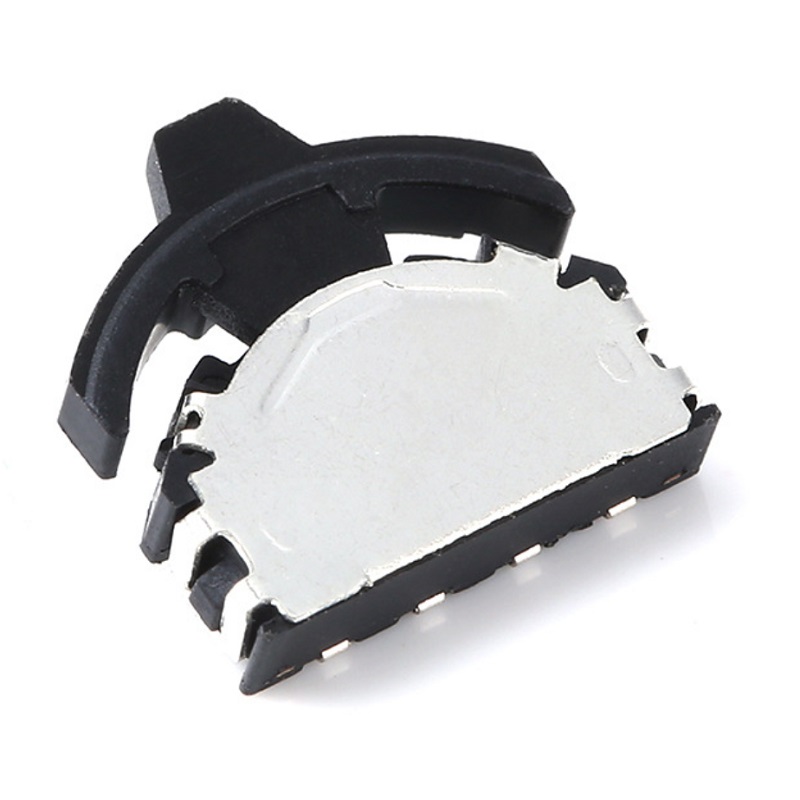

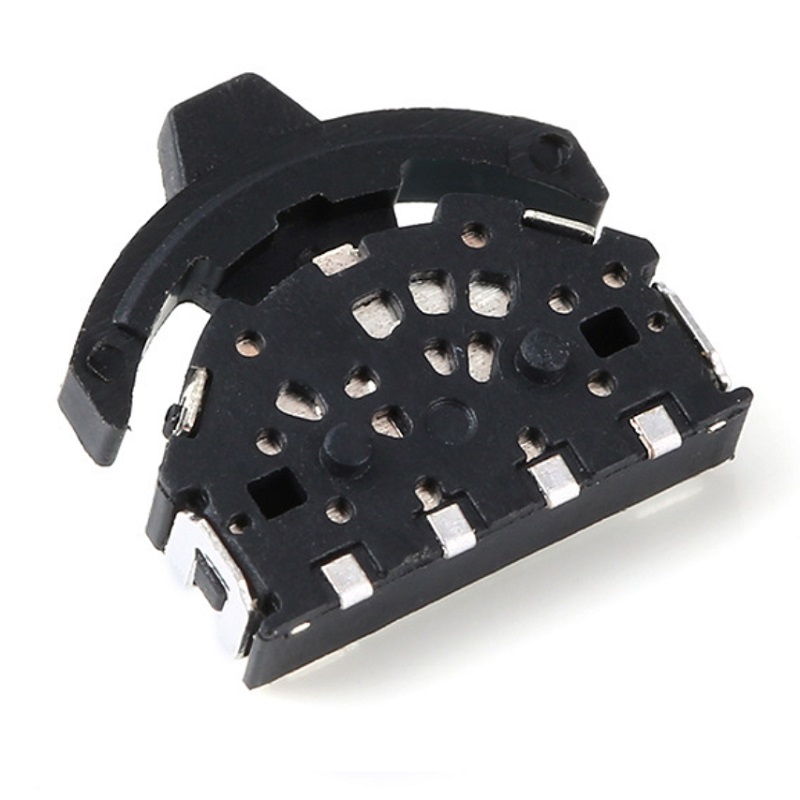

LS-1507B 3 Way Navigation Switch Interruptores tipo Joys Multi-Directional Switches DC 12V 0.1A SLLB120100 SLLB120300 SLLB120200

Short Description:


Product Detail

Product Tags

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
jinbeili
Model Number:
LS-1507B
Type:
Illuminated Tactile Switch
Application:
Studio
Supplier Type:
Original manufacturer
Cross Reference:
SLLB120200, SLLB120300, SLLB120100
Media Available:
datasheet, Photo, EDA/CAD Models
Brand:
3 WAY SWITCH
Mounting Feature:
Back or Front of Panel
Material:
Nylon
Operating Temperature:
-25°C ~ +70°C
Mounting Type:
Soldering
Switch Function:
SMT Switch
Current Rating (Amps):
0.1A
Voltage Rating – DC:
12v
Voltage:
12V
Packaging:
NO
Voltage Rating:
12V
Illumination Voltage (Nominal):
12V
Voltage – Switching AC:
NO
Voltage – Switching DC:
12V
Power – Rated:
1.2W
Voltage – Supply:
4.75 ~ 15VDC
Display Mode:
Full color
LED Color:
RGB
Rated Voltage:
12v
Current – Switching:
0.1A
D/C:
LS-1507B
Operating Force::
Customizable
Operating Life ::
100000 cyles / Customizable
Laser Etching:
Customizable
Customization


PRODUCT CUSTOMIZATION

With more than 20 years of expriences and complete facilites , we are committed to providing a wide range of switches to the
worldwide marketplace , and capable of customizing products in different colors , materials , marking , finishes and shapes to
meet customers specific needs.
Product Description
Product Name :
3 Way Switch
Switch Rating :
DC 12V 0.1A
Timing:
Non-shorting
Contact Resistance :
100mΩ Max
Insulation Resistance:
100MΩ Min
Dielectric Strength :
AC 250V for 1min
Operating Force :
120±40 gf / 160±50 gf / 250±50 gf / 300±60 gf / Customizable
Operating Life :
100,000 cycles
Salt Spray Test :
nSS 48H / Customizable
Operation Temperature Range :
-20°C ~ +70°C

FEATURES :

1, 500000 cycle life or customizable

2, Meet ROHS and REACH standards;

3, multiple cap options , laser symbol customizable

4, 3 way

5 , SMT or DIP design

6 , Vertically Actuated , Momentary

APPLICATIONS :

1 , Home Appliance
2, Consumer electronics
3, Telecommunications markets

4, Audio / Video products

5, Computer / peripherals

6, , Testing / instrumentation

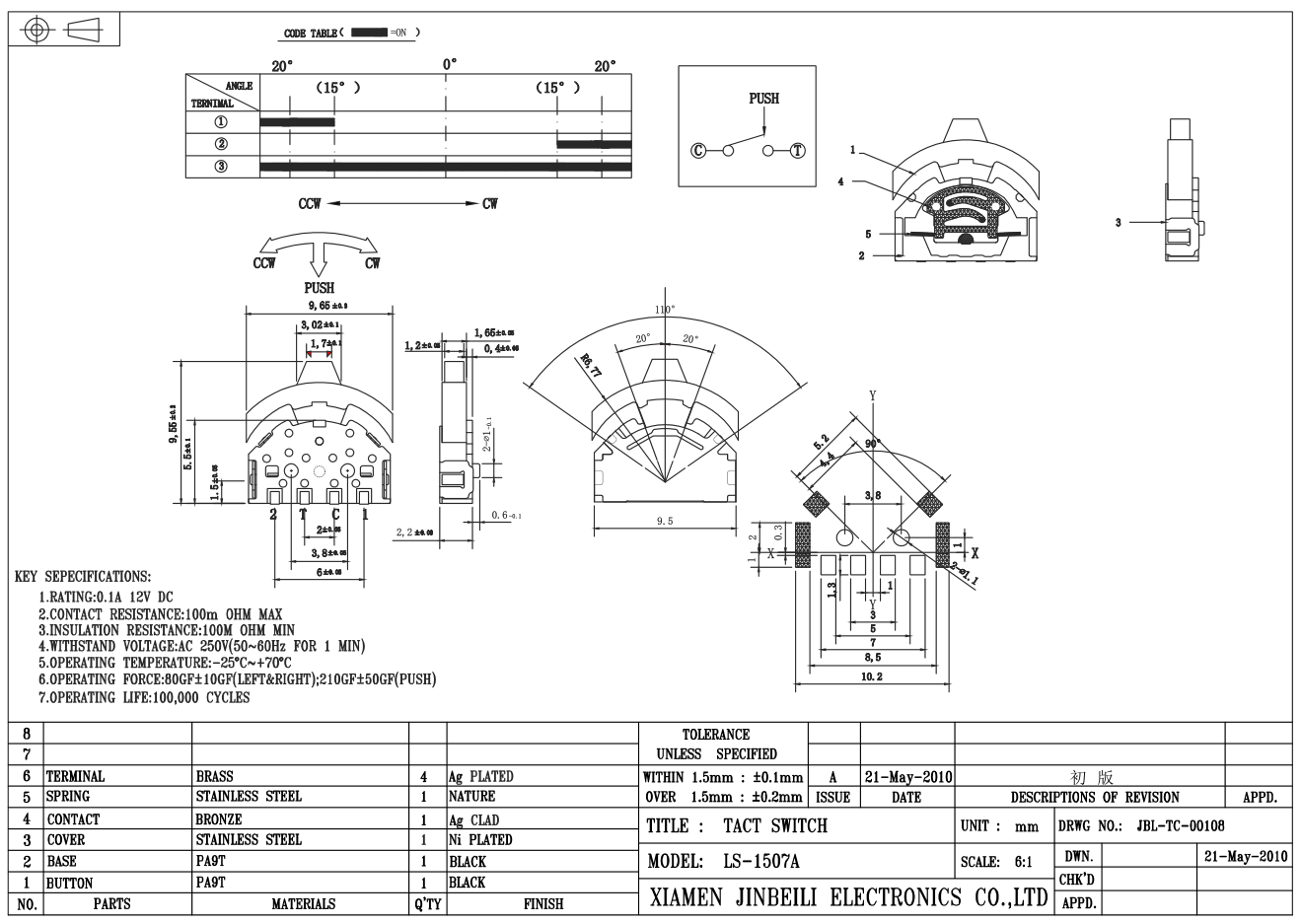

Spec Sheets



If you need original PDF Format data sheet to refer to , please contact us.



R&D Development

Our engineer design and develop products by software and 3D printer to provide a precision pattern

Tooling

we design tools for moduling, including metal cutting, surface processing to provide high quality products in a short time

Stampling

It can stample materials such as stainless steel, aluminum, and brass in diameters from 2mm to 30mm

Plastic Molding

All the plastic parts of switches are custom in our factory.Molding process materials includes: thermoplastic, silicone and elastomer

Automate Assembly Line

most of products are assembled by full automated , only a little by manual, for high efficiency. We have advanced facilities to assemble over 100000 pcs products per day

Testing & Inspection

We strictly test each product by this reflow soldering machine to test if the product is stable and high temperature resistance
