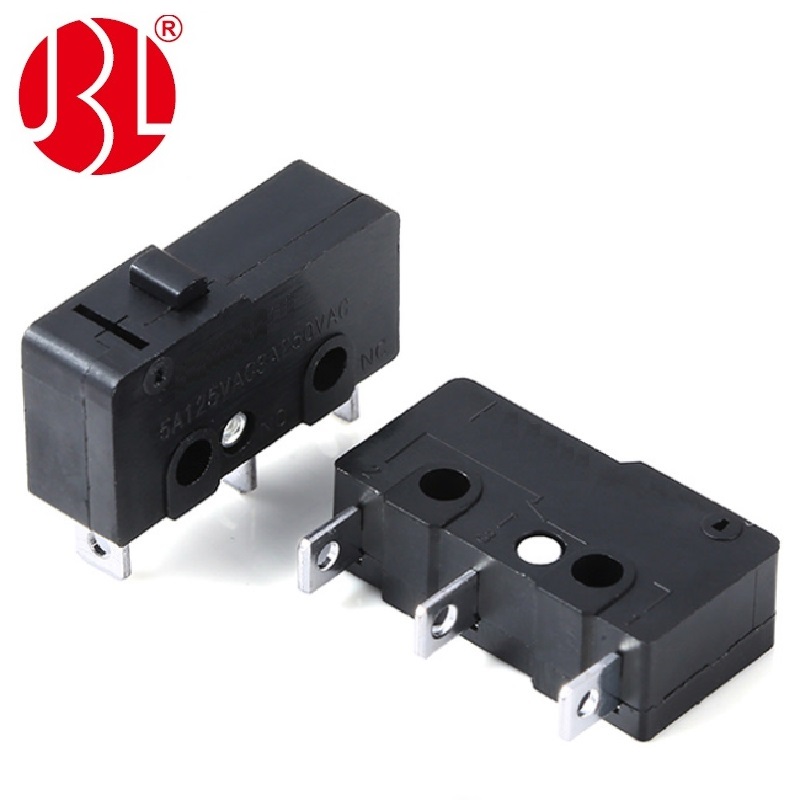

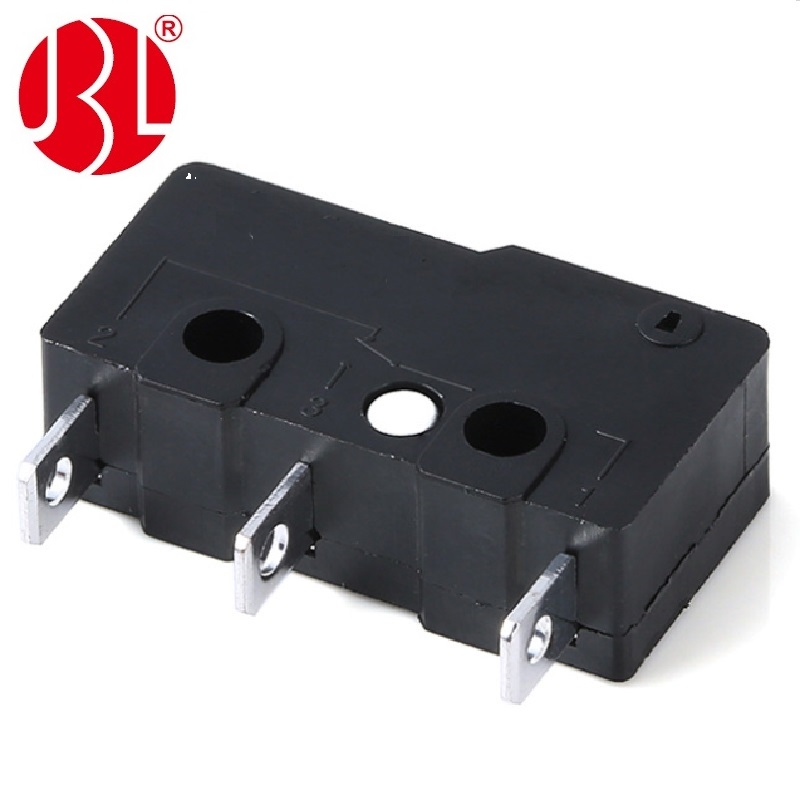

Micro Switch in Solder Type, with Medical Lever QC Term of 7mm SM3-00N

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Description of this Micro Switch in Solder Type, with Medical Lever QC Term of 7mm SM3-00N

Micro switches, with 100,000 Cycles Lifespan Test, Application for Electrical Machines and exit.

Parameter of this Micro Switch in Solder Type, with Medical Lever QC Term of 7mm SM3-00N

*Key Specifications

Made of high-quality materials
Reliable performance
Different sizes are available
Rating: 3A/125V AC/5A 125V AC/10A 24V DC
Contact resistance: 500mΩ (maximum)
Insulation resistance: 100MΩ (minimum)
Dielectric strength: 1,000V
Lifespan: 100,000 cycles
Bump test: in three vertical-axes directions, each direction was applied to 100 cycles at an acceleration of 100m/second
Shock test: frequencies of 10, 50 and 10Hz, 10 cycles at swing of 3.5mm
Resistance to soldering heat test: in the solder bath of 245 ± 5℃ for 3 seconds
Temperature variety: store at temperatures of -25 to 70℃ for 30 minutes, each 10 cycles of transition with intervals of 2 to 5 minutes
Cold test: at –25 ± 3℃ for 48 hours
Heat test: at 70 ± 2℃ for 48 hours
Humidity test: at 40 ± 2℃ and 90 to 95% RH for 96 hours
Practical temperature range: -16 to 60℃
Applications: all kinds of home and industrial electronic equipment including computers, audio systems, and exit.

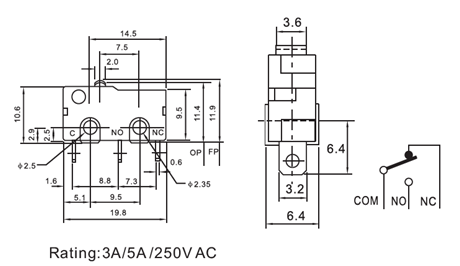

*Product Size (Dimensional drawing is for reference only,for detailed specifications,contact us pls.)
