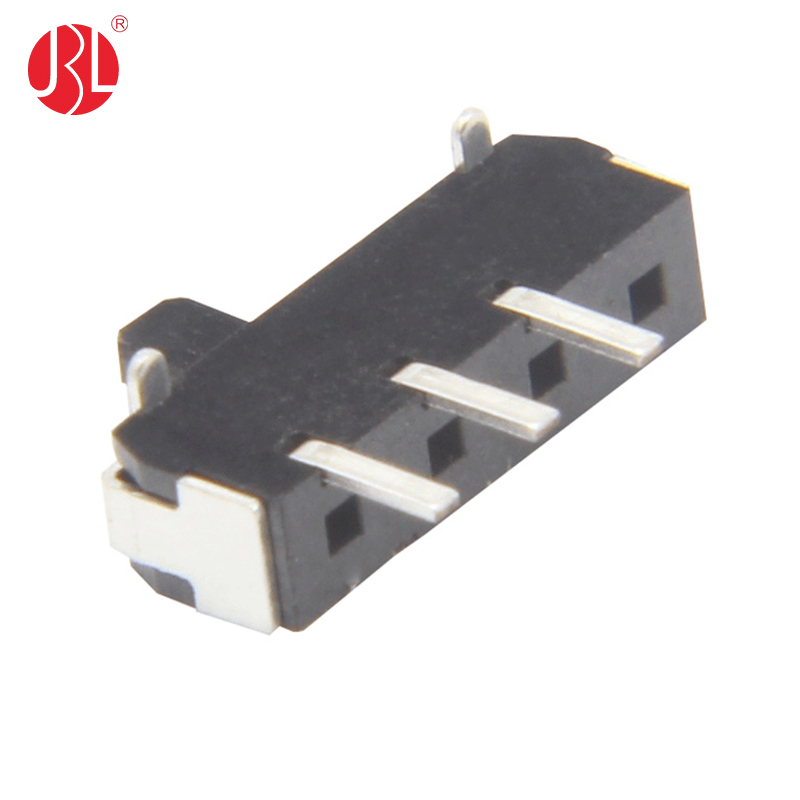

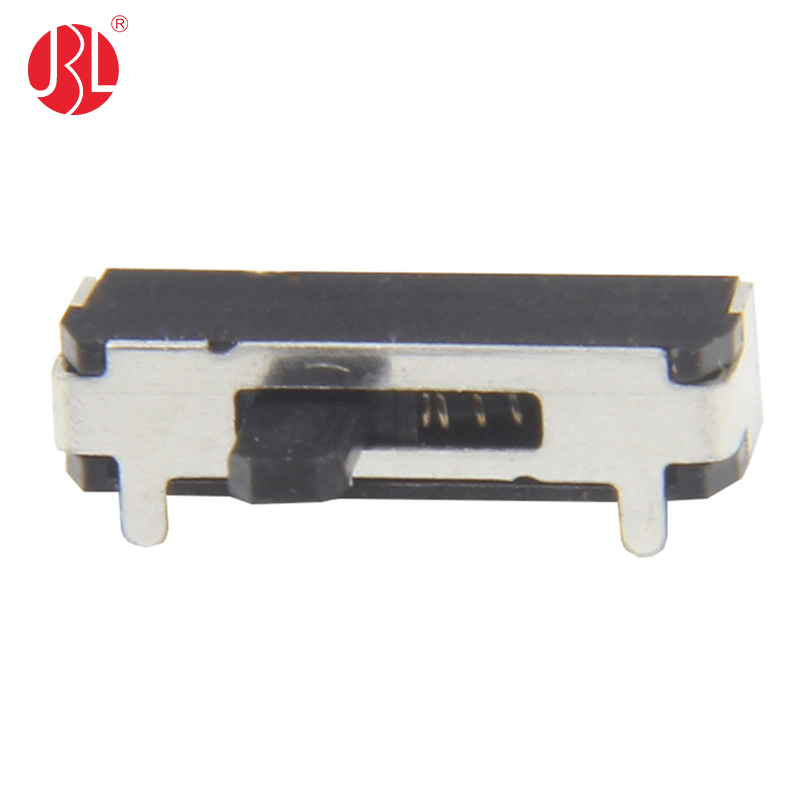

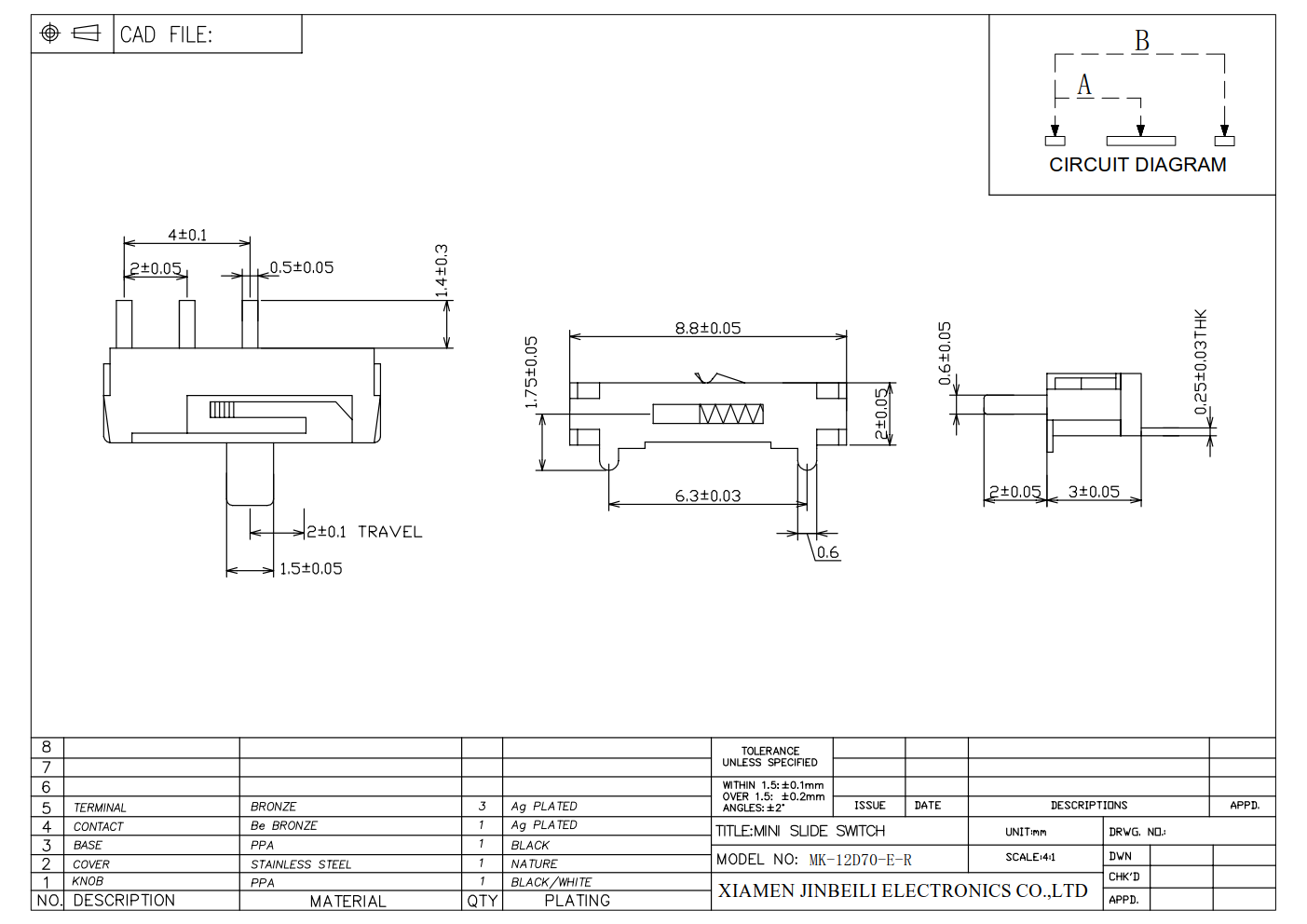

This miniature slide switch is an SPDT (Single Pole Double Throw) design, ideal for surface mount technology (SMT) applications with a right-angle configuration. Featuring an internal spring mechanism, it provides a momentary function that resets from the right side. The switch operates at a voltage rating of DC 30V and a current rating of 0.1A, with compact dimensions of 8.8mm x 2.0mm, making it suitable for space-constrained environments

It offers exceptional performance, making it a viable alternative to the APEM JSM08011SAQNL and Nidec Components CSS-1211. Its reliable SPDT configuration and momentary function ensure seamless operation, while its compact size and voltage rating enhance versatility in various applications.
