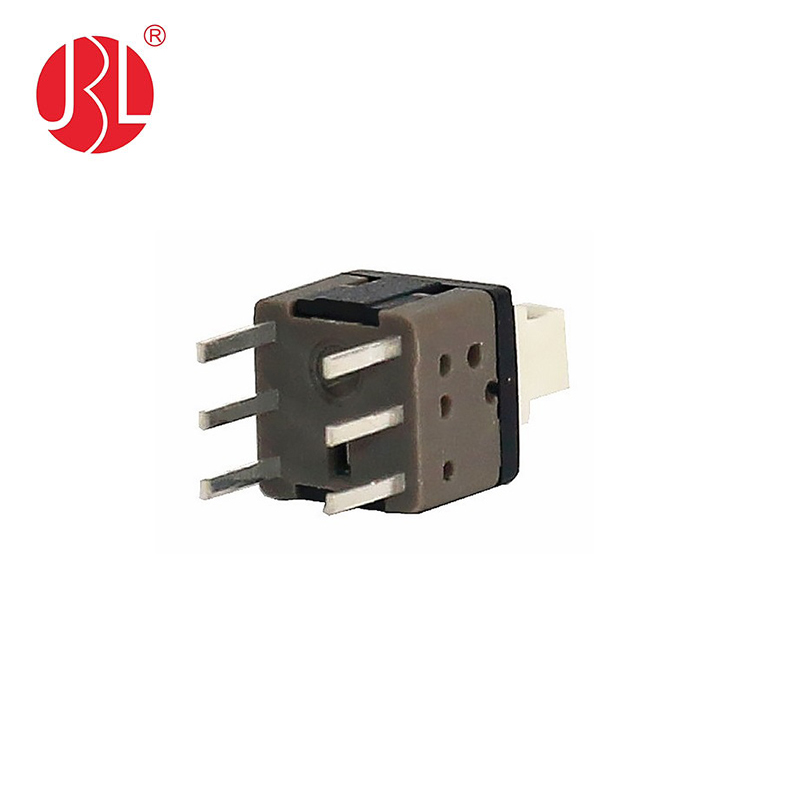

PB-22E60 5.8×5.8mm Push Button Switch DPDT Through Hole

Short Description:

5.8×5.8 mm Pushbutton switch DPDT Self lock or Non lock DIP Vertical DC30V 0.1A Replacement

Item: Push Button Switch

Outline: 5.8*5.8mm

Mounting: Through hole

Function Options: Momentary, Latching

Configuration: DPDT

Send email to us Download as PDF

Product Detail

Product Tags

Through-Hole DPDT Push Button Switch (5.8×5.8mm, Momentary & Latching, DC30V 0.1A)

This through-hole DPDT push button switch, with a compact 5.8×5.8mm outline, offers versatile functionality with both momentary and latching options. Designed to handle DC12V and 0.2A, it ensures reliable performance in a range of low-power electronic applications. Its precise engineering makes it an excellent alternative to the E-switch TL2203 Series (including TL2203OA, TL2203EEF180Q, TL2203OAF180Q, TL2203OAF250Q, TL2203EEF180, TL2203OAF250) and APEM MHPS2266N switches. This switch provides dependable operation and easy integration into PCB layouts, making it a suitable choice for replacing these well-known switch models.

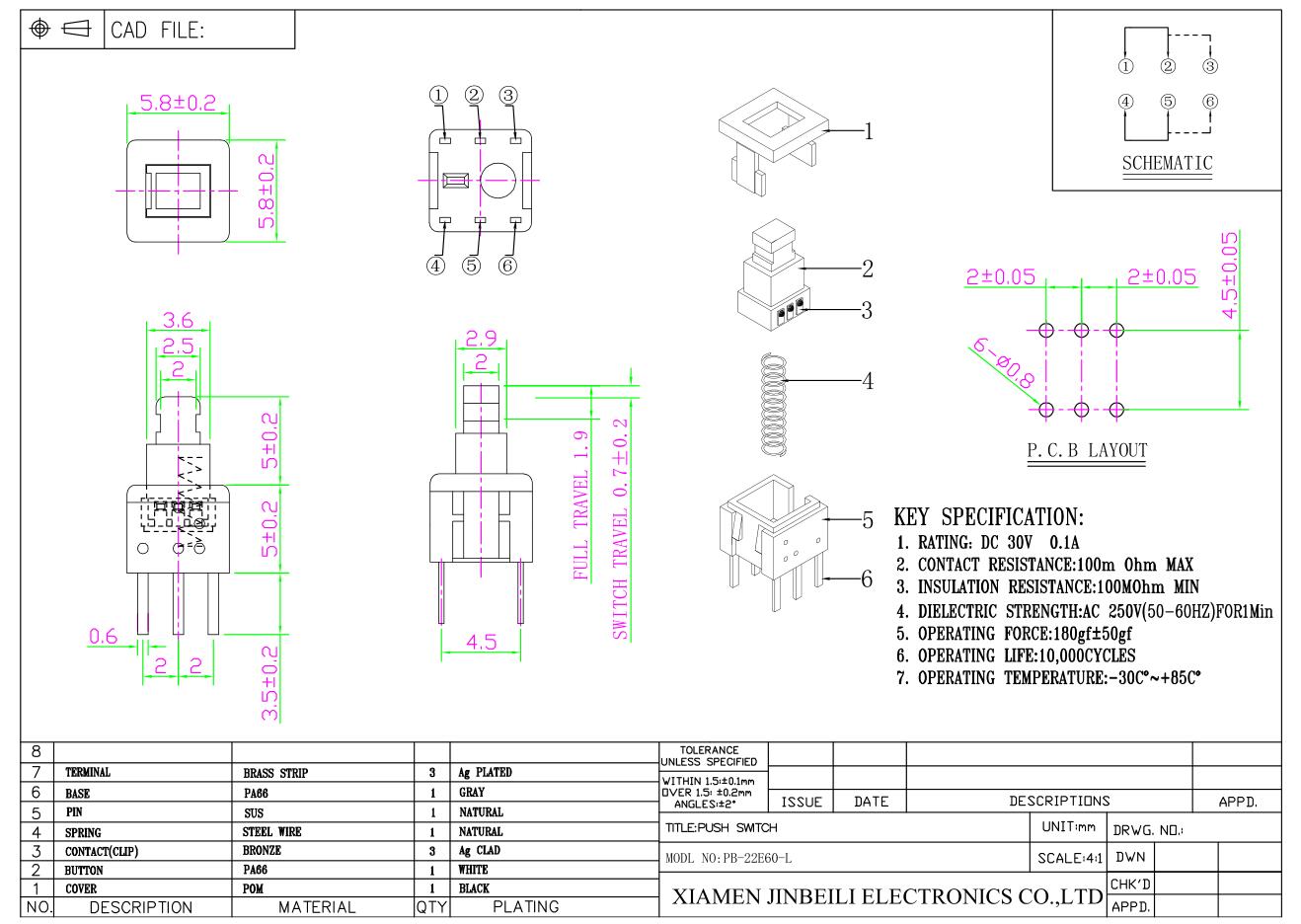

Datasheets :
