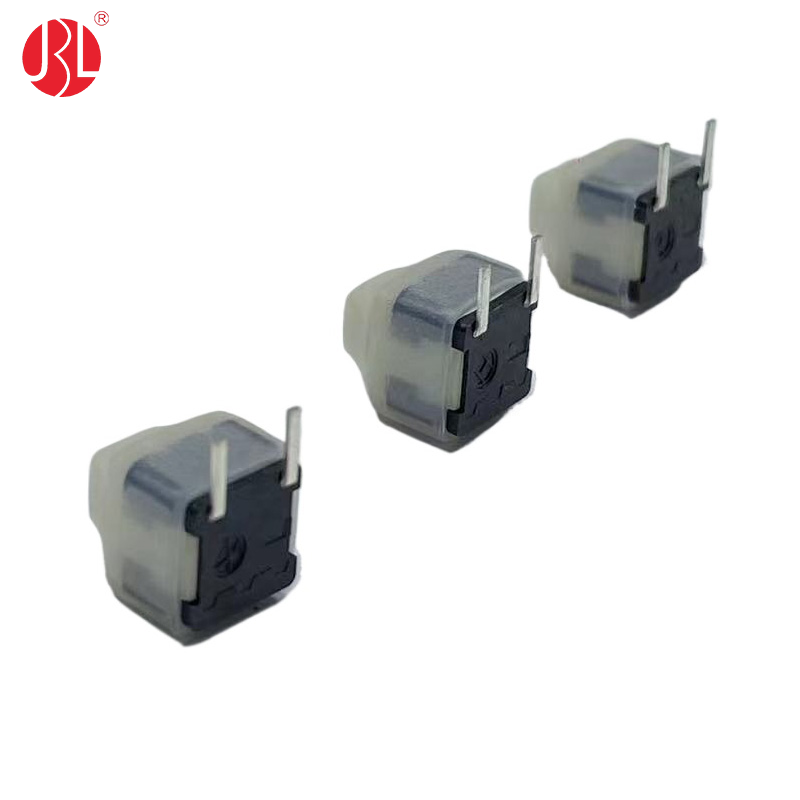

PB-22E60S-2NL-NC Waterproof Push Button Switch 7.0*7.0mm SPST

Short Description:

SPST IP65 Rated Waterproof Push Button Switch Momentary SMD


  • Item: Push Button Switch
  • Configuration: SPST
  • Mounting: SMD
  • Terminating: PCB Pin
  • Actuator Height Off PCBA: 8.2mm
  • Feature: IP65 Rated Waterproof
  • Function Options: Momentary, Latching
  • Power Rated: DC12V 0.05A
  • Product Detail

    Product Tags

    Introducing our SPST SMD push button switch, designed for versatility and durability. With a compact outline of 7.0 x 7.0 mm, this switch is perfect for a variety of applications. It features an IP65 rated waterproof design, enhanced by a translucent silicone cover that provides excellent protection against dust and water ingress.

    This momentary switch can also be customized for latching functionality, making it suitable for diverse operational needs. Ideal for both consumer electronics and industrial applications, this push button switch combines reliability with a sleek, modern aesthetic.

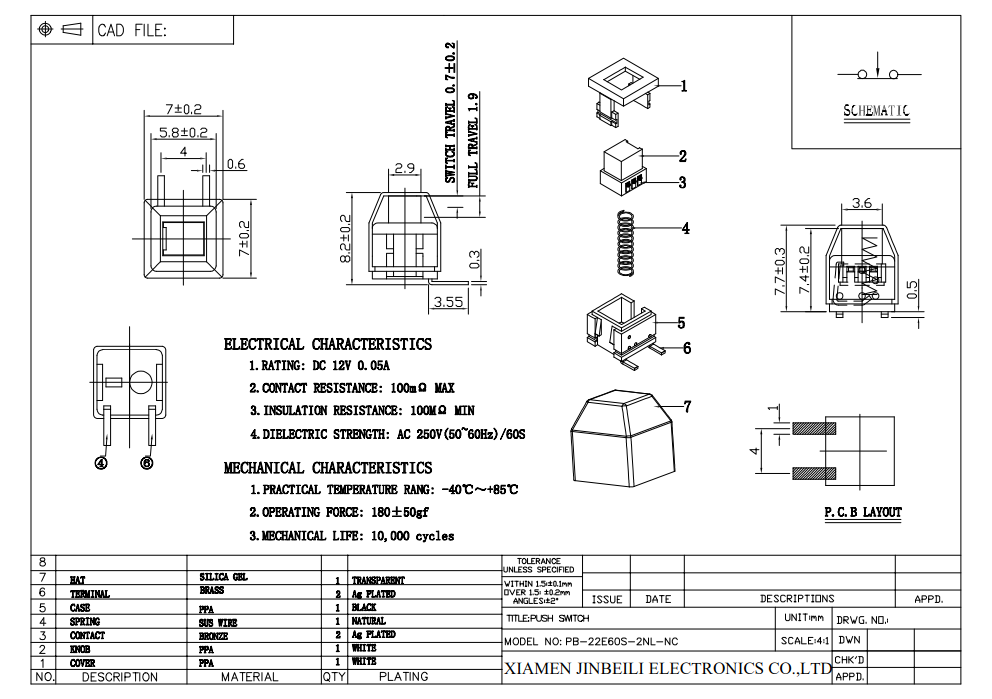

    PB-22E60S-2NL-NC_1www.jbl-ec.com
