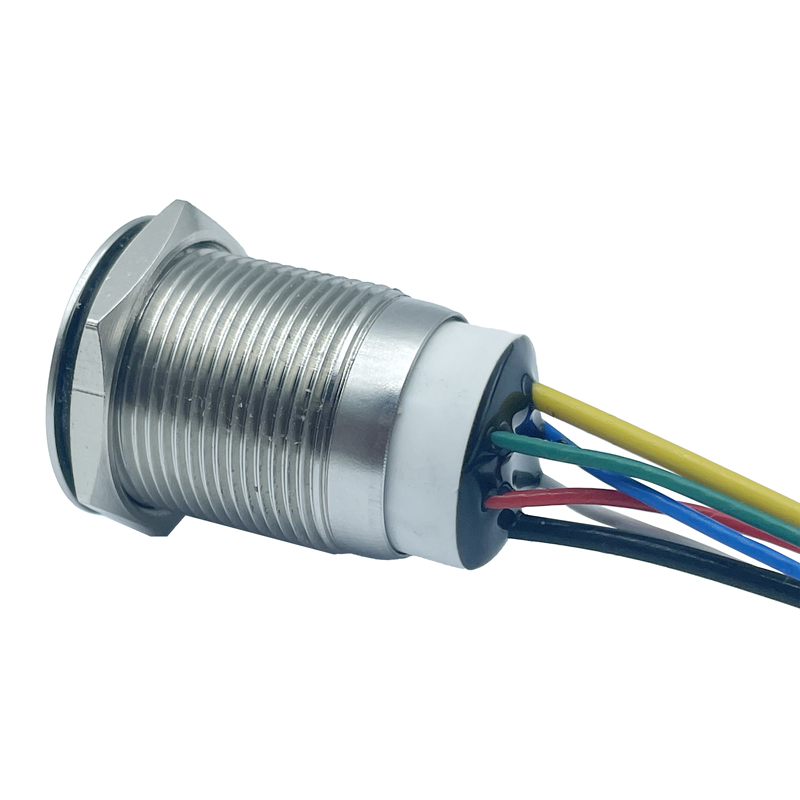

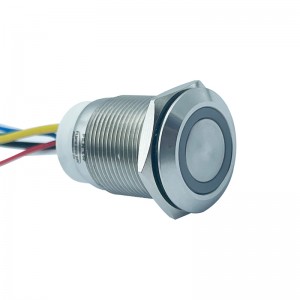

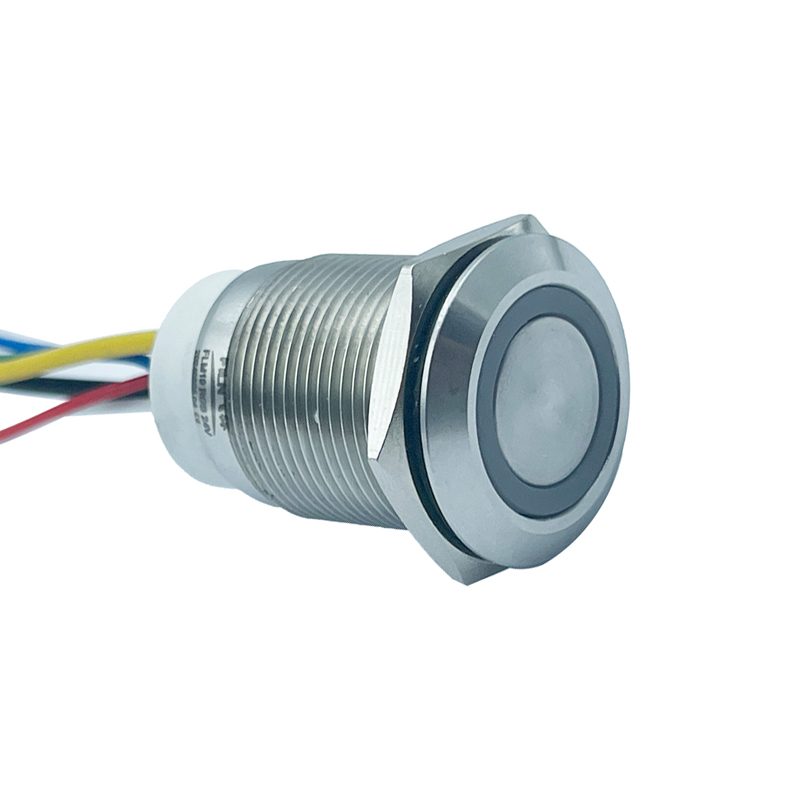

PBM-19A-P1 Series IP68 Rated Sealed Push Button Switch 19mm

Short Description:

IP68 Sealing Degree Anti Vandal Switch 19mm RGB Momentary Push Button Switch Epoxy Resin Potting


  • Item: 19mm Anti Vandal Switch
  • Power Rated: DC36V 2A
  • Waterproof Level: IP68 Rated
  • Feature: Epoxy Resin Sealing
  • Mounting: Rear Bulkhead Panel Mount
  • Illuminated: Ring Illumination
  • LED Color Options: RGB , Red , Yellow, Blue, Green , White
  • LED Voltage : DC12V
  • Material : Stainless Steel
  • Function Options : Momentary , Latching
  • Product Detail

    Product Tags

    Introducing the robust 19mm Anti-Vandal Switch, designed for reliability and versatility in challenging environments. Crafted with precision, it features ring illumination for clear visibility in any condition, making it ideal for both industrial and consumer applications.

    Equipped with an array of LED color options including RGB, red, green, blue, and white, this switch allows customization to suit varied operational needs and aesthetic preferences.

    Engineered with an impressive IPX8 waterproof rating, achieved through advanced epoxy resin compound potting and meticulous IPX8 degree sealing, ensuring exceptional durability against water ingress even in the most demanding conditions.

    Choose between momentary and latching functions, providing flexibility for different operational requirements. Whether you need precise control or sustained engagement, this switch delivers consistent performance.

    Perfectly suited for applications requiring a blend of durability, functionality, and visual appeal, the 19mm Anti-Vandal Switch sets a new standard in reliability and design flexibility.

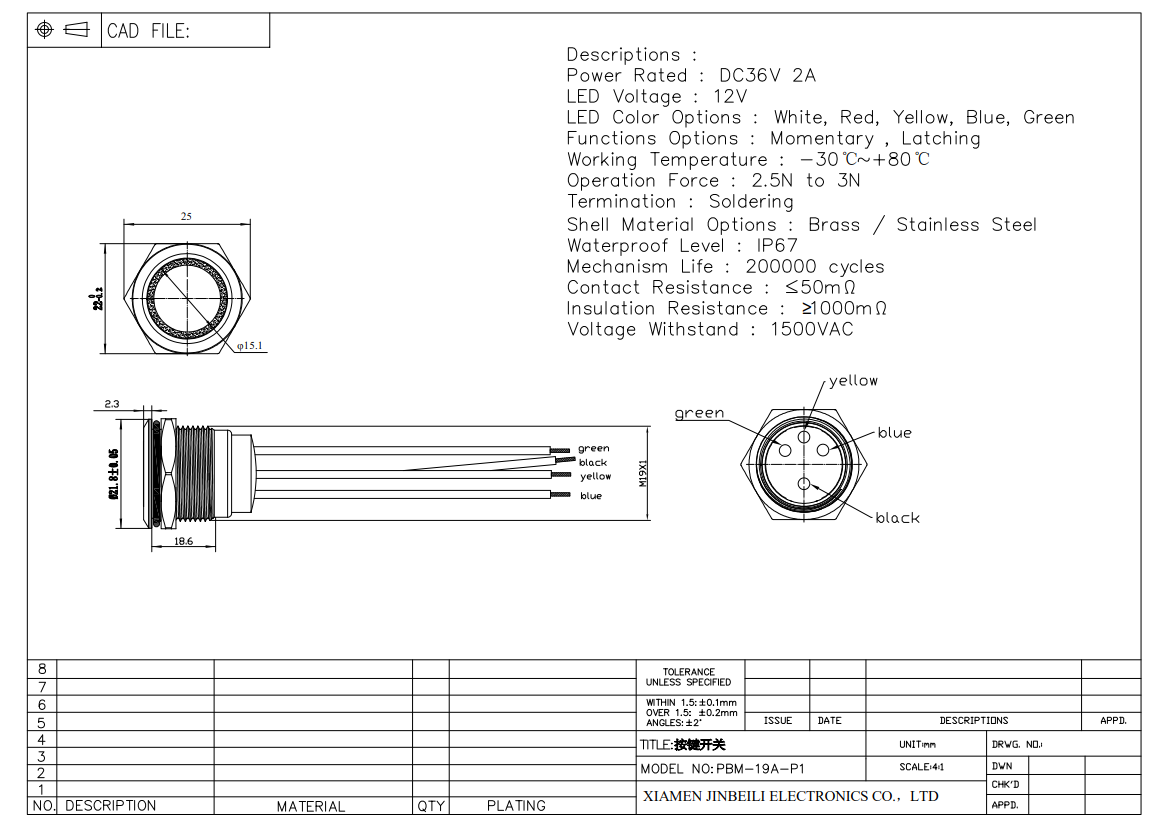

    PBM-19A-P1_1www.jbl-ec.com
