19mm LED Indicator: Heavy-Duty Visibility with Robust Wiring for Demanding Environments

The 19mm LED Indicator is a high-impact signaling solution engineered for applications where durability, brightness, and adaptability are critical. Featuring an M19 panel-mount design and flexible wiring options, this indicator excels in industrial machinery, automotive systems, marine electronics, and outdoor equipment, delivering reliable status feedback even under harsh conditions.

Key Features

• M19 Panel-Mount Strength: With a 19mm diameter and M19 threaded body, this indicator offers a rugged, flush-fit installation that resists vibrations, impacts, and moisture. Its oversized design ensures unmatched visibility in crowded control panels, machinery dashboards, or vehicle instrument clusters.

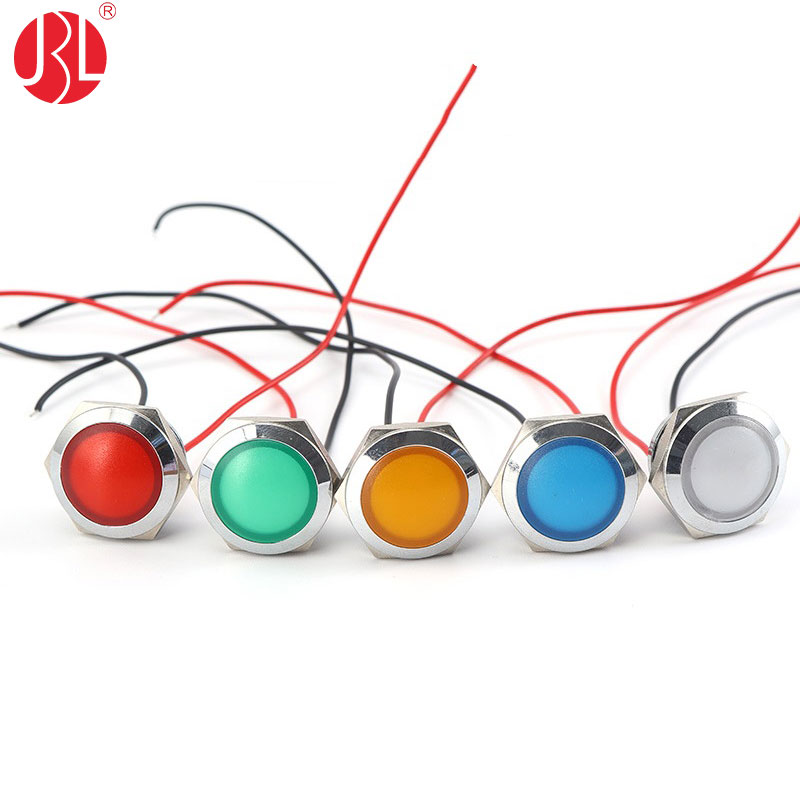

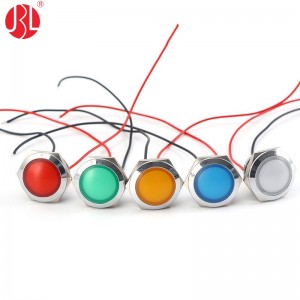

• Vivid LED Color Options: Choose from five high-intensity colors—red, green, blue, white, or yellow—to clearly indicate system status, alerts, or operational modes. Whether for fault warnings, power-on signals, or process monitoring, these hues cut through ambient light and noise for instant recognition.
• Wide Voltage Range: Operates efficiently across DC3V to DC12V, accommodating low-power battery systems (e.g., 3V) and standard 12V industrial/automotive circuits. This adaptability eliminates the need for external voltage regulators, streamlining integration.
• Customizable Wiring: Wires are available in lengths from 50mm to 600mm and gauges of 24AWG (0.20mm²) or 26AWG (0.13mm²), balancing flexibility with current-carrying capacity. All wires feature tinned ends for soldering reliability and corrosion resistance, ensuring secure connections in high-vibration environments.

Applications & Benefits

• Industrial Automation: Perfect for heavy-duty PLC panels, HMI displays, or large-scale machinery status indicators.
• Automotive/Marine: Enhances dashboards, engine bay diagnostics, or navigation systems with water-resistant, vibration-proof signaling.
• Outdoor/Rugged Use: Ideal for solar controllers, agricultural machinery, or security systems where shock, moisture, and temperature extremes are common.

With its blend of size, color clarity, and tough wiring, this 19mm LED indicator delivers uncompromising performance in a package optimized for longevity and ease of installation.

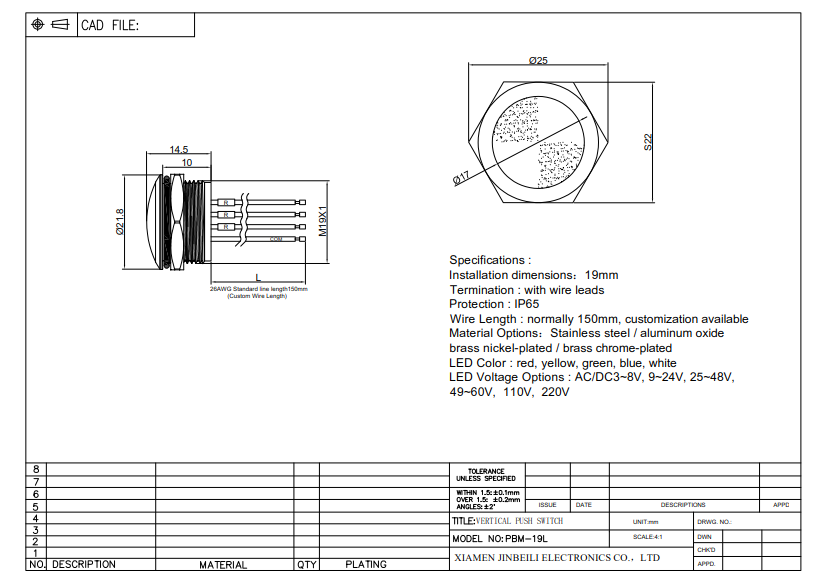

Technical Summary

• Mounting: M19 nut/washer for secure, professional installation.
• Current: 20mA typical (single-color).
• Operating Temp: -20°C to +85°C.
• Certifications: CE, RoHS compliant.

Ideal for engineers, OEMs, and technicians seeking a maintenance-friendly, high-visibility indicator that thrives in demanding, mission-critical applications.
