19mm Metal LED Indicator: Rugged Construction, Vibrant Signaling, and Tool-Ready Reliability

The 19mm Metal LED Indicator is a heavy-duty signaling solution engineered for industrial, automotive, and outdoor applications where durability, clarity, and secure connections are non-negotiable. Combining a robust metal housing, M19 panel-mount design, and screw terminals, this indicator delivers uncompromising performance in harsh environments.

Key Features

Premium Metal Construction: Encased in a die-cast aluminum or stainless steel body, this indicator resists corrosion, impacts, and extreme temperatures, making it ideal for factories, vehicles, marine equipment, or outdoor installations. Its IP65-rated sealing (when paired with O-ring) safeguards against dust and moisture ingress.
M19 Panel-Mount Durability: With a 19mm diameter and M19 threaded body, it ensures a secure, flush-fit installation that withstands vibrations, shocks, and physical stress. The oversized design guarantees high visibility even in cluttered control panels or machinery dashboards.
Vivid LED Color Options: Choose from five high-intensity hues—red, green, blue, white, or yellow—to instantly communicate system status, alerts, or operational modes. These LEDs deliver exceptional brightness and color consistency, ensuring clear recognition in direct sunlight or low-light conditions.
Screw Terminals for Tamper-Proof Wiring: Unlike pre-wired connectors, screw terminals allow direct, tool-tightened connections to stripped wires (22AWG–26AWG). This design ensures a vibration-resistant, maintenance-free bond, ideal for applications where loose wires could cause catastrophic failures. Terminals accept ferrules or bare wires, offering flexibility for both quick setups and professional installations.
Applications & Benefits

Industrial Machinery: Perfect for PLC panels, HMI displays, or large-scale equipment status indicators in manufacturing plants.
Automotive/Marine: Enhances engine bay diagnostics, dashboards, or navigation systems with water-resistant, shockproof signaling.
Outdoor/Rugged Use: Ideal for solar controllers, agricultural machinery, or security systems where exposure to moisture, dust, and temperature swings is routine.
With its blend of size, color clarity, and tool-ready terminals, this 19mm metal LED indicator is built to endure while keeping users informed.

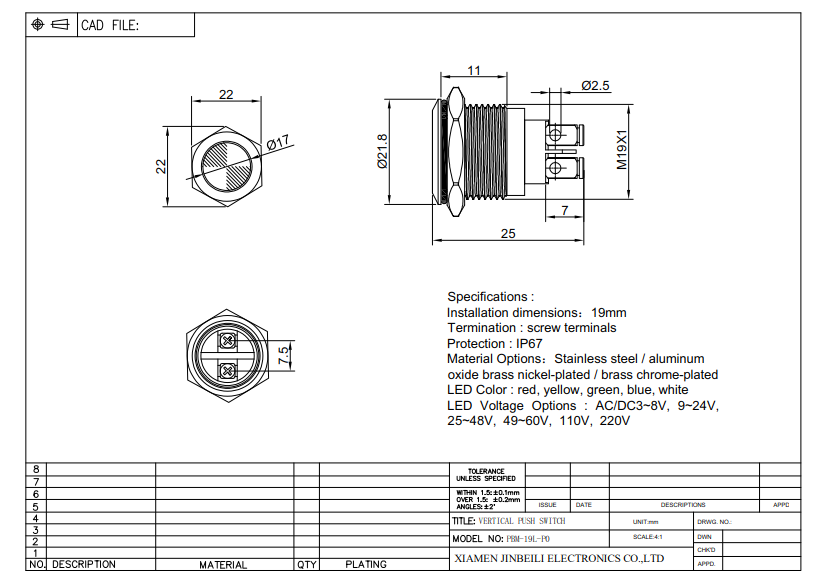

Technical Summary

Mounting: M19 nut/washer for secure, professional installation.
Current: 20mA typical (single-color).
Operating Temp: -30°C to +85°C (extended range due to metal housing).
Certifications: CE, RoHS, IP65 (with sealing).
Ideal for engineers, OEMs, and technicians seeking a maintenance-friendly, high-visibility indicator that thrives in mission-critical, high-stress environments.
