22mm LED Indicator: Extra-Large Visibility, Robust Wiring, and Quick-Connect Efficiency for Industrial and Heavy-Duty Applications

The 22mm LED Indicator is a high-performance signaling solution engineered for applications where maximum visibility, rugged durability, and effortless integration are critical. Combining an oversized M22 panel-mount design, vibrant LED color options, and pre-terminated wiring with connectors, this indicator excels in industrial machinery, automotive systems, marine electronics, and outdoor equipment.

Key Features

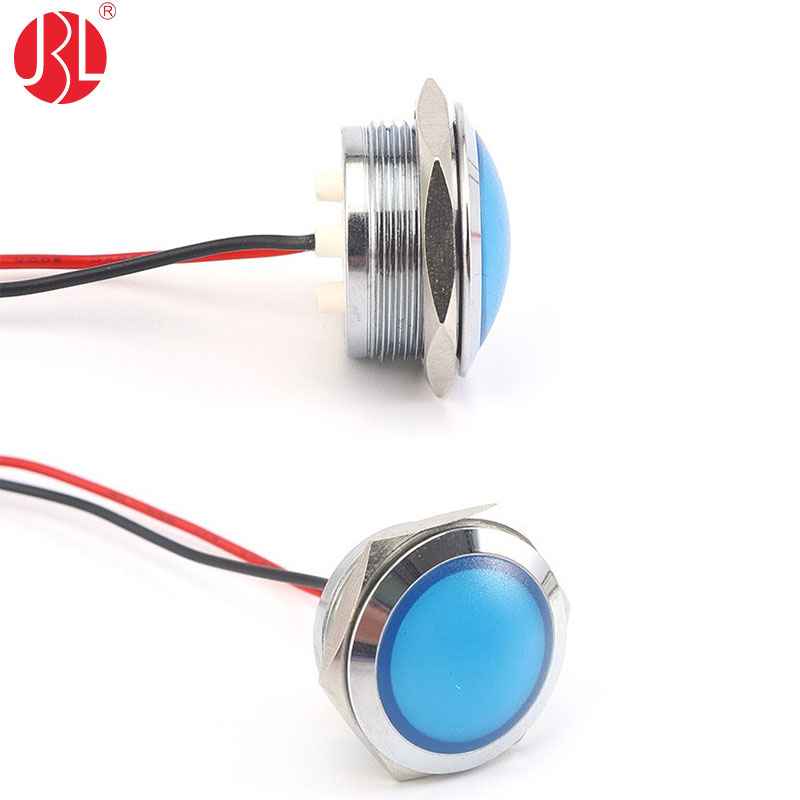

Extra-Large 22mm Panel Mount: With a 22mm diameter and M22 threaded body, this indicator dominates control panels, dashboards, or enclosures, ensuring unmistakable status updates even from a distance. Its flush-fit design and IP65-rated sealing (when paired with O-ring) resist dust, moisture, and physical impacts, making it ideal for harsh environments.

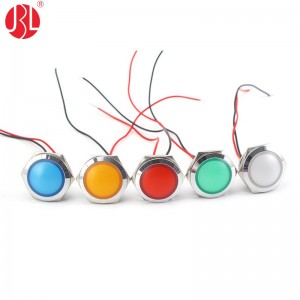

Vivid LED Color Options: Choose from five high-intensity hues—red, green, blue, white, or yellow—to instantly communicate system status, alerts, or operational modes. These LEDs deliver exceptional brightness and color consistency, ensuring clear recognition in direct sunlight, low-light conditions, or complex industrial settings.
Flexible Voltage Range: Operates efficiently across DC3V to DC12V, supporting low-power battery systems (e.g., 3V) and standard 12V industrial/automotive circuits. This adaptability eliminates the need for external voltage regulators, streamlining installation.
Customizable Wiring with Connectors: Wires are available in lengths from 50mm to 600mm and gauges of 22AWG (0.32mm²), 24AWG (0.20mm²), or 26AWG (0.13mm²), balancing flexibility with current-carrying capacity. All wires feature tinned ends for soldering reliability and corrosion resistance, paired with pre-installed connectors (e.g., JST, 2.54mm pitch, or custom types) for tool-free, plug-and-play setups.
Applications & Benefits

Industrial Control Systems: Perfect for PLC panels, HMI displays, or large-scale machinery status indicators in manufacturing plants.
Automotive/Marine: Enhances engine bay diagnostics, dashboards, or navigation systems with water-resistant, vibration-proof signaling.
Outdoor/Rugged Use: Ideal for solar controllers, agricultural machinery, or security systems where exposure to moisture, dust, and temperature extremes is routine.
With its blend of size, color clarity, and quick-connect wiring, this 22mm LED indicator delivers uncompromising performance in a package optimized for longevity and ease of use.

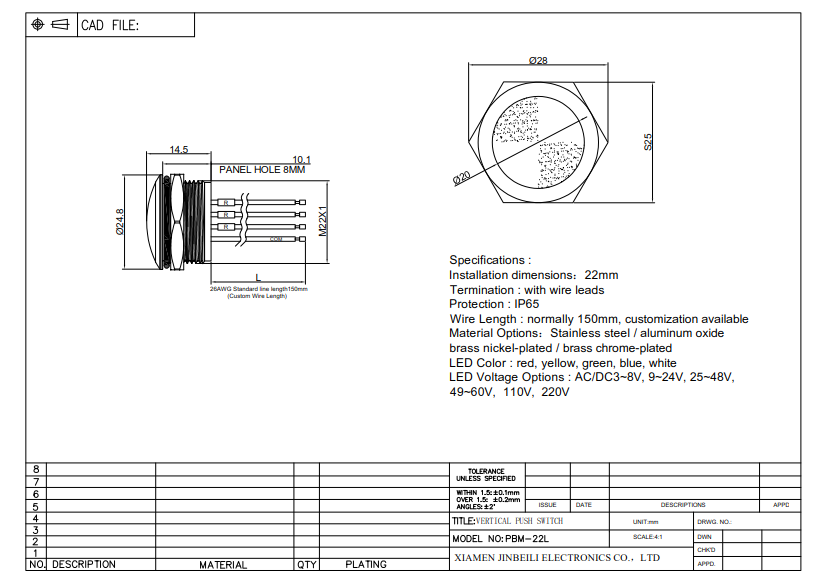

Technical Summary

Mounting: M22 nut/washer for secure, professional installation.
Current: 20mA typical (single-color).
Operating Temp: -20°C to +85°C.
Certifications: CE, RoHS compliant.
Ideal for engineers, OEMs, and technicians seeking a maintenance-friendly, high-visibility indicator that thrives in demanding, mission-critical applications.
