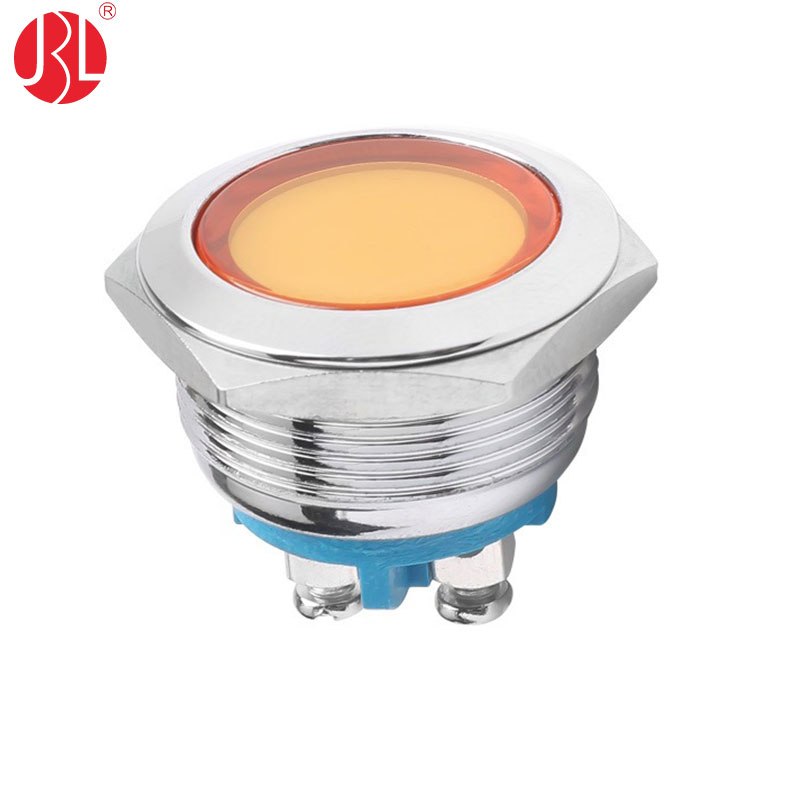

22mm Metal LED Indicator: Heavy-Duty Construction, Vibrant Signaling, and Permanent-Wiring Reliability for Industrial Environments

The 22mm Metal LED Indicator is a premium signaling solution engineered for industrial, automotive, and outdoor applications where maximum visibility, rugged durability, and tamper-proof connections are non-negotiable. Combining an oversized M22 panel-mount design, high-intensity LED color options, and solder terminals, this indicator delivers unmatched performance in harsh, high-vibration settings.

Key Features

Industrial-Grade Metal Housing: Encased in die-cast aluminum or stainless steel, this indicator resists corrosion, impacts, and extreme temperatures (-30°C to +85°C). Its IP65-rated sealing (when paired with O-ring) safeguards against dust, moisture, and contaminants, making it ideal for factories, vehicles, marine equipment, or outdoor installations.
M22 Panel-Mount Dominance: With a 22mm diameter and M22 threaded body, it ensures a secure, flush-fit installation that withstands continuous vibrations, shocks, and physical stress. The oversized design guarantees unrivaled visibility even in cluttered control panels, machinery dashboards, or distant monitoring stations.

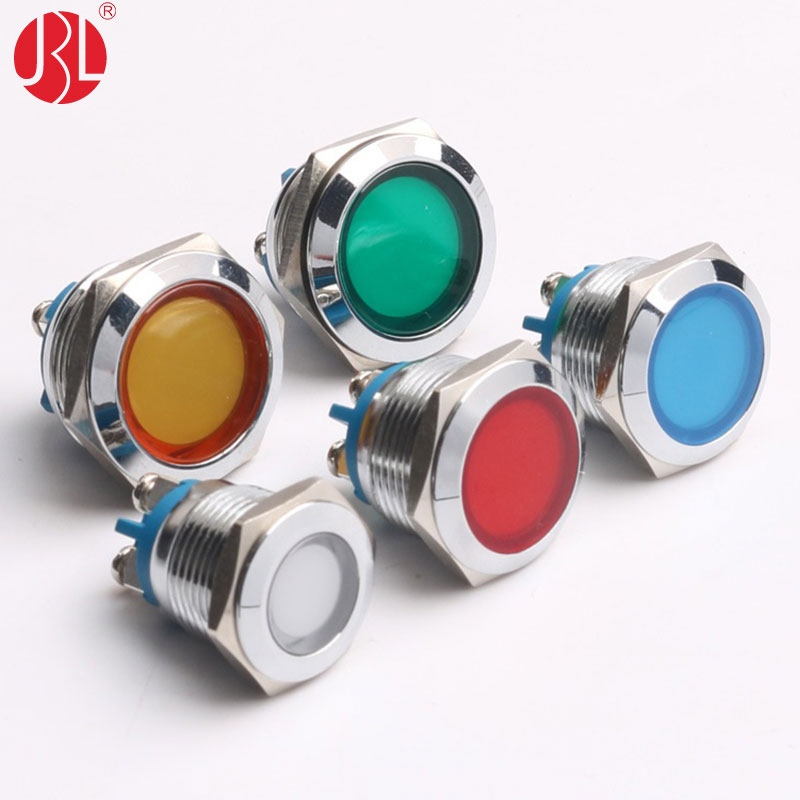

Vivid LED Color Options: Choose from five high-intensity hues—red, green, blue, white, or yellow—to instantly communicate system status, alerts, or operational modes. These LEDs deliver exceptional brightness and color consistency, ensuring clear recognition in direct sunlight, low-light conditions, or noisy environments.
Solder Terminals for Permanent Integrity: Unlike connectors or screw terminals, solder tabs enable direct, permanent bonding to PCBs or wires (22AWG–26AWG). This design eliminates risks of loose connections due to vibration, moisture, or tampering, making it ideal for mission-critical applications where failure is not an option. Terminals are spaced for easy hand-soldering or automated assembly, ensuring production efficiency.
Applications & Benefits

Industrial Automation: Perfect for PLC panels, HMI displays, or heavy-duty machinery status indicators in manufacturing plants.
Automotive/Marine: Enhances engine bay diagnostics, dashboards, or navigation systems with water-resistant, shockproof signaling.
Outdoor/Rugged Use: Ideal for solar controllers, agricultural machinery, or security systems exposed to moisture, dust, and temperature extremes.
With its blend of size, color clarity, and solder-ready terminals, this 22mm metal LED indicator is built to endure while keeping users informed.

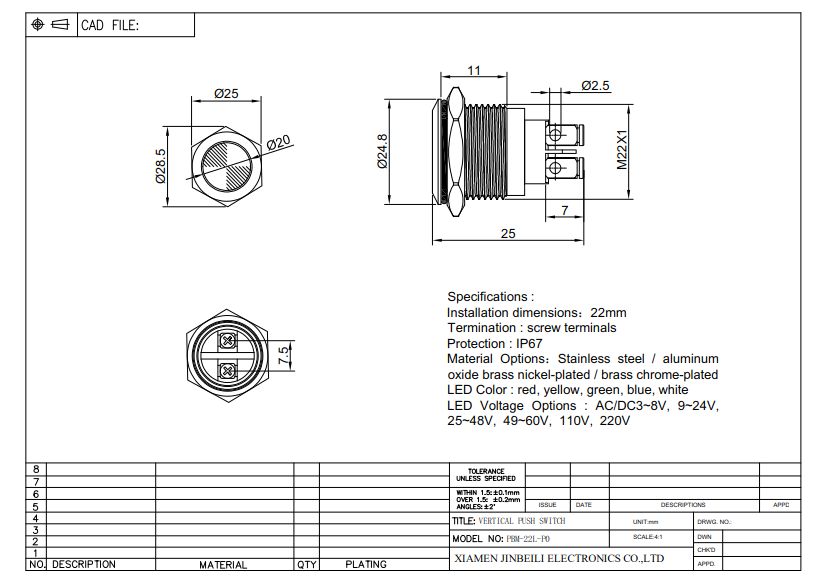

Technical Summary

Mounting: M22 nut/washer for secure, professional installation.
Current: 20mA typical (single-color).
Voltage Range: DC3V to DC12V (compatible with low-power and 12V systems).
Certifications: CE, RoHS, IP65 (with sealing).
Ideal for engineers, OEMs, and technicians seeking a maintenance-free, high-visibility indicator that thrives in demanding, high-stakes environments.
