Description  of this PBM12 11Z RS NN3 S0 S Metal push button switch SPST OD12 mm with lock or non lock
 PBM12-11Z-RS-NN3-S0-S Metal push button switch SPST,OD12 mm lock or non-lock with LED，200,000 cycles operating life

Parameter of this PBM12 11Z RS NN3 S0 S Metal push button switch SPST OD12 mm with lock or non lock

 XIAMEN JINBEILI ELECTRONICS CO.,LTD
*Key Specifications
  • 1.Circuit:SPST
    2.Current Rating: 2A
    3.Voltage Rating: 36VDC
    4.Dielectric withstanding voltage: 1000VAC for 1 min
    5.Contact Resistance:50m ohm max
    6.Insulation Resistance:100M ohm min
    7.Operating Force:400gf±150gf
    8.Total Travel:2.0mm±0.4mm
  • 9.Operating life:200,000Cycles
    10.Recommended IR Reflow(Wave Soldering) Temperature: 260°C
    11.Funcition: Momentray ON-OFF
  • 12. Operating Temperature:-20°C~+70°C

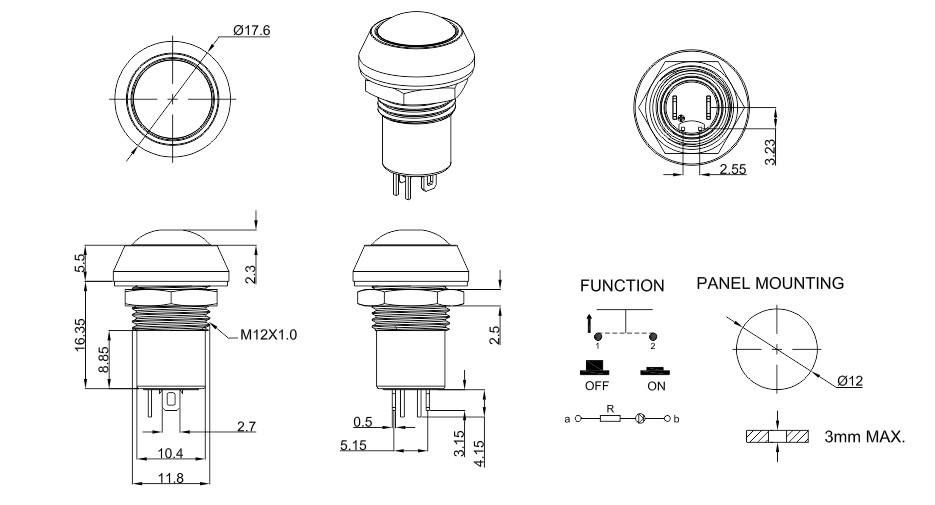

*Product Size                          (Dimensional drawing is for reference only,for detailed specifications,contact us pls.)
Product Application:
  • 1.Electronic lock system;
  • 2.Hotel equipments;
  • 3.Communication medical equipments;
  • 4.Small home appliance;
  • 5.Aerospace ship;
  • 6.Automobile peripheral products

Image of this PBM12 11Z RS NN3 S0 S Metal push button switch SPST OD12 mm with lock or non lock

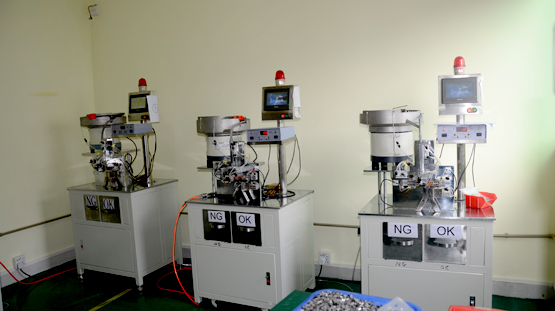

Our Factory  of this PBM12 11Z RS NN3 S0 S Metal push button switch SPST OD12 mm with lock or non lock

Our Service  of this PBM12 11Z RS NN3 S0 S Metal push button switch SPST OD12 mm with lock or non lock



 Certifications of this PBM12 11Z RS NN3 S0 S Metal push button switch SPST OD12 mm with lock or non lock
