PBM16 13Z F PU3 A6 Metal push button switch SPST OD16mm lock with out LED

Product Detail

Description of this PBM16 13Z F PU3 A6 Metal push button switch SPST OD16mm lock with out LED

PBM16-13Z-F-PU3-A6 Metal push button switch SPST,OD16mm lock with(out) LED，200,000 cycles operating life

Parameter of this PBM16 13Z F PU3 A6 Metal push button switch SPST OD16mm lock with out LED

XIAMEN JINBEILI ELECTRONICS CO.,LTD
*Key Specifications	1.Circuit:SPST 2.Current Rating: 3A 3.Voltage Rating: 36V DC 4.Dielectric withstanding voltage: 1500VAC for 1 min 5.Contact Resistance:50m ohm max 6.Insulation Resistance:100M ohm min 7.Operating Force:500gf±150gf 8.Total Travel:1.5mm±0.5mm 9.Operating life:200,000Cycles 10.Recommended IR Reflow(Wave Soldering) Temperature: 260°C 11.Funcition: Momentray ON-OFF 12. Operating Temperature:-20°C~+85°C 13.Degree of protction:IP65

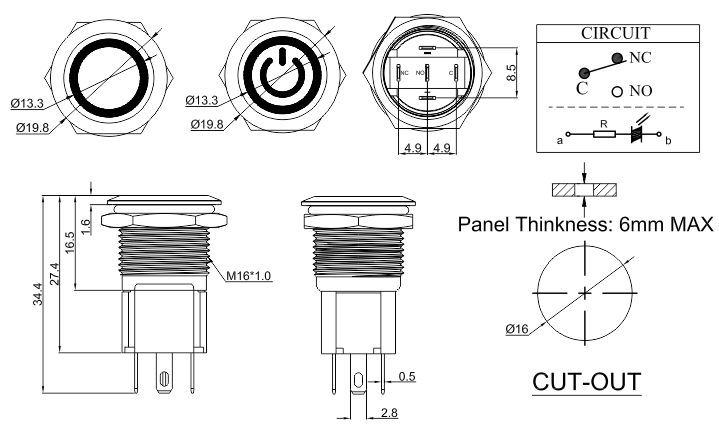

*Product Size (Dimensional drawing is for reference only,for detailed specifications,contact us pls.)
Product Application:	1.Electronic lock system; 2.Hotel equipments; 3.Communication medical equipments; 4.Small home appliance; 5.Aerospace ship; 6.Automobile peripheral products
