Product Descriptions :

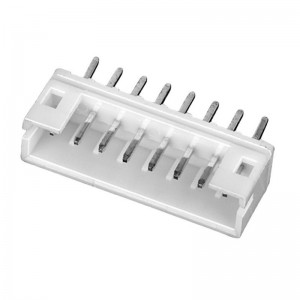

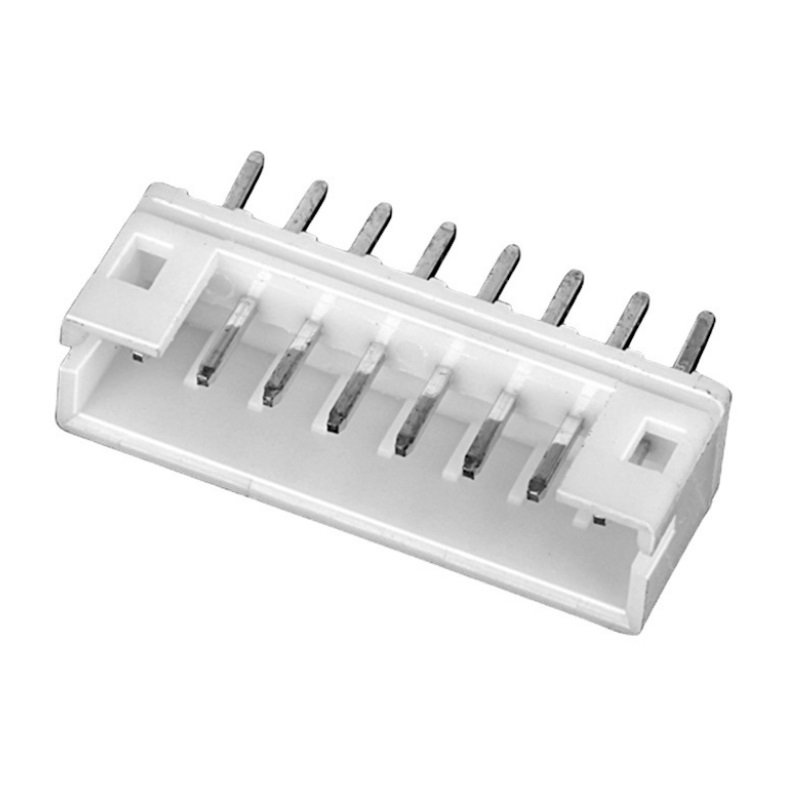

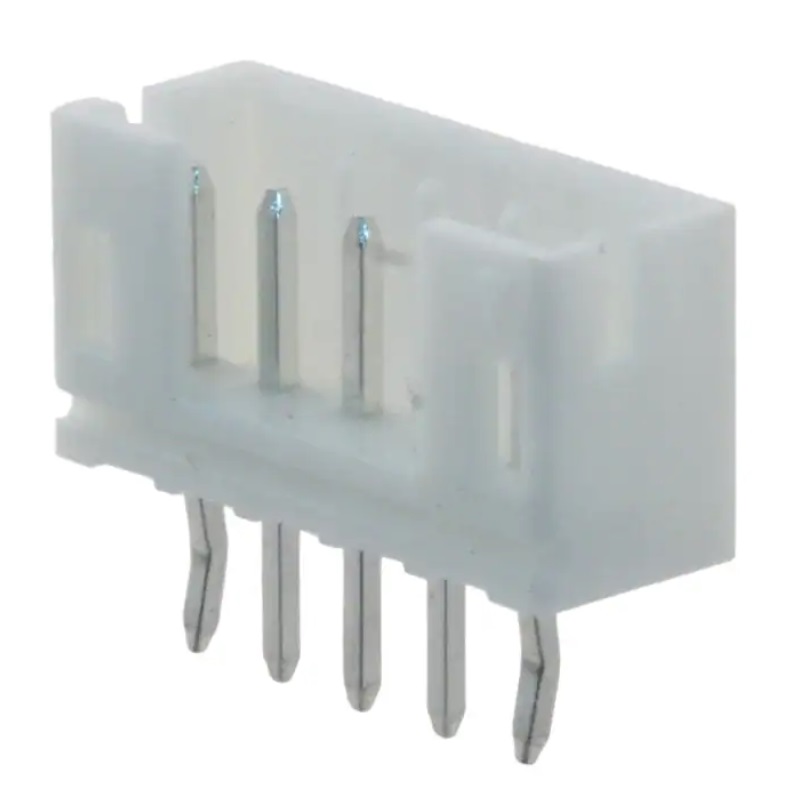

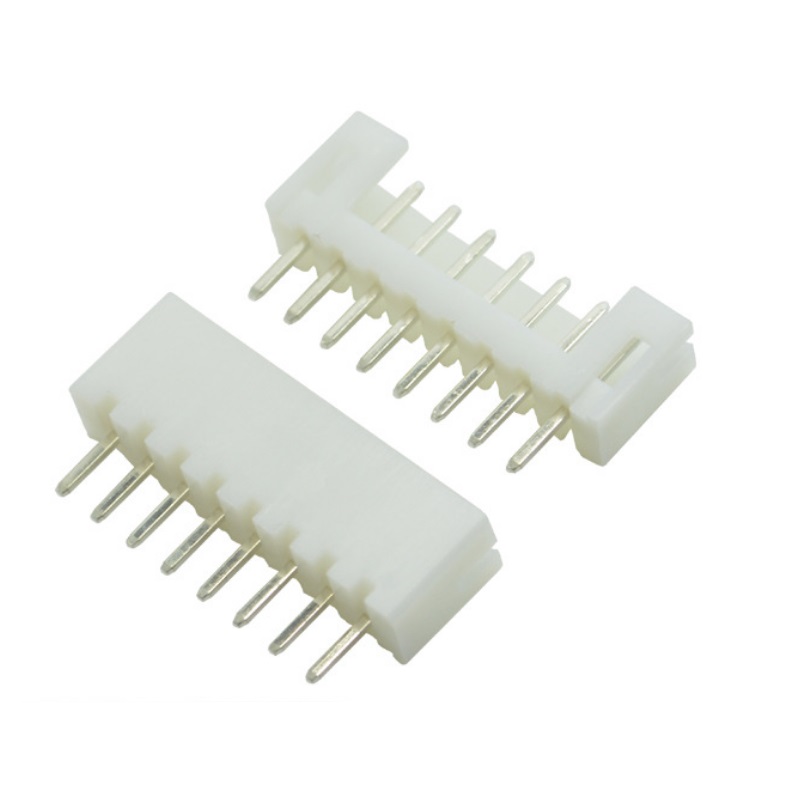

Product name : Connector Header Surface Mount 9 position 0.079″ (2.00mm)
2.0mm pitch disconnectable crimp style connector
MICRO-LATCH 2.0 WTB VERTICAL HEADER ASSY
2.0 mm pitch disconnectable crimp style connectors
post header ass’y vertical type
AMP CT CONNECTOR 2mm PITCH

Model: PH2.0-nA

Features : through hole straight DIP

Applicable wire : AWG #32 to #24

Position Numbers : 02pin to 16pin customized as buyer’s request

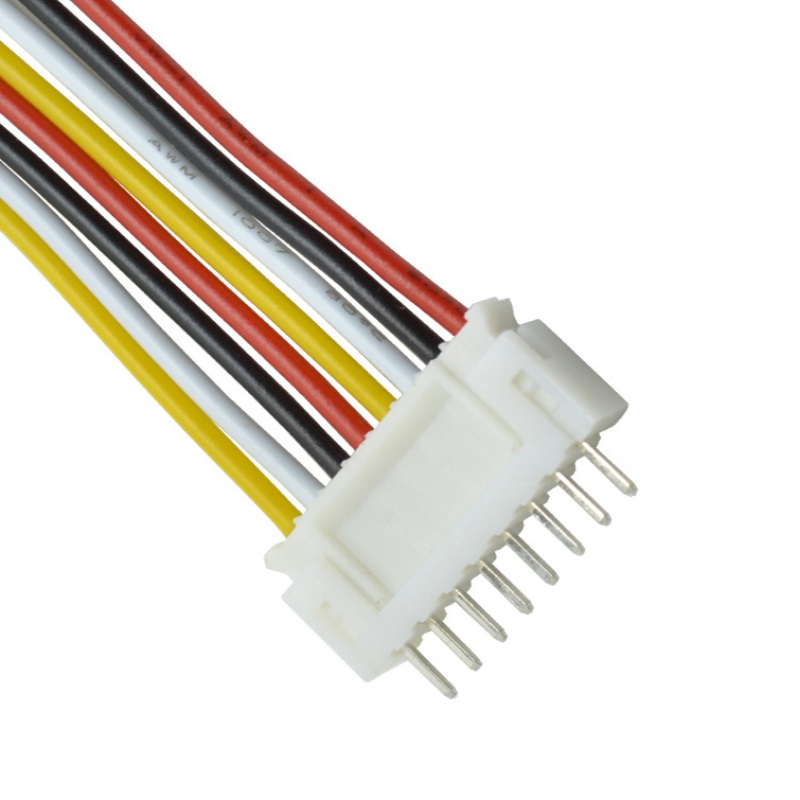

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 2A AC DC (AWG #24)

Contact Resistance: Initial Value 30 mΩ Max

Insulation Resistance: 1000 MΩ Min

Dielectric Strength: AC 800 V for 1 min

Working Temp : -25°C~+85°C

Package : bulk

Replacement part: KWAF-WDS-0220N-01-XXX,KWAF-WDS-0320N-01-XXX,KWAF-WDS-0420N-01-XXX,SWR201-NRTN-S05-SA-WH,2SH-C-08-TS,0532900680,0532900480,2SH-C-07-TS,0532531570,M22-2200445,SWR201-NRTN-S04-SA-WH,0532531170,SWR201-NRTN-S03-SA-WH,SWR201-NRTN-S06-SA-WH,SWR201-NRTN-S08-SA-WH,SWR201-NRTN-S02-SA-WH,1-292132-5

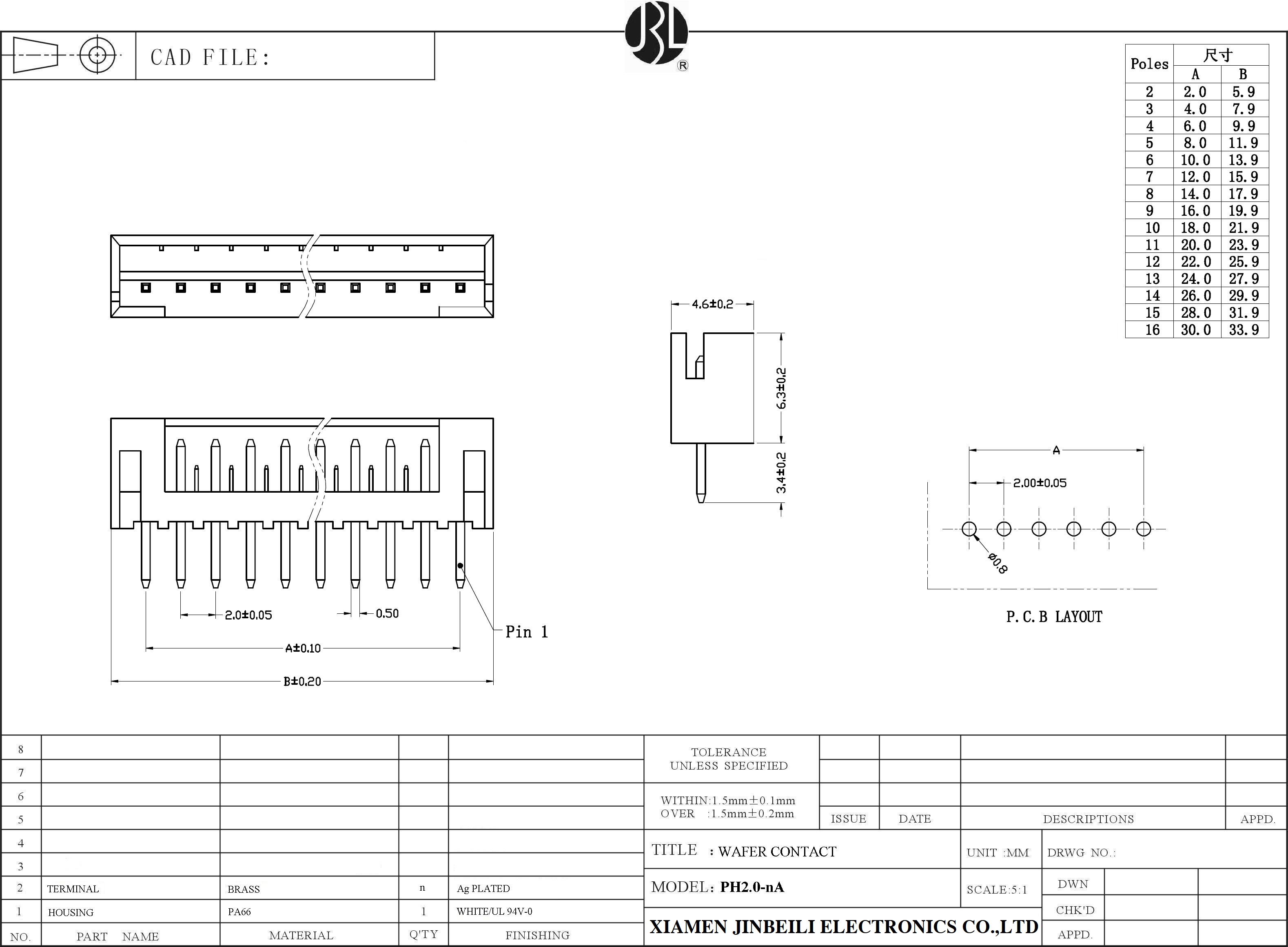

Datasheets :

This is a thin,low-profile 2.0 mm pitch connector 8.0 mm in height after mounting and 4.5 mm in width. it’s designed to meet the demand for high-density connection of internal wires to printed circuit boards. it’s compact,highly reliable and low in cost.
