PH 2.0 mm board to wire cable connector pin 2-16Pin sure face mount vertical SMT

Short Description:

2.00 MM SMT MALE VERTICAL SHROUDED HEADER

2.0 mm pitch disconnectable crimp style connectors


Product Detail

Product Tags

Product Descriptions :

Product name : Connector Header Surface Mount 9 position 0.079″ (2.00mm)
2.0mm pitch disconnectable crimp style connector

Model: PH2.0-LT-nA

Features : Sure face mount Vertical SMT

Applicable wire : AWG #32 to #24

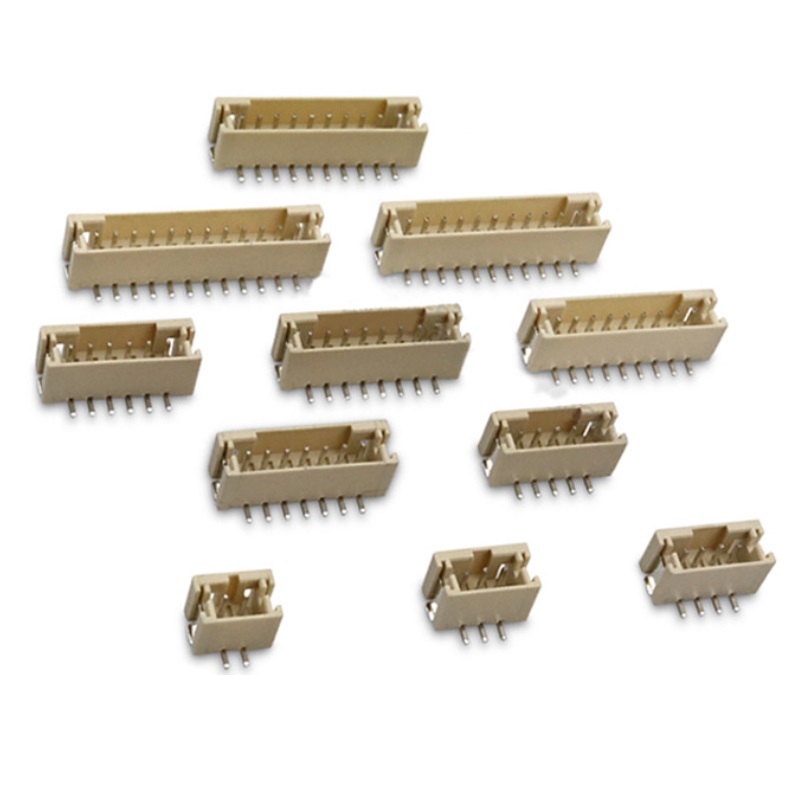

Position Numbers : 02pin to 16pin customized as buyer’s request

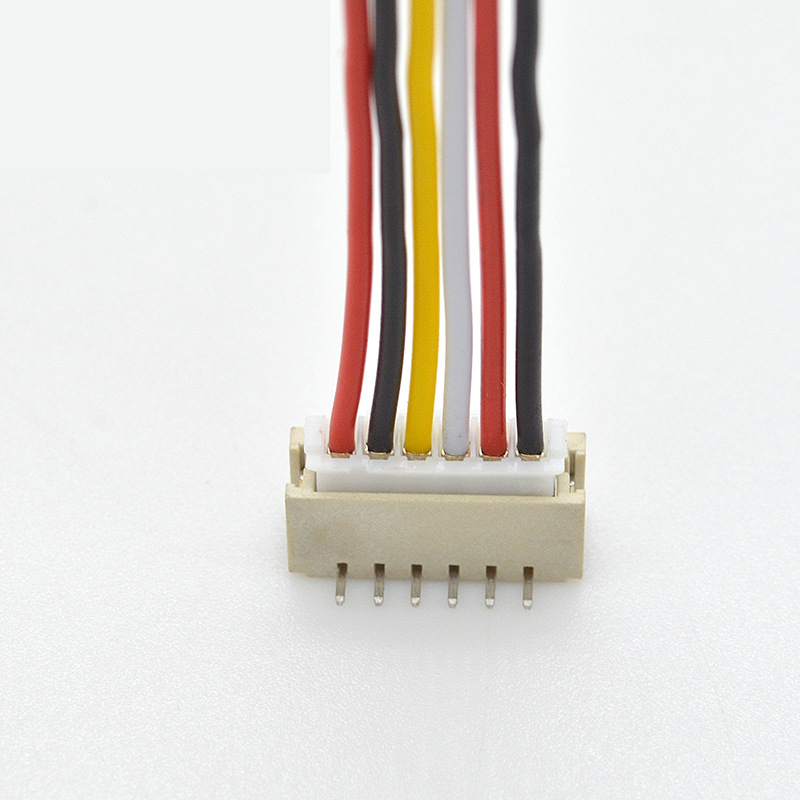

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 2A AC DC (AWG #24)

Contact Resistance: Initial Value 30 mΩ Max

Insulation Resistance: 1000 MΩ Min

Dielectric Strength: AC 800 V for 1 min

Working Temp : -25°C~+85°C

Package : Tape & Reel (TR)

Replacement part: B9B-PH-SM4-TB(LF)(SN),0554600872,1-1775470-0,B10B-PH-SM4-TBT(LF)(SN),DF3E-6P-2V(24),1775470-4,1-1775470-2,2012010040,DF3E-12P-2V(24),B6B-PH-SM4-TBT(LF)(SN),B15B-PH-SM4-TBT(LF)(SN),292174-4,620303124022,1775470-6,1775470-4,1-1775470-2,2012010040,1775470-8,

Datasheets :

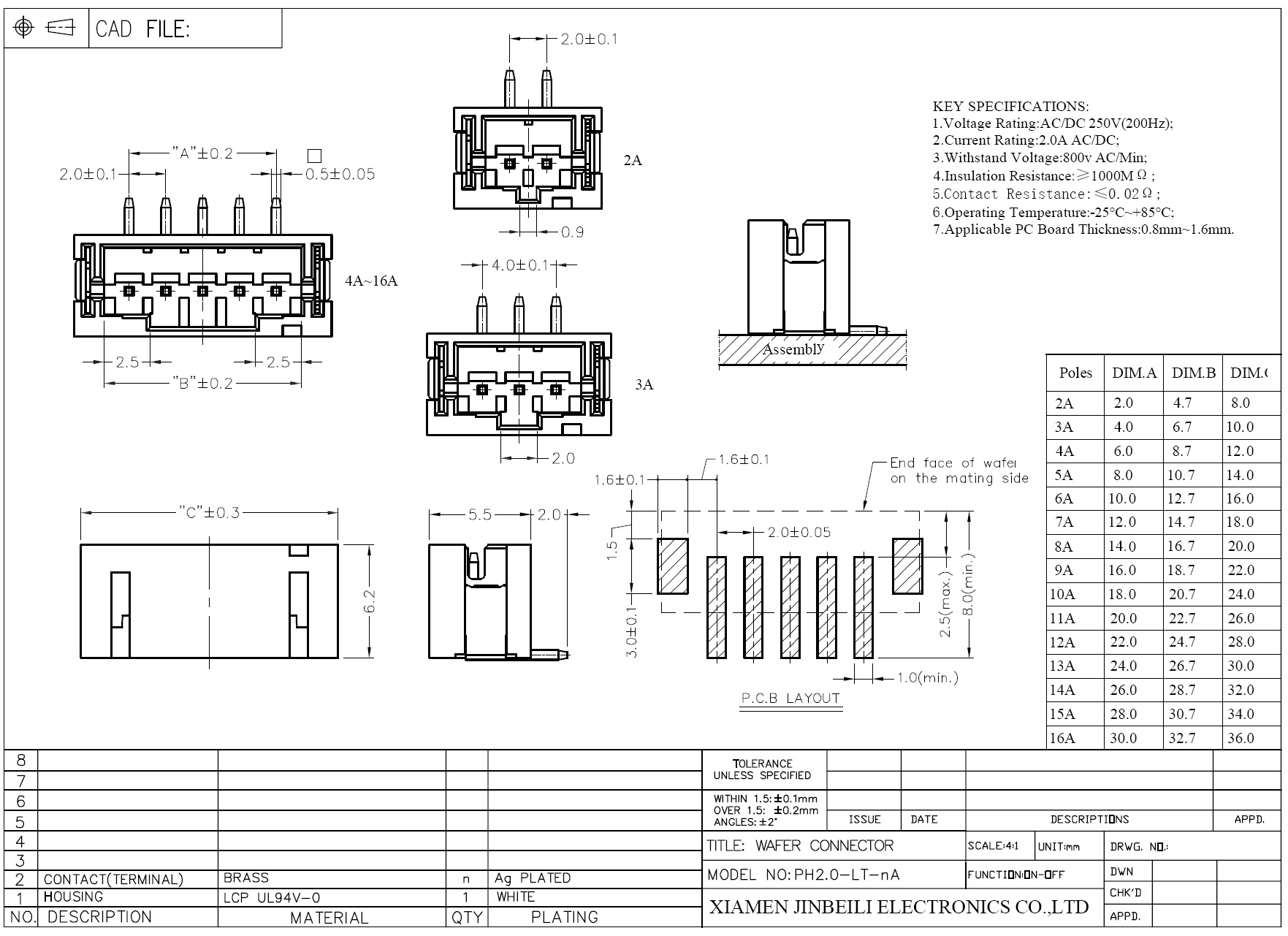

PH2.0mm connector pin Horizontal 2-16Pin sure face mount vertical SMT 13

This is a thin,low-profile 2.0 mm pitch connector 8.0 mm in height after mounting and 4.5 mm in width. it’s designed to meet the demand for high-density connection of internal wires to printed circuit boards. it’s compact,highly reliable and low in cost.
