Product Descriptions :

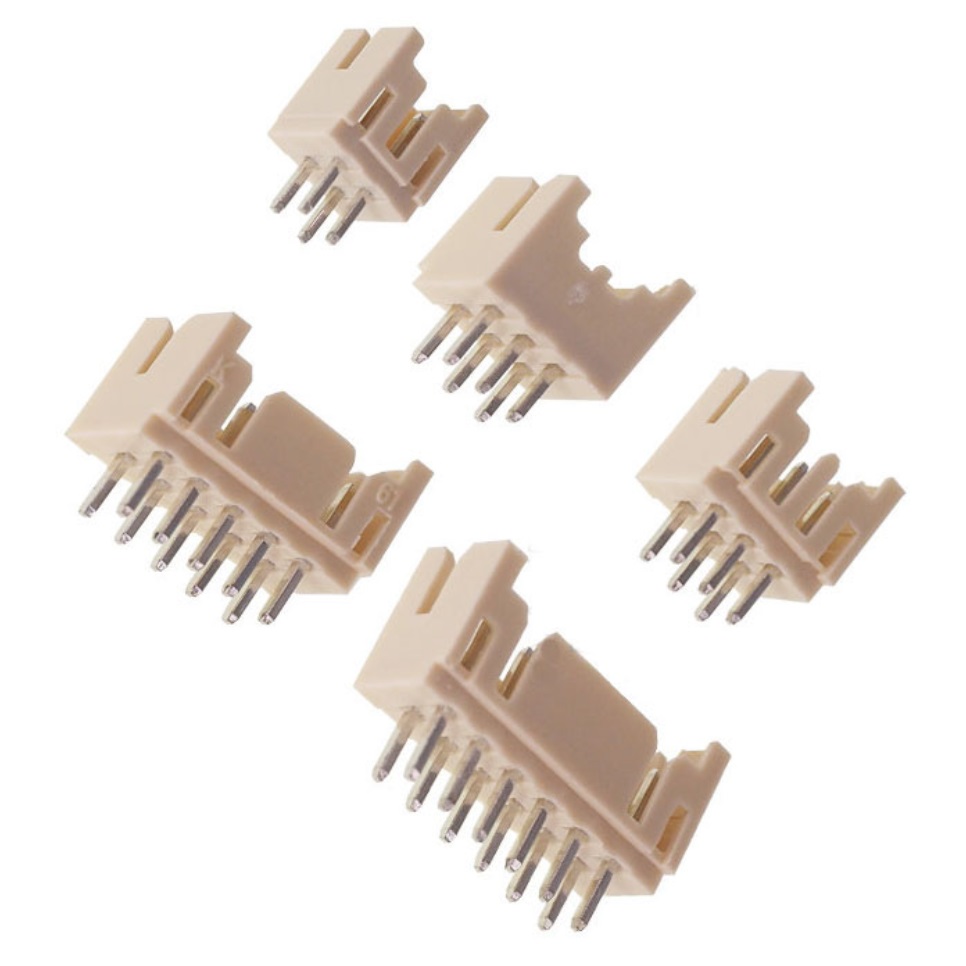

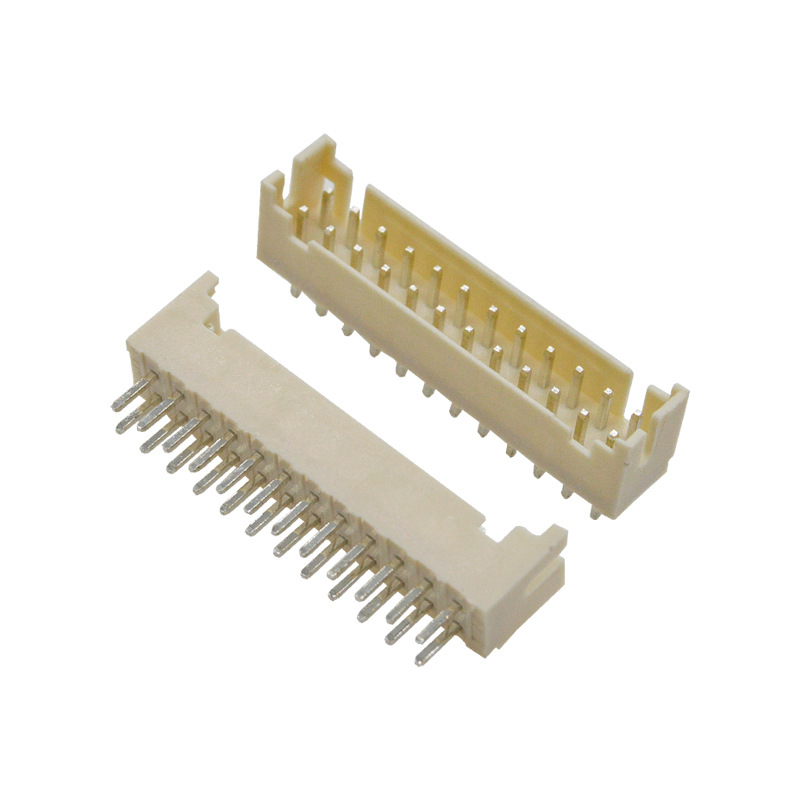

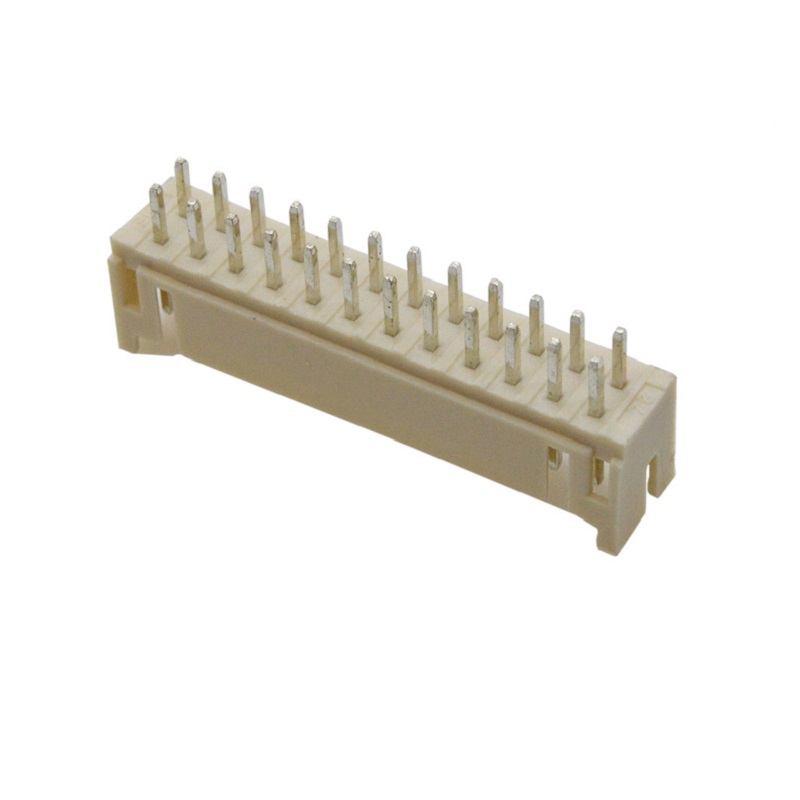

Product name : Connector Header through hole Right angle 8 position 0.079″ (2.00mm)
PHD CONNECTOR 2.0 MM PITCH DISCONNECTABLE CRIMP STYLE CONNECTORS
G861 SERIES PROTECT HEADER 2.0 PITCH STRAIGHT PCB MOUNT W-POST
2.0 mm pitch disconnectable crimp style connectors

Model: PHD2.0-2*nA

Features : This is a 2.0 mm pitch,crimp style,dual-row,wire to board connector. it’s designed to meet the demand for high-density and low-profile connection.
*Compact
*Reliable contacts
*Fully shrouded header

Applicable wire : AWG #32 to #24

Position Numbers : 04 pin to 44 pin customized as buyer’s request

Style : Board to Cable/Wire

Contact Type : Outer Shroud Contact

Fastening Type: Push-Pull

Current Rating (Amps) : 3 A AC DC (AWG #24)

Contact Resistance: Initial Value 30 mΩ Max

Insulation Resistance: 1000 MΩ Min

Dielectric Strength: AC 800 V for 1 min

Working Temp : -25°C~+85°C

Package : bulk

Replacement part: 62402421722,0348260161,S18B-PHDSS(LF)(SN),S12B-PHDSS(LF)(SN),1-1470108-2,SWR204-NRTN-D02-RA-GA,G86112121S2HR

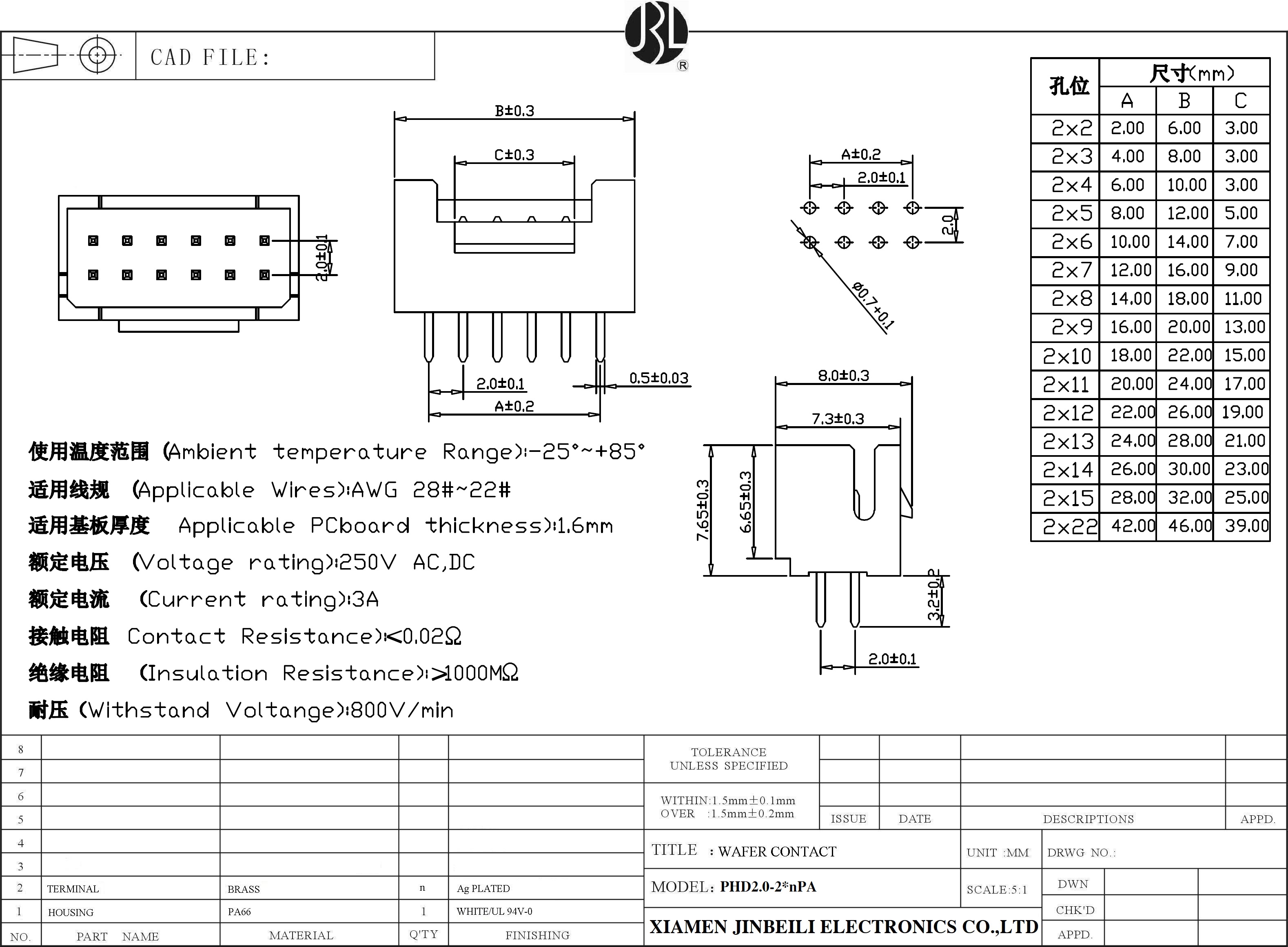

Datasheets :
