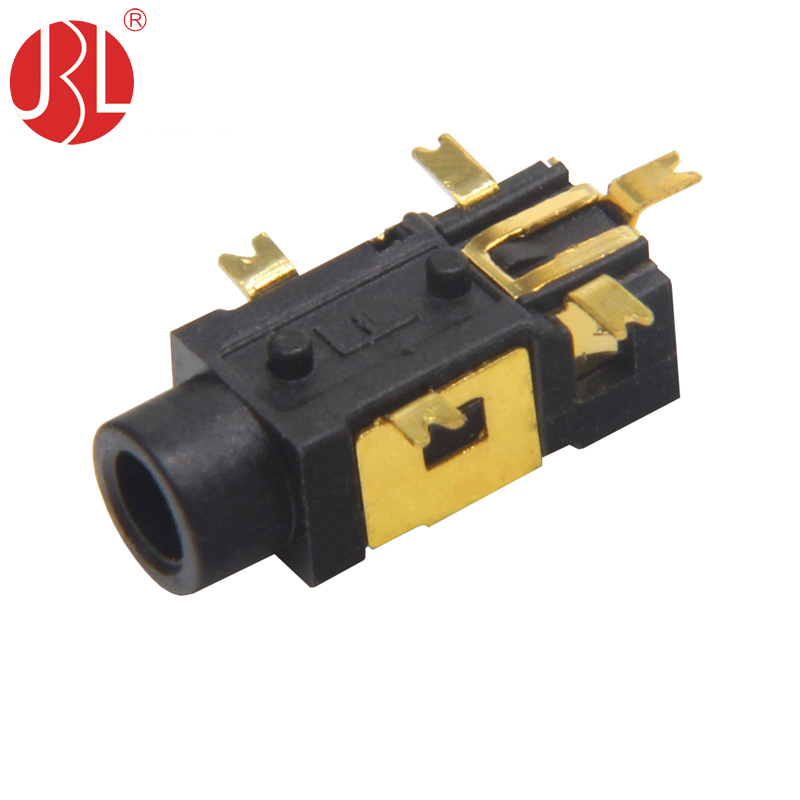

The 2.5mm SMD right-angle audio jack is a versatile and compact connector designed for use in various phone and electronic devices. It offers two conductor number options: a 2-pole TS (Tip, Sleeve) jack for mono audio signals and a 3-pole TRS (Tip, Ring, Sleeve) jack for stereo audio signals, providing flexibility to meet different application needs.

The surface-mount design (SMD) allows for easy integration into circuit boards, reducing both space and assembly complexity. The right-angle orientation further aids in space-saving and can improve the overall aesthetics and functionality of the device.

This jack can serve as an alternative to CUI Same Sky jacks, including SJ2-25102A-SMT-TR, SJ2-25102B-SMT-TR, SJ2-25103A-SMT-TR, and SJ2-25103B-SMT-TR, offering similar performance and reliability while potentially providing cost savings or better compatibility with specific applications. Its compact size and robust construction make it ideal for use in space-constrained environments, such as smartphones, tablets, and other portable electronic devices.

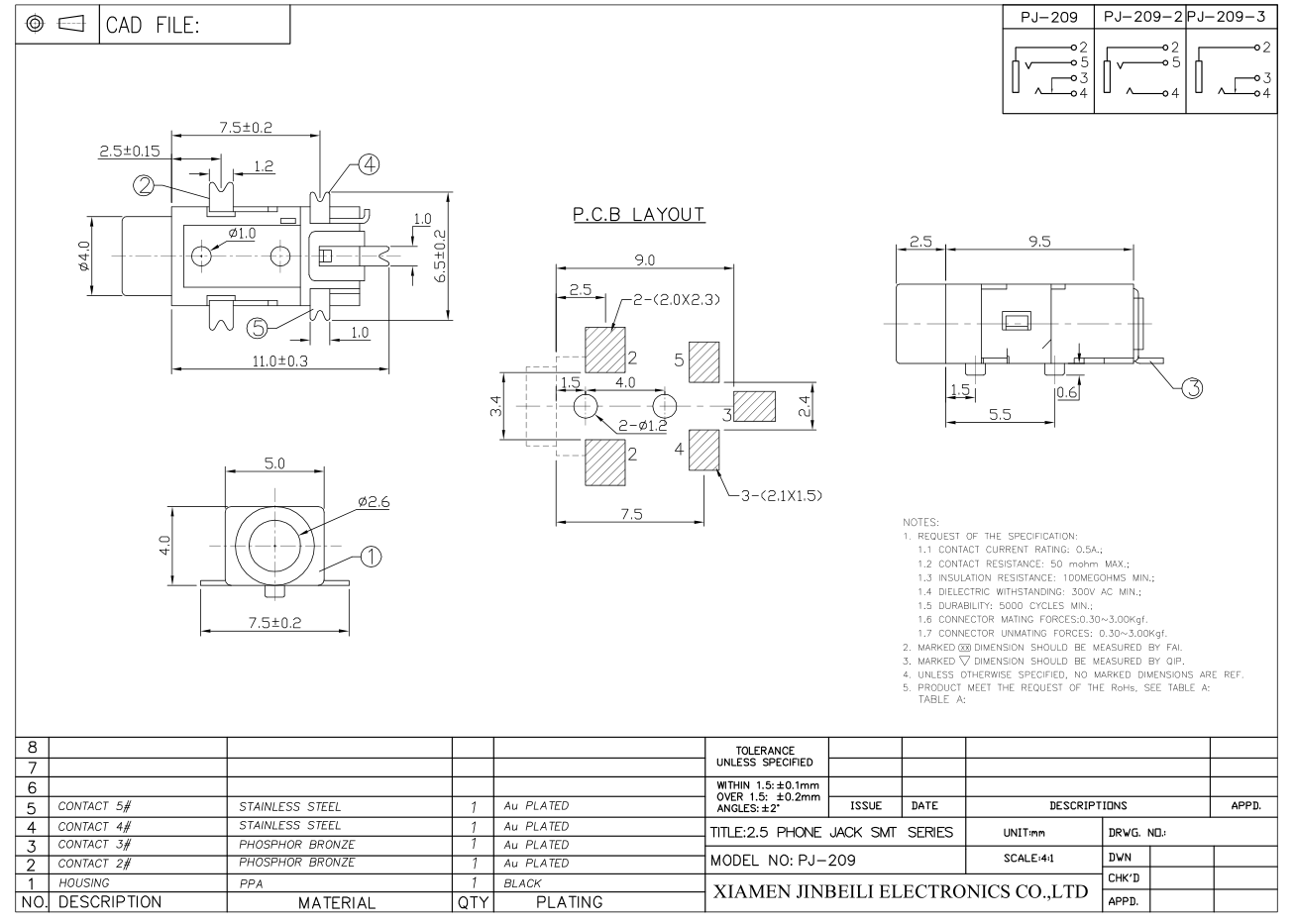

Datasheets :
