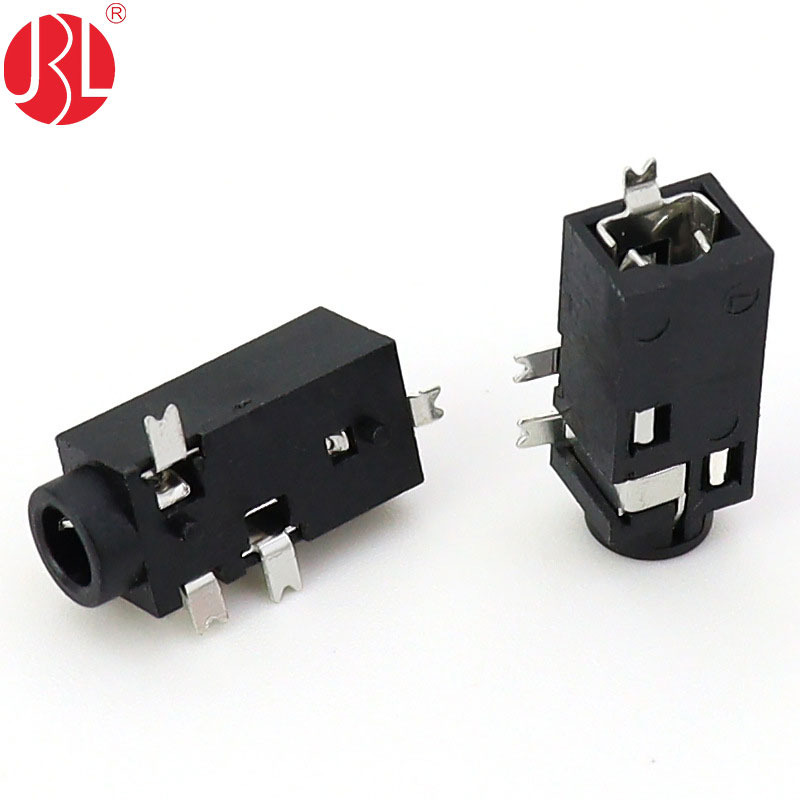

The 2.5mm SMD right-angle audio jack is a compact and versatile connector designed for use in phones and other audio devices. It features a sleek, low-profile design that allows for easy integration into circuit boards, making it an ideal choice for space-constrained applications.

This audio jack comes with two conductor options: a 3-pole TRS configuration and a 4-pole TRRS configuration. The TRS (Tip, Ring, Sleeve) version supports stereo audio and a microphone, while the TRRS (Tip, Ring, Ring, Sleeve) version offers additional functionality, such as the ability to control playback or answer calls.

As an alternative to the CUI Same Sky audio jacks SJ-2503A-SMT-TR and SJ-2504A-SMT-TR, this 2.5mm audio jack provides similar performance and reliability but may offer cost savings or other benefits. Its right-angle orientation allows for a neat and tidy cable management, minimizing clutter and improving aesthetics.

Overall, this 2.5mm SMD right-angle audio jack is a reliable and cost-effective solution for connecting audio devices, making it a great choice for a wide range of applications.

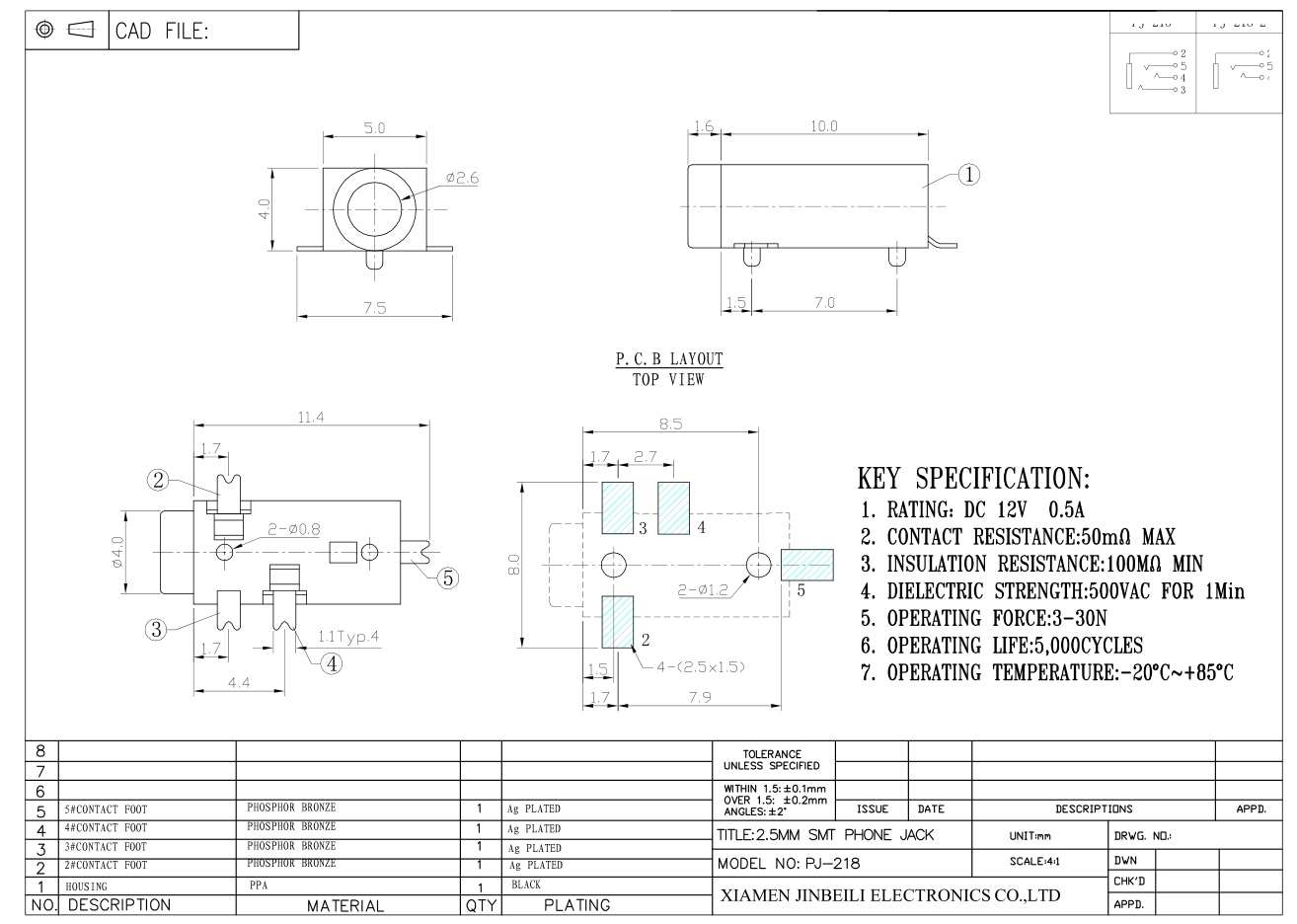

Datasheets :
