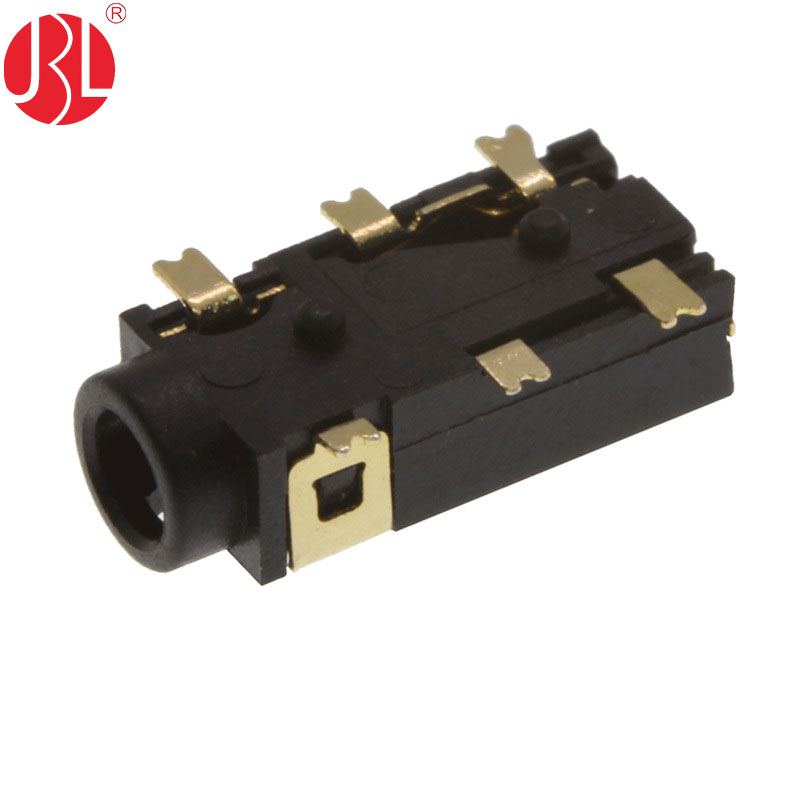

The 2.5mm SMD Right Angle 4 Poles TRRS Jack is a compact and versatile audio jack designed for phone connectivity. Its surface-mount design (SMD) allows for a sleek and secure installation, perfect for space-constrained applications. The right-angle orientation makes it ideal for use in devices where a straight jack would protrude awkwardly. With four poles, it supports TRRS (Tip, Ring, Ring, Sleeve) configurations, enabling the transmission of stereo audio as well as additional functionalities like microphone input.

This jack serves as a direct alternative to several popular phone connectors, including CUI Same Sky models SJ2-25414A-SMT-TR to SJ2-25414D-SMT-TR and Adam Tech models ASJ-145L-I-T/R to ASJ-145L-D-T/R. Its compatibility with these connectors ensures seamless integration into existing designs, making it a reliable and convenient upgrade or replacement option.

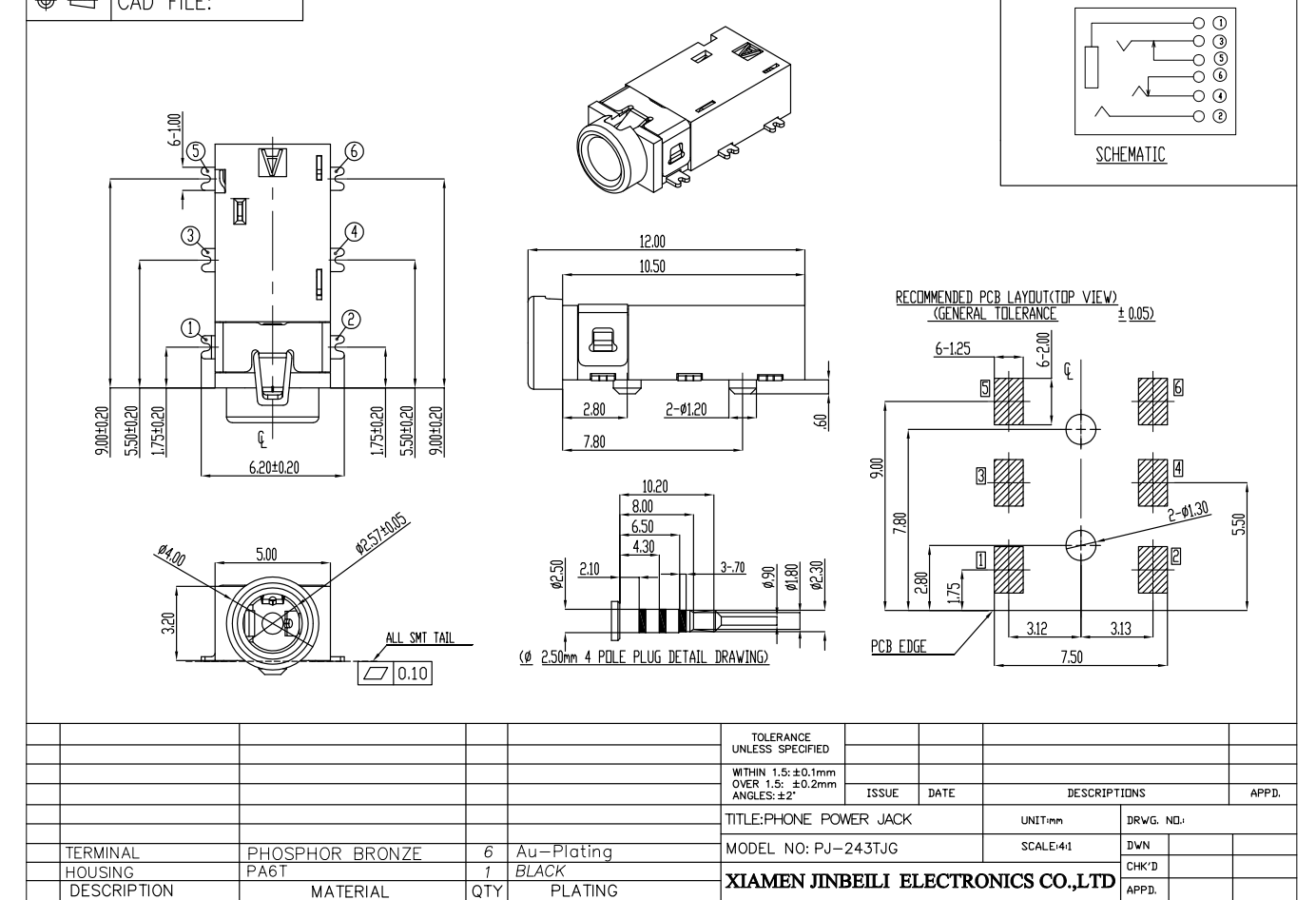

Datasheets :
