PJ-301BM Panel Mount Mono Jack 3.5mm

Short Description:

M6 Bulkhead Panel Mount Mono Jack TS 2 Conductors Solder Terminals


  • Item: Audio Jack 3.5mm
  • Mounting: Panel Mount Bulkhead M6
  • Position: 2 Conductors ( TS )
  • Power Rated: DC30V 0.5A
  • Terminals: Solder Terminals
  • Product Detail

    Product Tags

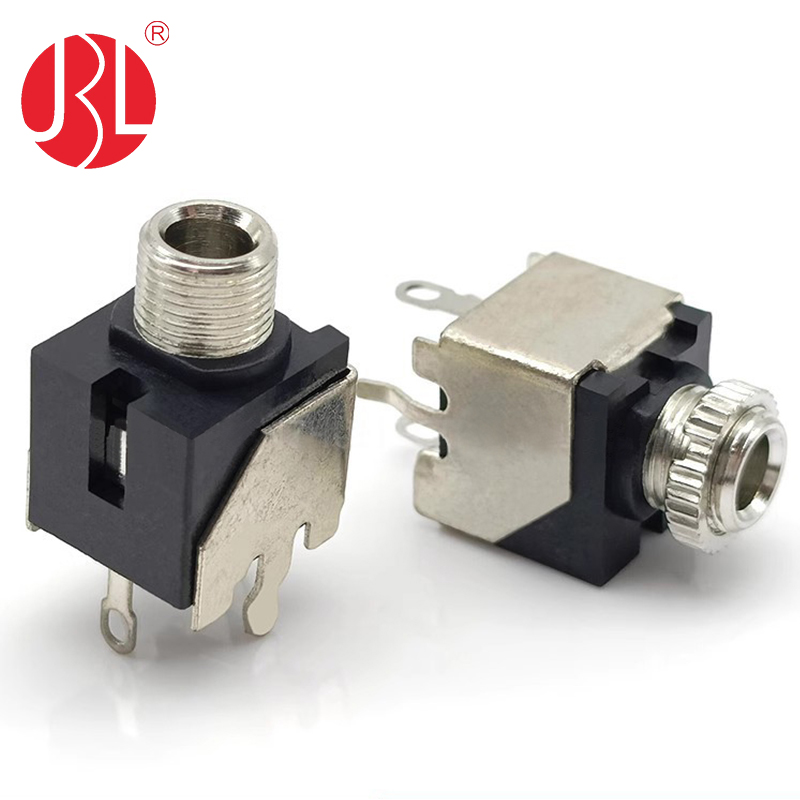

    This Mono Jack 3.5mm is a reliable audio connector featuring a panel mount M6 bulkhead design. With its 2-conductor configuration, it is specifically designed for mono audio signals. The panel mount M6 bulkhead type allows for easy and secure installation through a panel or bulkhead.

    The Mono Jack includes solder terminals for easy and reliable electrical connections. Additionally, it offers options for knurled nuts and hex nuts, providing a secure and stable mounting solution. A unique feature of this Mono Jack is its inclusion of a switch, which allows for easy control of the audio signal.

    Overall, this Mono Jack 3.5mm is a versatile and durable audio connector suitable for a wide range of applications, including portable devices, audio interfaces, and more. Its robust construction and high-quality materials ensure reliable performance and longevity.

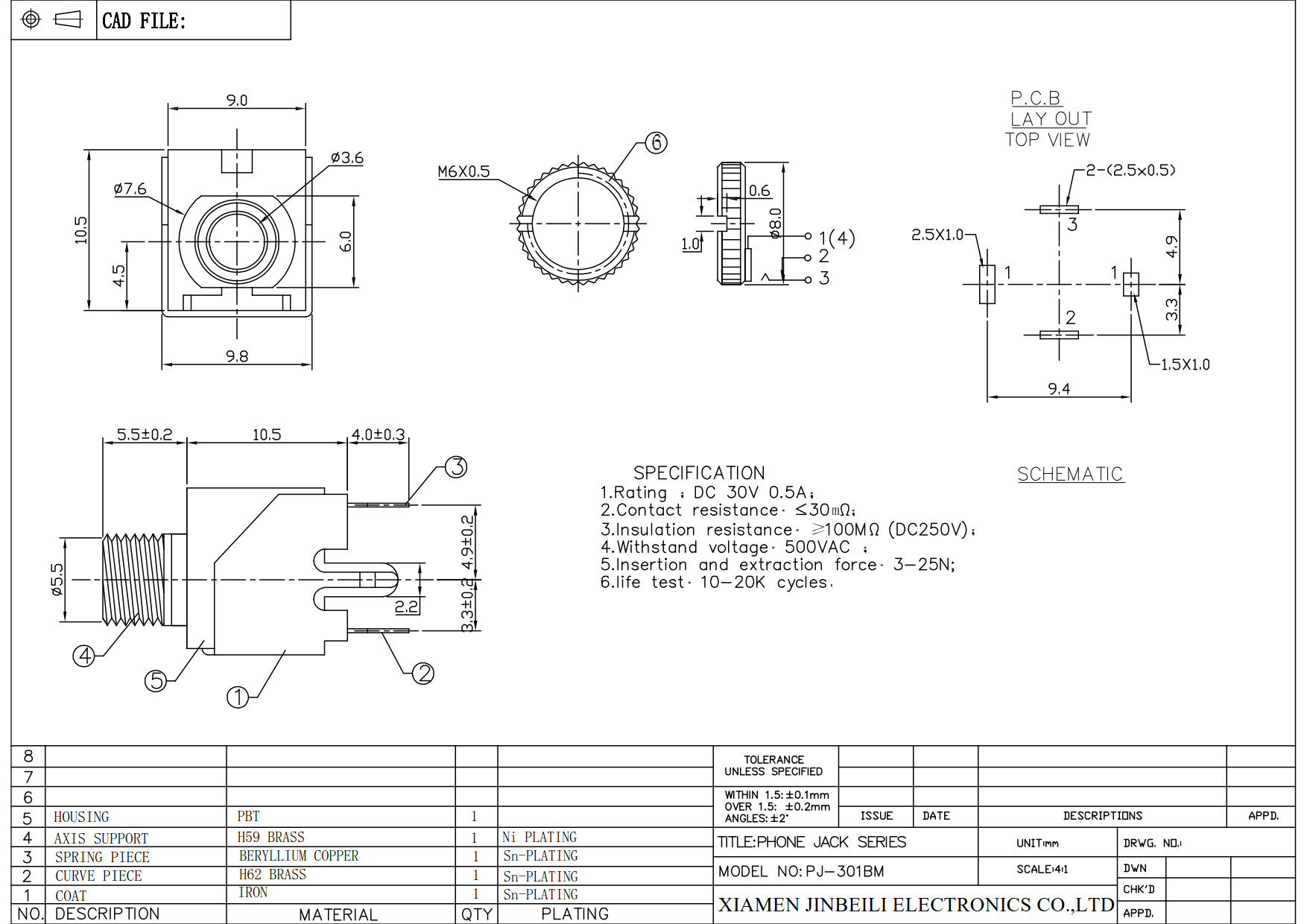

    PJ-301BM (1)www.jbl-ec.com
